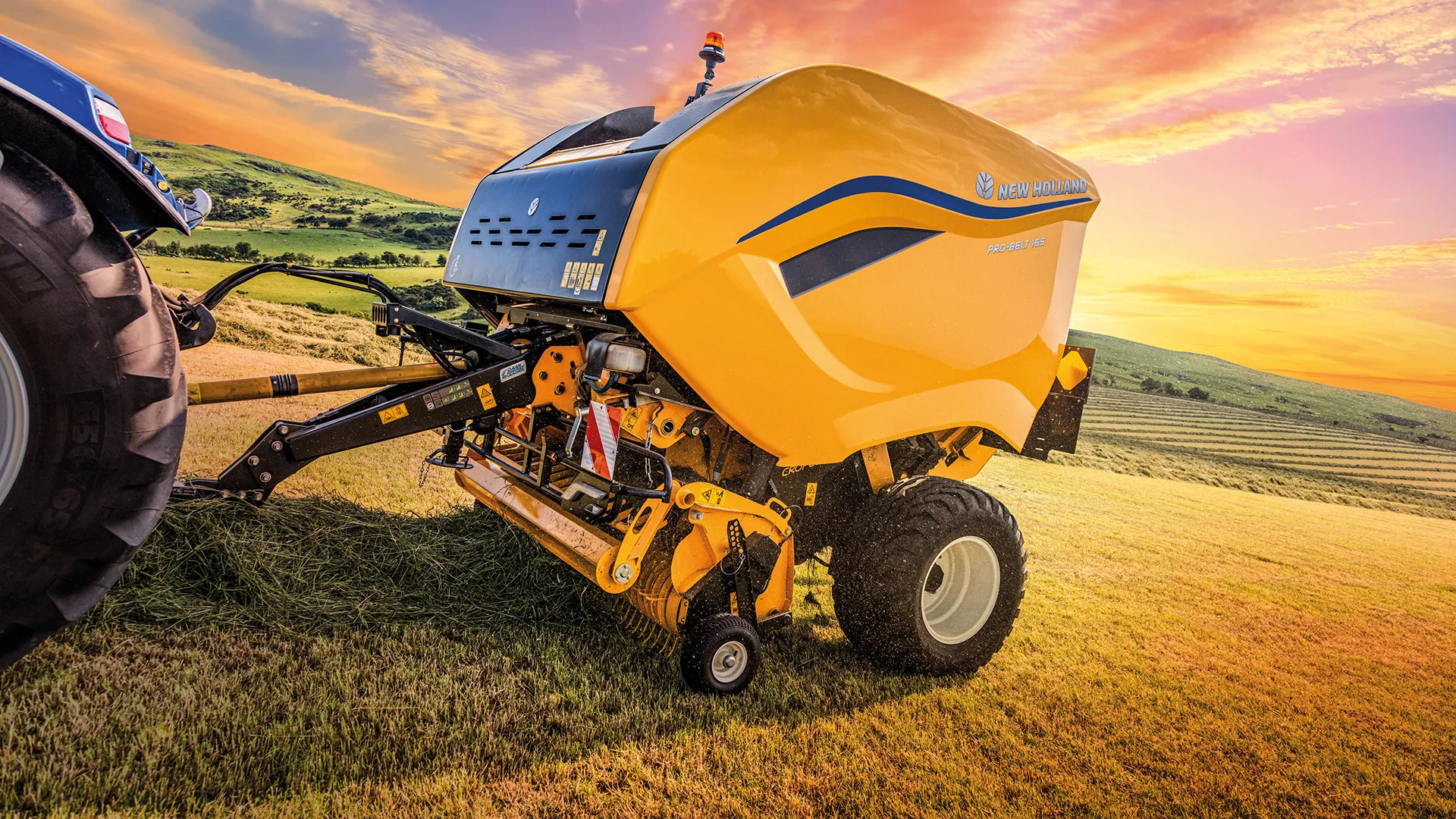

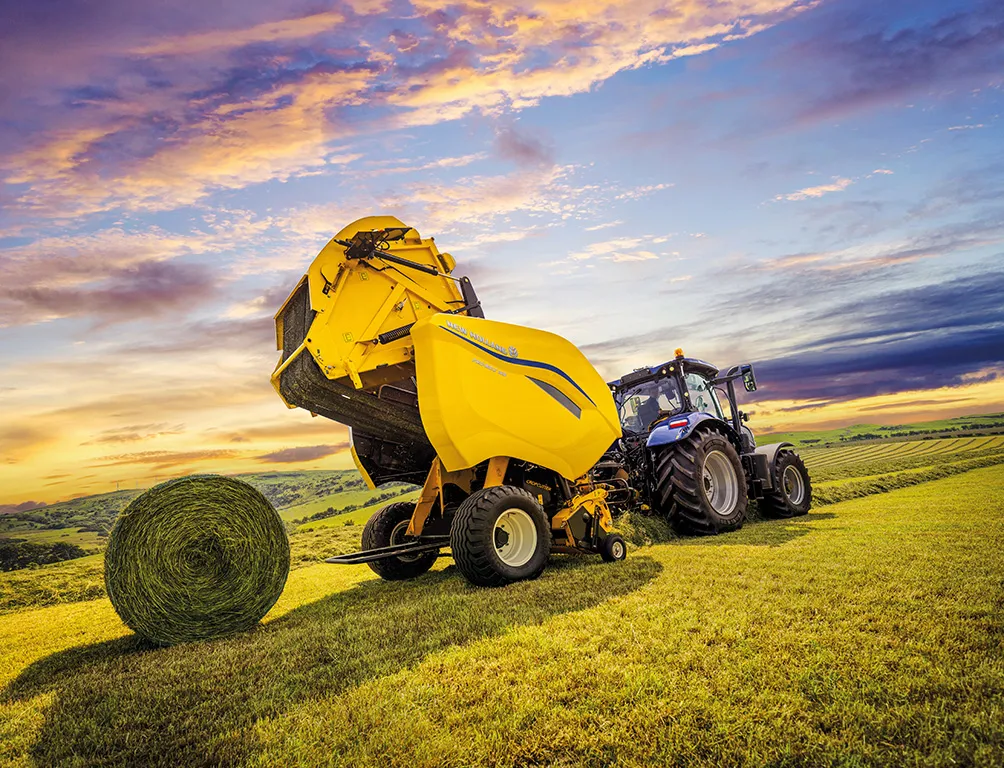

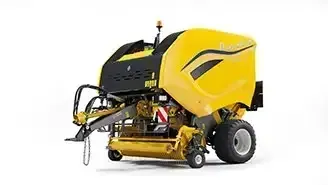

PRO-BELT™

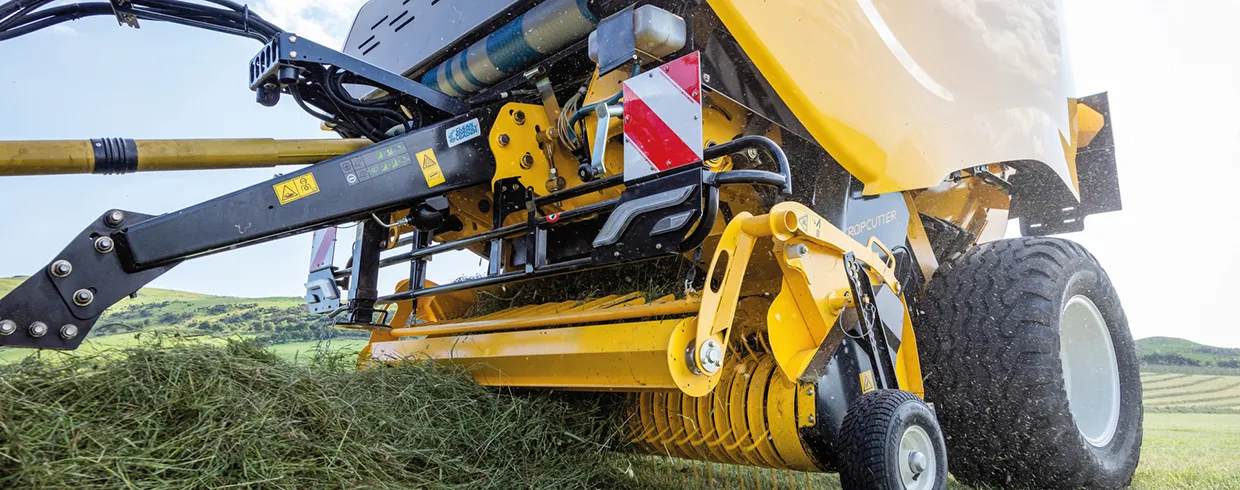

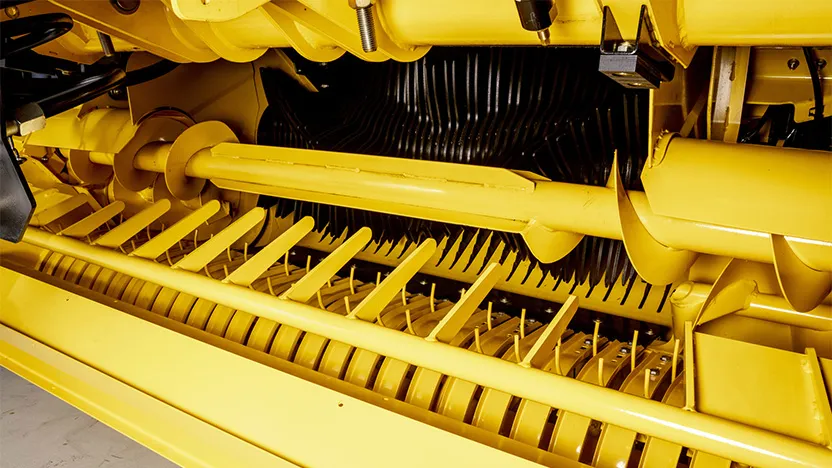

A heavy weight formed steel roller windguard pre-compresses windrows without bunching ensuring a more positive pickup tine engagement. Crop driven it's fully adjustable to match in-field conditions and it's continual rotation delivers a smooth even crop flow over the complete pickup for unparalleled capacity.

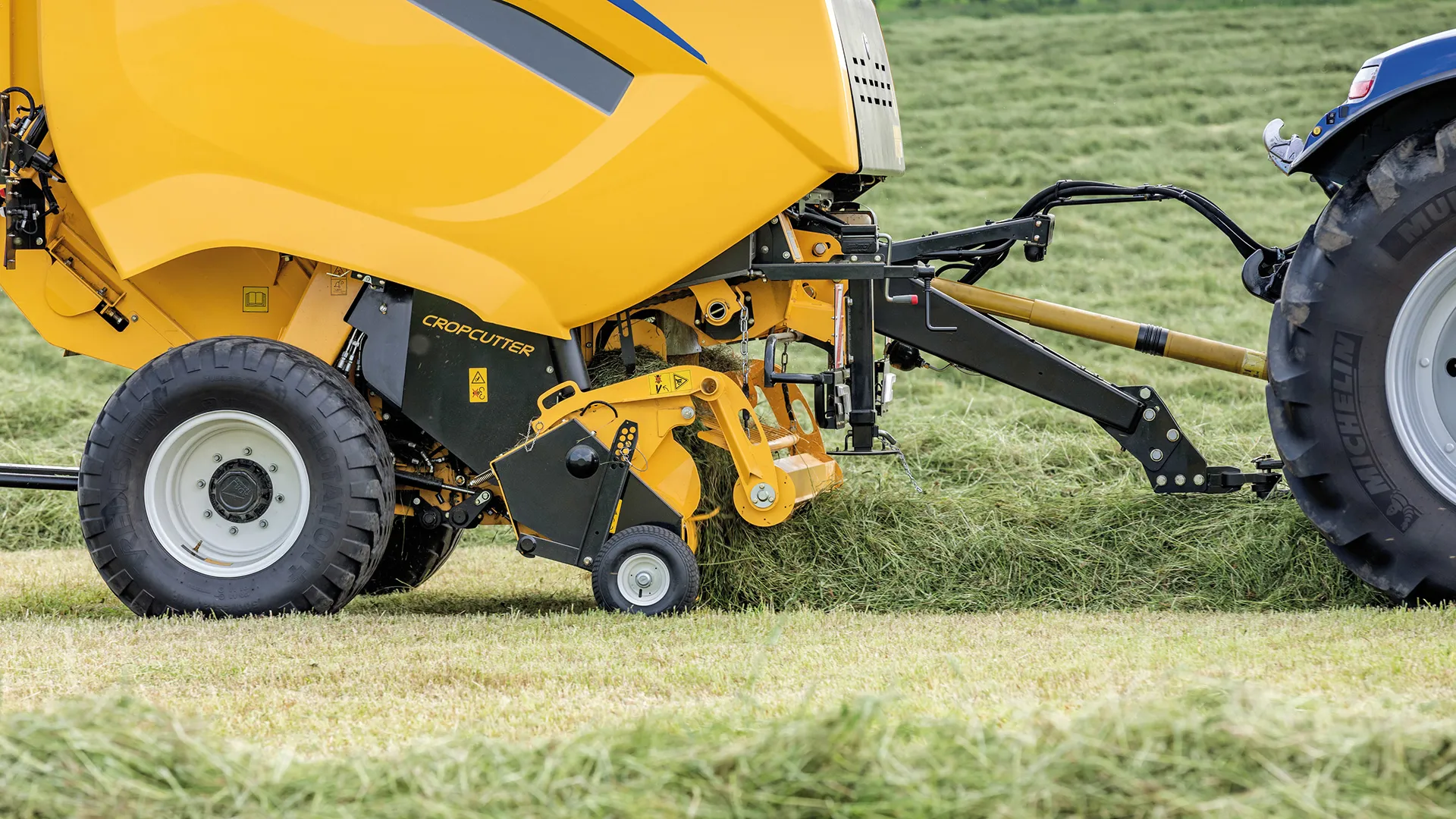

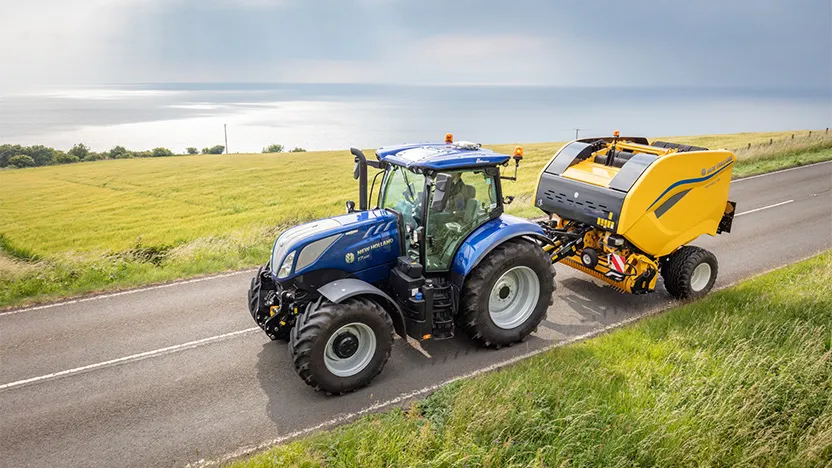

The castoring gauge wheels quickly transform the Pro-Belt baler from transport to field mode by simply swivelling into position. No tools. No need to remove. No hassle. What’s more, when in use, they assist tight turning on the headlands and prevent productivity-impacting scrubbing.

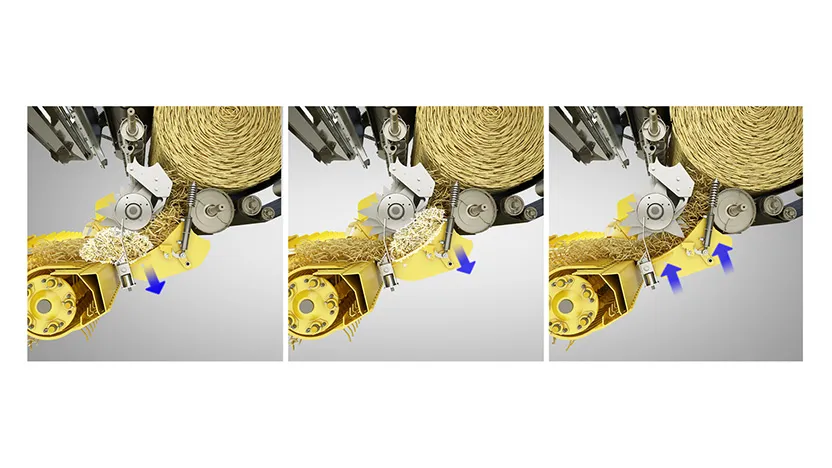

The automatic ActiveDrop™ floor system senses when the load in the pick-up becomes to great for the rotor, and automatically drops the floor to clear potential plugs. This ensures continuous baling, without the need to stop.

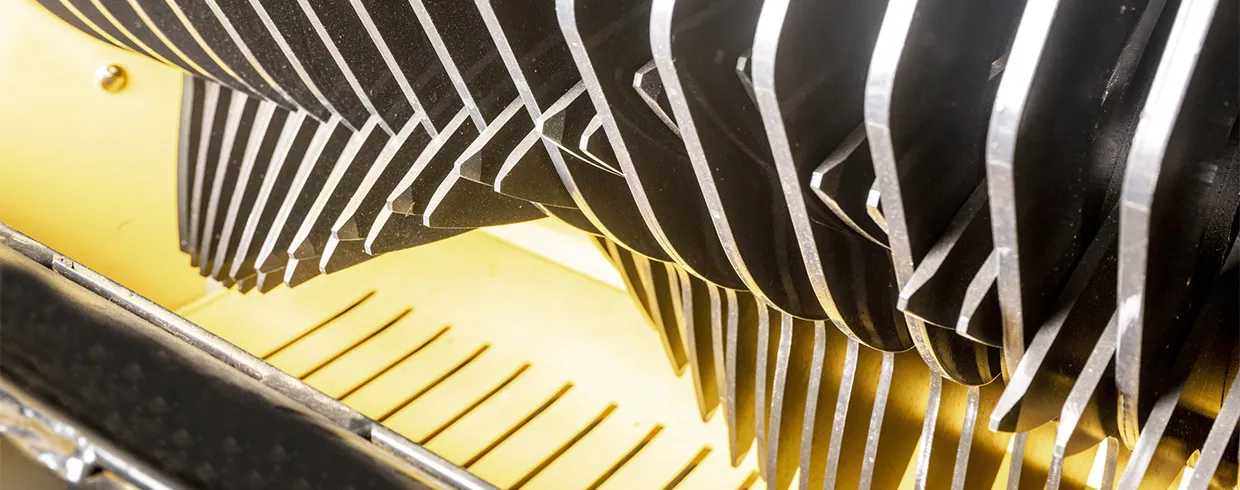

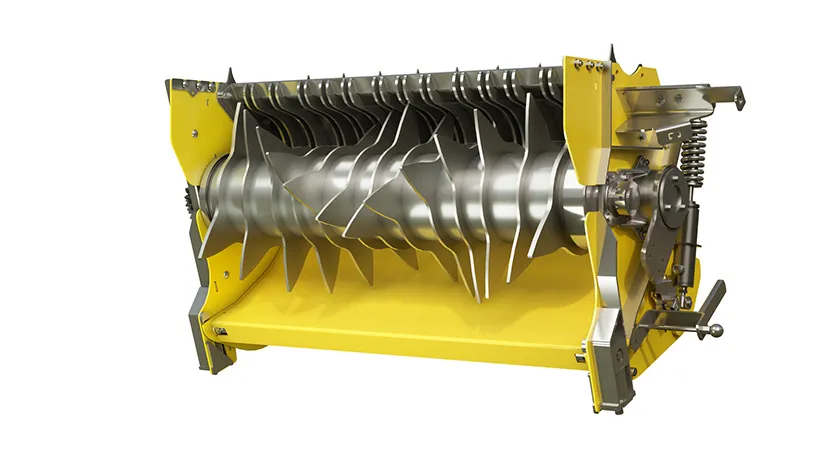

All Pro-Belt Balers come standard with the renowned SuperFeed™ rotor. As an option a med cut 13 or short cut 25 knife CropCutter™ system is now available. Each individual knife has a paired rotor fingers per knife, guarantees a controlled cutting action and superior cutting performance. On 25 knife CropCutter™ units knife selection can be made between all 25, 12 only or 13 only. Finally an optional hard-faced knife kit is available for a extended long lifetime.

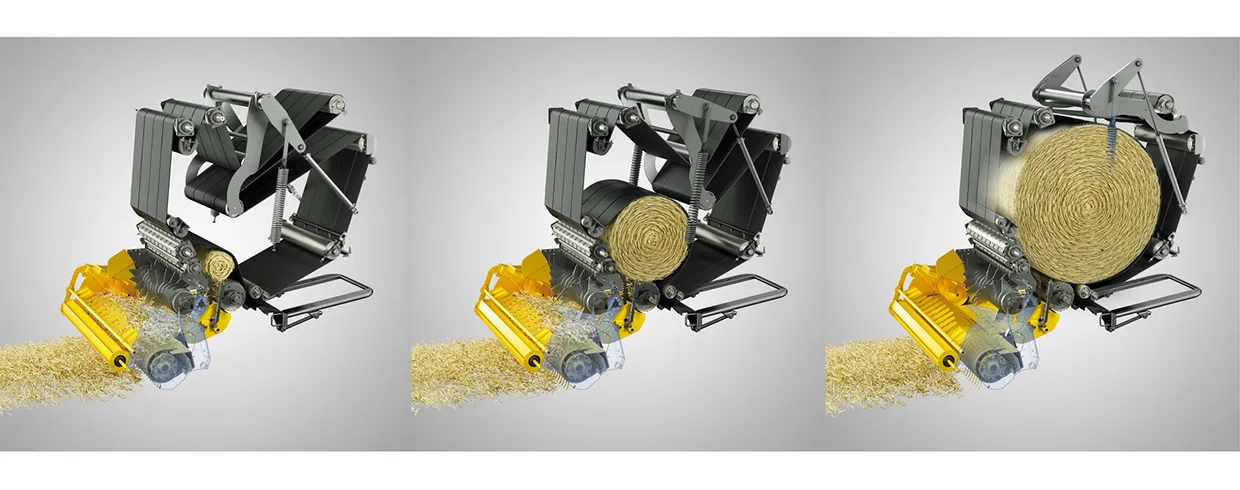

The fixed rollers generate an aggressive rolling action and when combined with the belt angle, this delivers quicker, tighter core formation for denser bales. The variable chamber technology means that operations can vary the size of the bale produced in 5cm increments, from 90cm right up to 165 or 190cm to enhance baling flexibility.

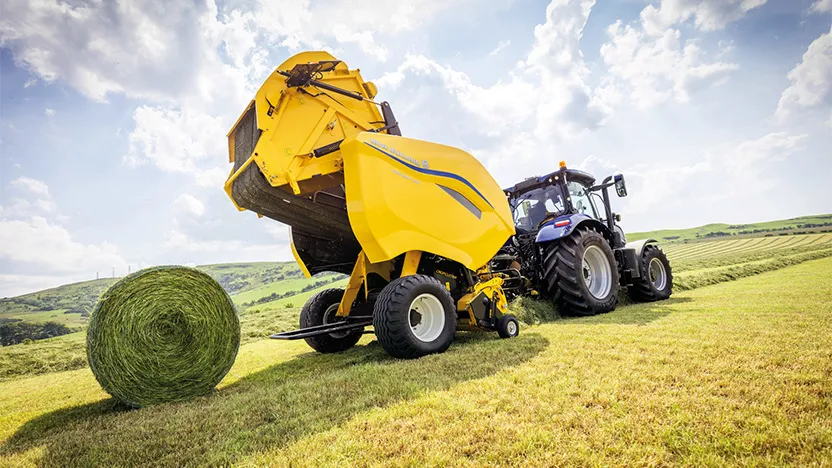

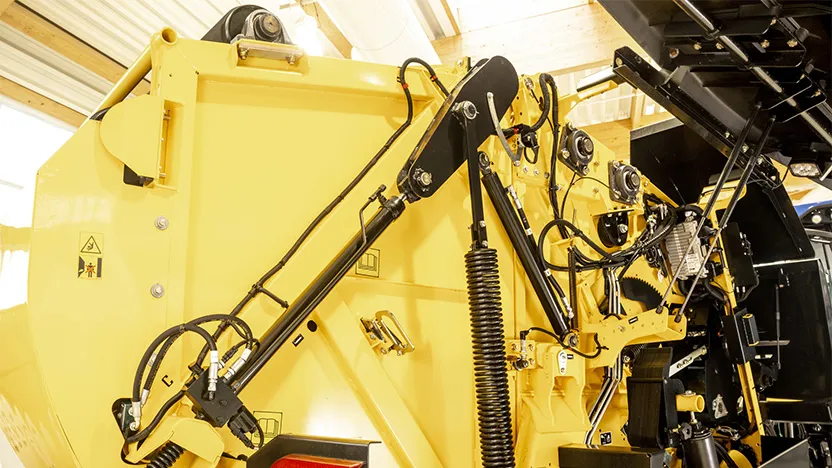

The intuitive, in cab, bale density control system can cater for varying crop conditions and bale end uses requirements while on the move. Operators can adjust bale density in 10 bar increments from the cab monitor. The actual bale density is displayed on the monitor and users can set different core and outer layer densities. Lower core density is ideal for hay baled in marginal conditions which needs to breathe or will be used for feed. High density cores are ideal when extensive handling is required.

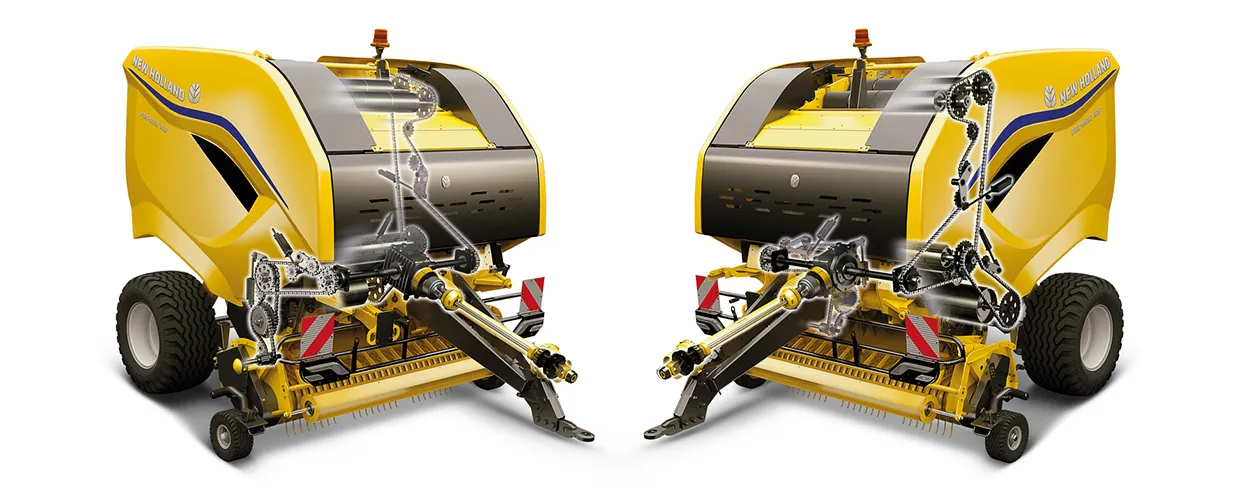

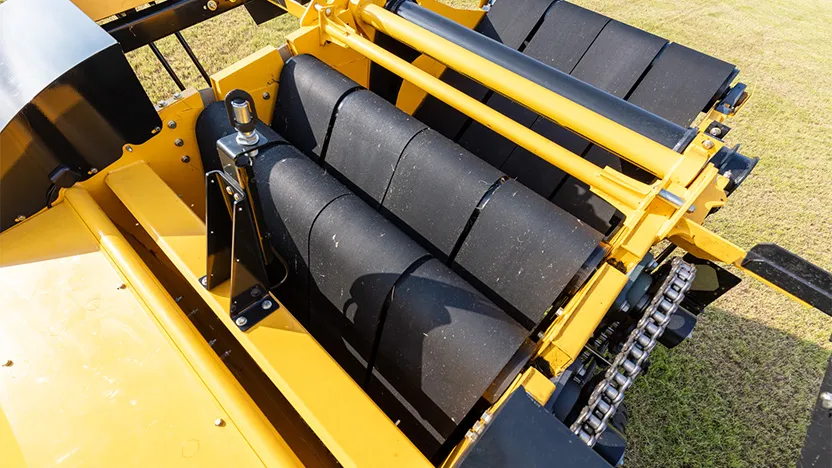

The twin belt drive, means that double the amount of belts are in contact with the drive which greatly improves power transfer and increase performance in any baling condition.

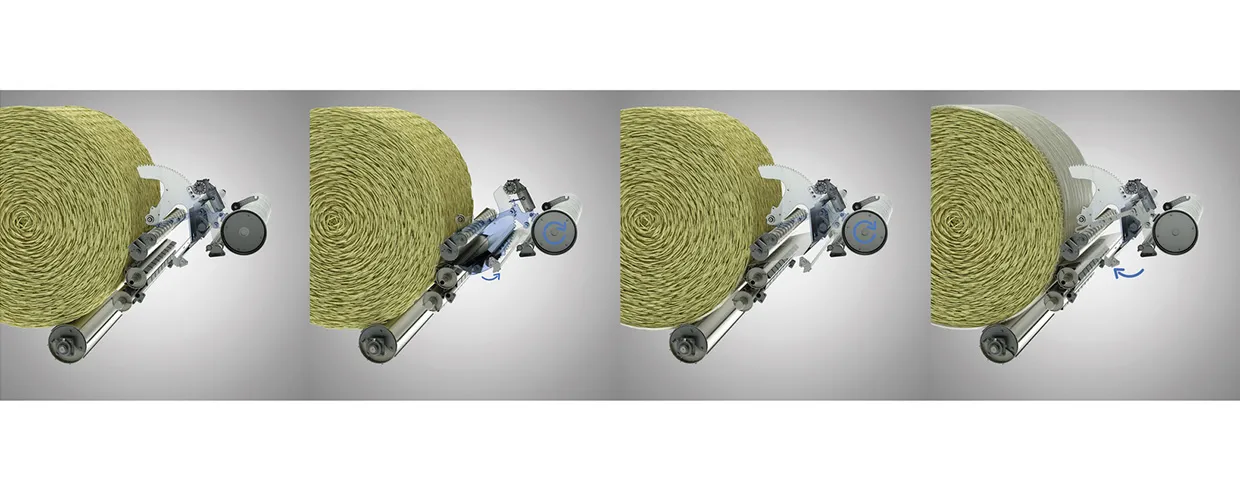

The renowned EdgeWrap™ system ensures the net wrap goes to the edge of the bale, and in some cases, it forms an envelope over the bale edge protecting bales and helping them retain their overall shape. This is ideal for bales which need to be handled and transported.

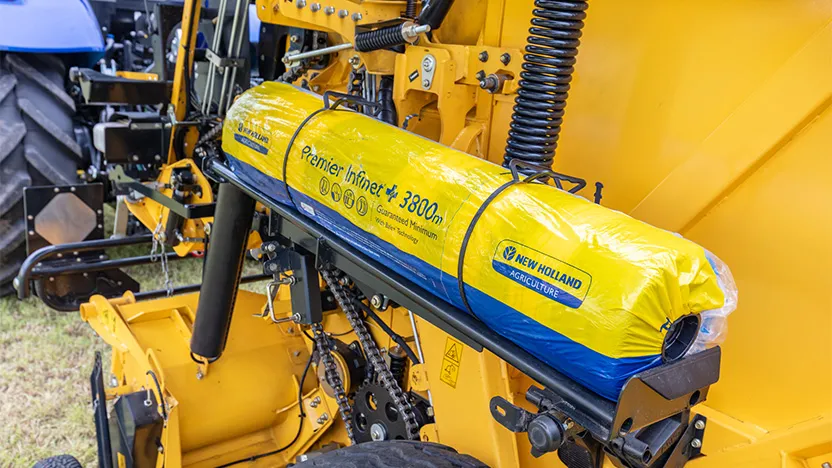

An additional roll of net can be stored at both the front and the side of the baler, ensuring you have enough net for an days baling in the field.

Productivity enhancing IntelliBale™ technology means that the Pro-Belt baler can communicate with your tractor. It will bring the tractor to a halt as soon as the pre-set bale diameter has been reached, net wrap application begins automatically and the tailgate is raised, A sensor on the bale ramp tracks the complete process and closes the tailgate as soon as the bale has been ejected, a signal is then given to the operator to move forward.

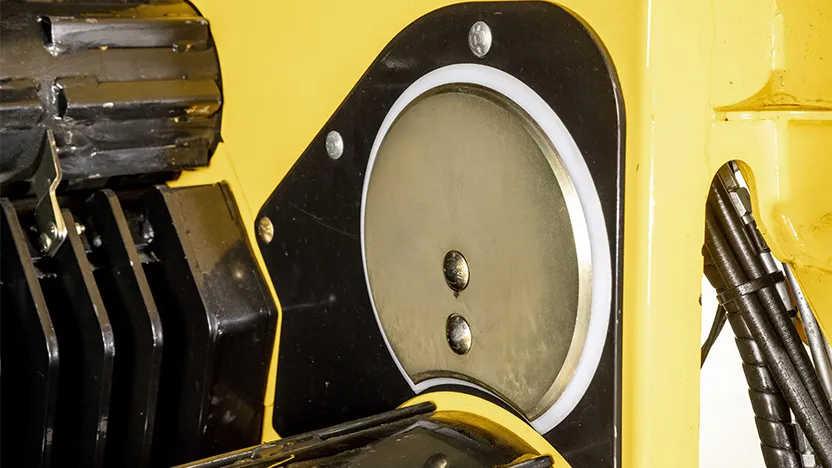

The optional moisture sensing system uses two discs, situated either side of the bale chamber to detect real time bale moisture. Readings are taken every 10 milliseconds, and an averaged reading from the two sensors is sent to the cab every second, for real time data transmission. Upper and lower moisture limits can be set, if surpassed, baling can be stopped to preserve quality.

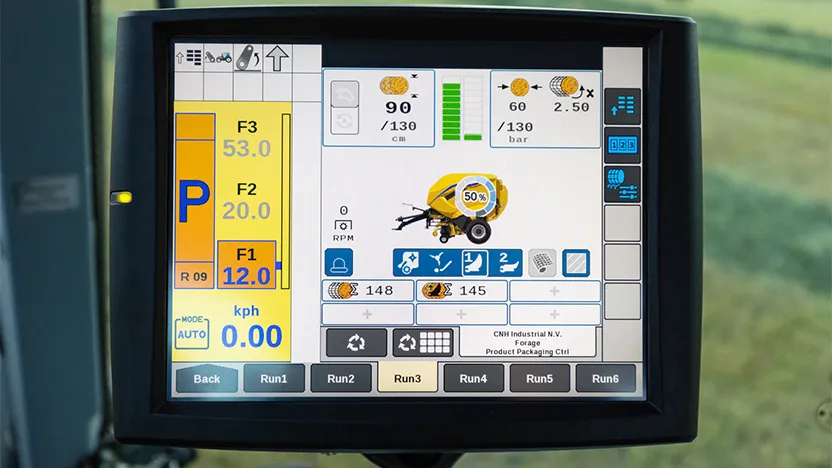

Two fill sensors, located on either side of the baler continually monitoring the fill profile. The in-cab display relays this information to the operator, who can adapt their driving pattern accordingly to ensure consistent, uniform bales.

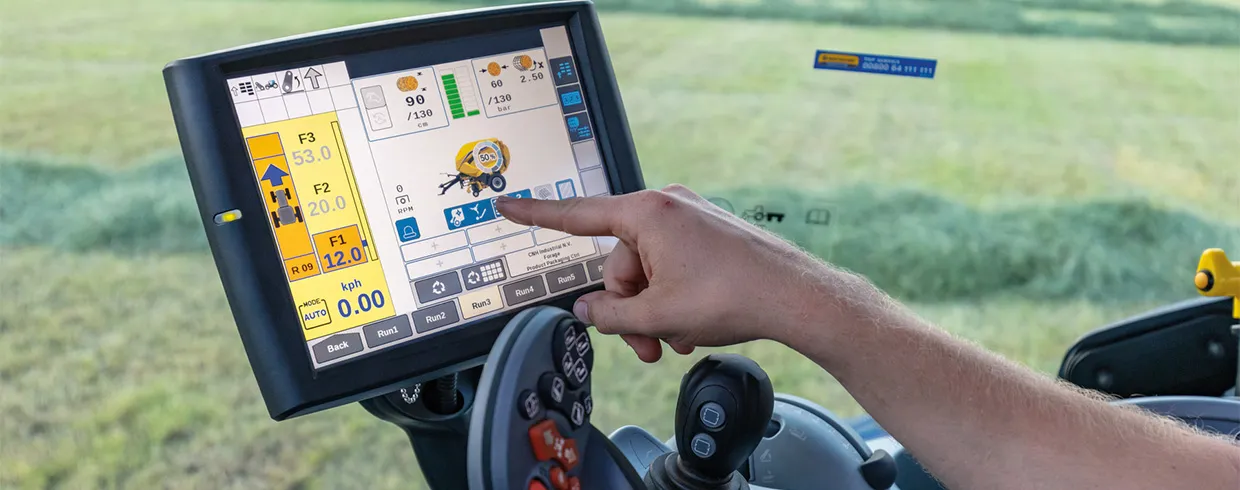

The all-new intuitive screen layout enables fast and easy bale settings to cater for varying crop conditions. Operators can adjust net wrap layers, bale diameter, outer bale density and inner core density all from the screen.

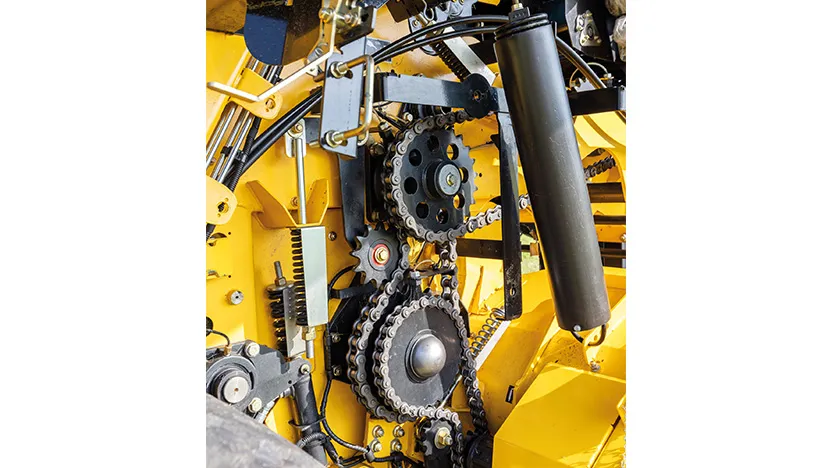

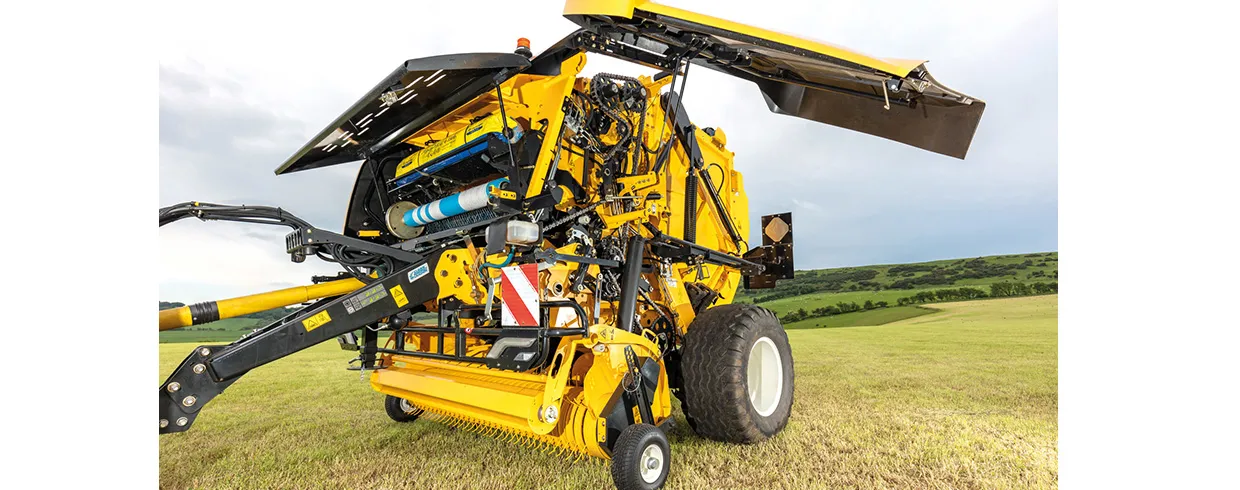

Pro-Belt balers feature bigger heavy-duty bearings, larger sprockets and drive rolls providing a truly robust construction. Using only four heavy duty driving chains power is delivered efficiently and will provides a more durable operation.
