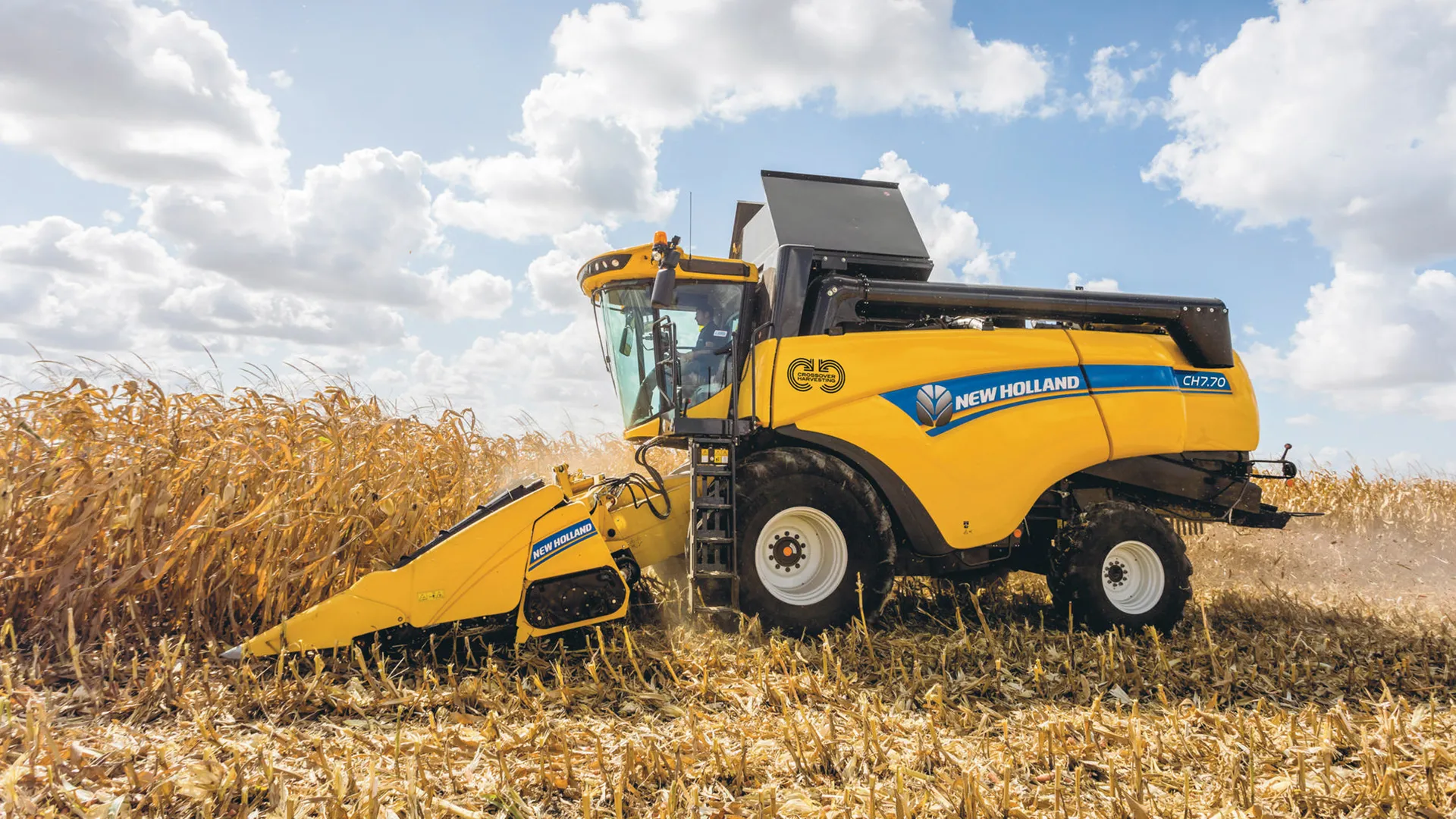

CH

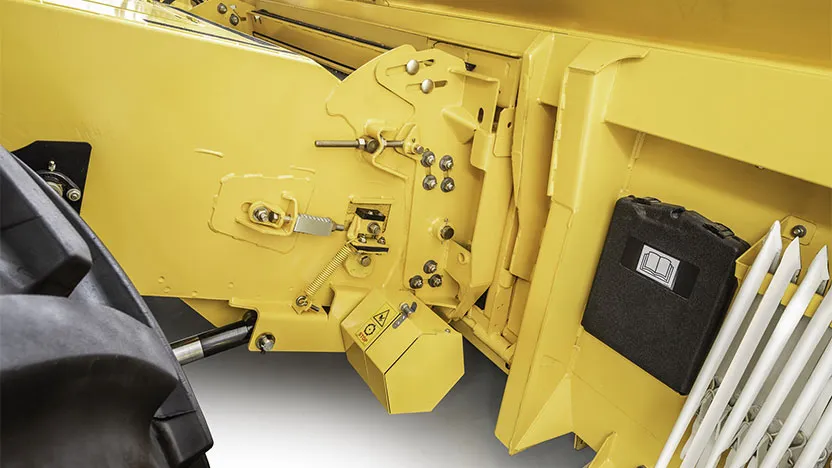

The front face of the feeder housing can be mechanically adjusted to ensure perfect alignment with the header, thereby optimising the angle for different headers to deliver smoother, laminar crop flow for increased throughput.

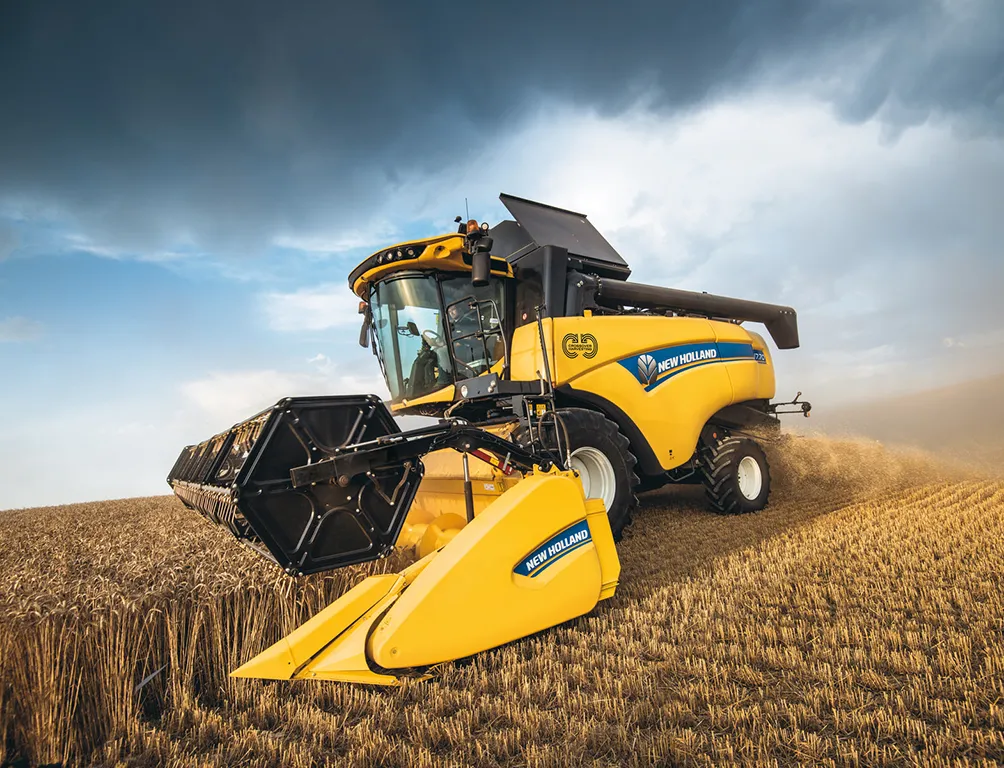

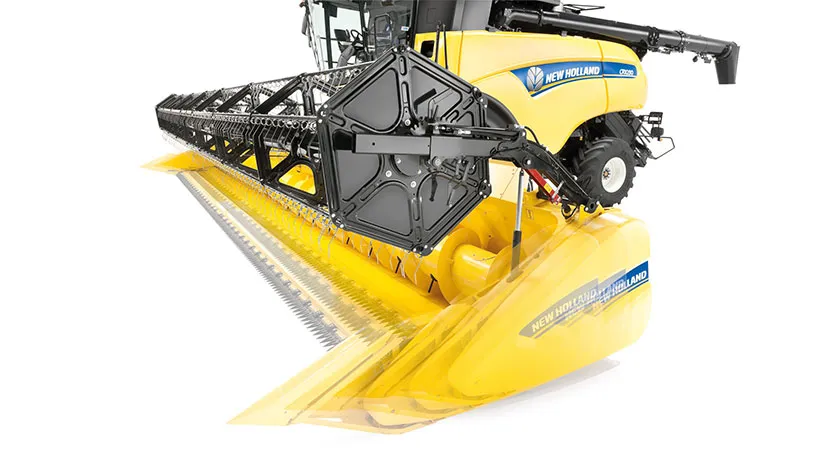

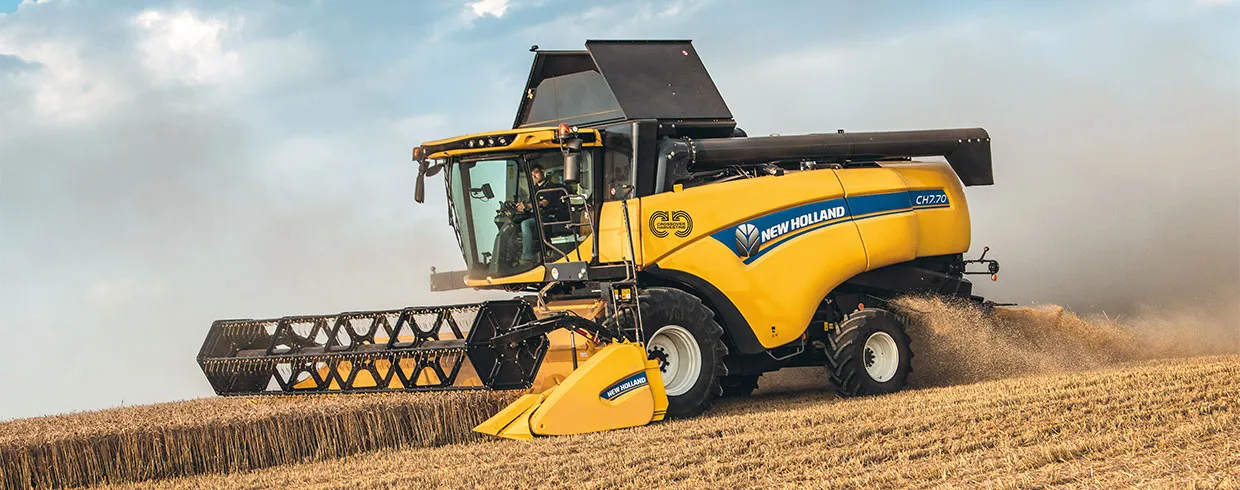

The CH range can be equipped with Varifeed™ grain headers of up to 9.15 metre, and a brand new 8.53 metre variant has been developed specifically for this range, in response to customer demand. Varifeed™ headers feature their trademark 575mm of fore-aft knife adjustment, which is carried out from the cab to ensure optimal configuration in all crops.

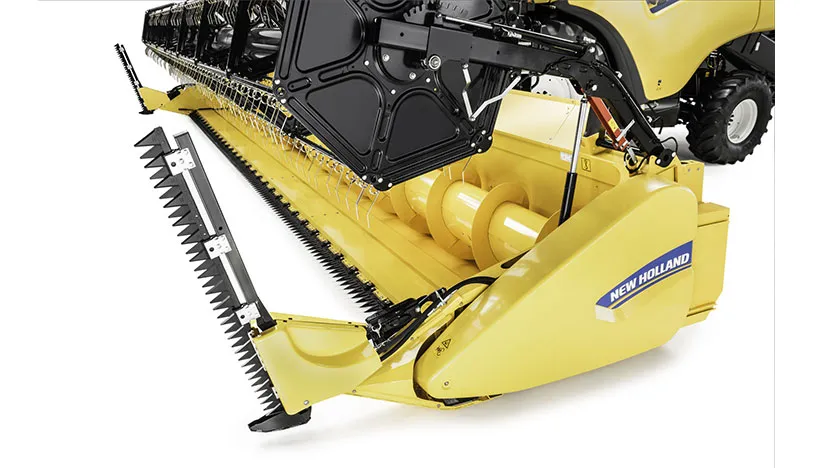

The new optional 36-teeth side knives have been redesigned with a low mounting point, and the new, lightweight design makes them easier to connect to the Varifeed™ header for even more user friendly operation.

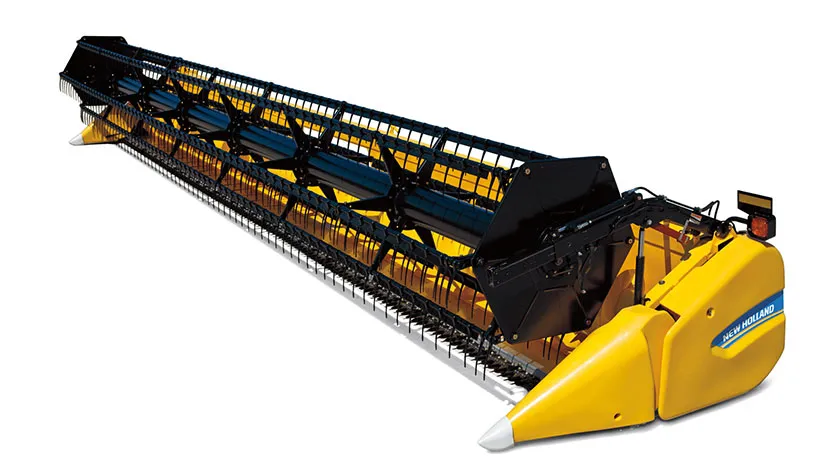

On uneven ground, Superflex headers are king. The knife bed can flex a full 110mm in uneven fields to ensure a closer cut and uniform stubble height. The full-floating auger with deep flights provides fast, smooth feeding, even in the heaviest crops.

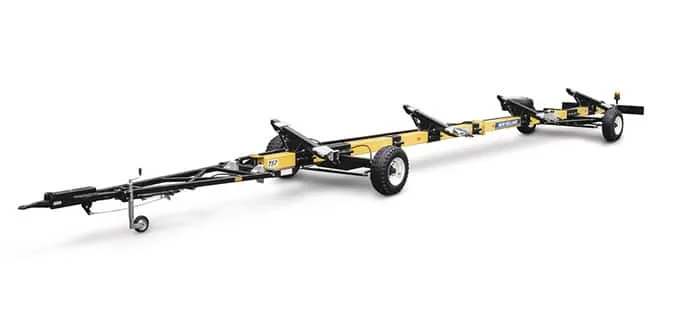

Available for Varifeed™ headers from 7.62m – 9.15m, the new range of four wheel-steer New Holland header trailers offer security, stability and ultimate manoeuvrability at speeds up to 40kph. Self-aligning locating brackets and a secure and reliable locking-pin system ensure minimum downtime when detaching the header.

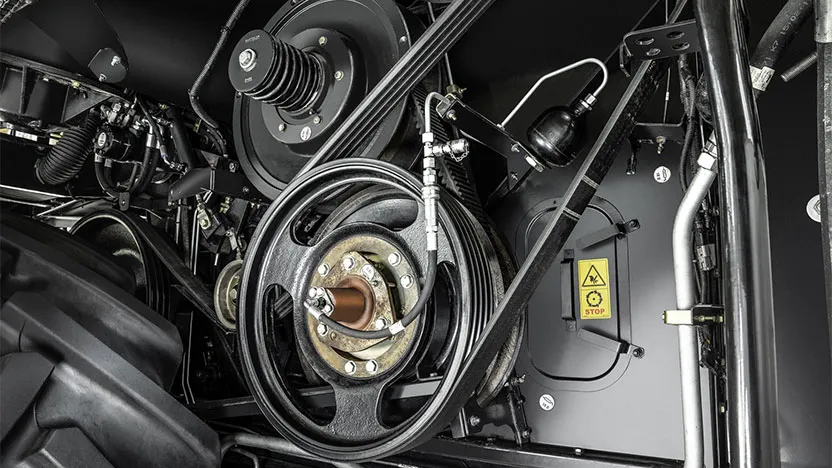

The CH range features a 600mm diameter threshing drum. Thanks to its reinforced, heavy duty design it offers outstanding threshing performance. An all new heavy duty variator controls the drum speed, and is regulated from the comfort of the cab. This means the speed is perfectly matched to the crop and field conditions at hand.

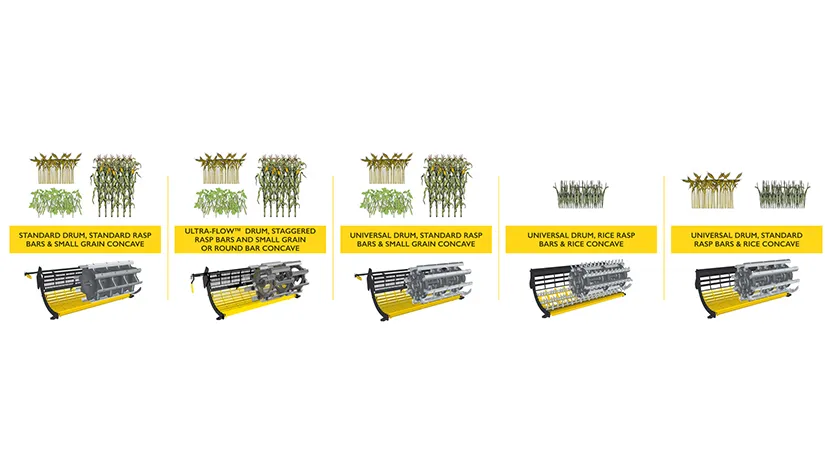

Sectional concaves reduce the time to rebuild the combine when switching between crops from six hours to 20 minutes. When switching from one crop to another, simply select the required concave and replace the lower sections – all without removing the straw elevator.

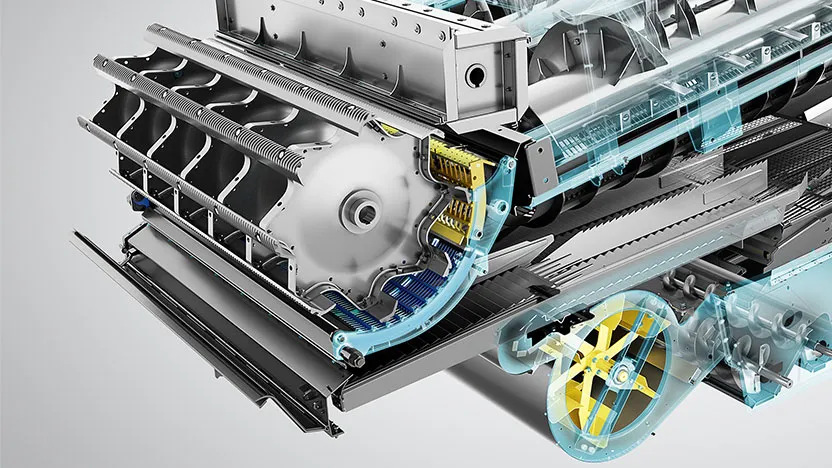

The Opti-Thresh™ system enables adjustments to be made based on crop conditions and maturity simply by repositioning the rear concave section. When closed the concave reaches a full 121° wrap angle. When the hinged top section is moved away from the drum, the rubbing action is less aggressive, improving straw quality.

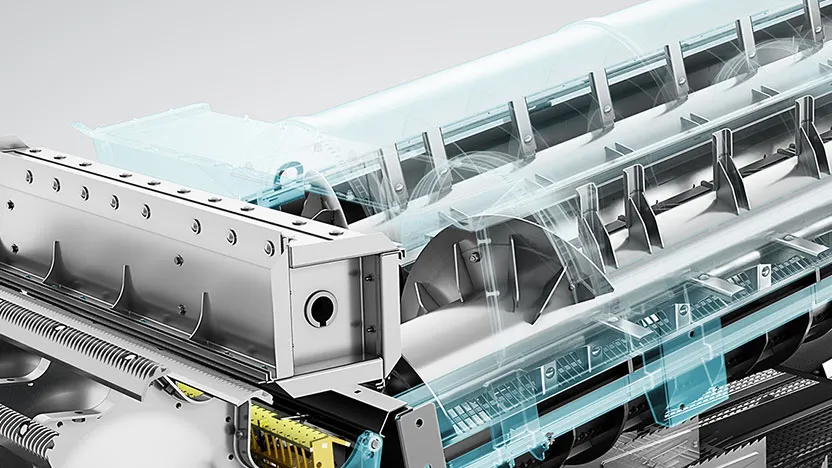

The beater, the second element of the threshing system has two important functions. First it aids more aggressive separation to ensure each and every grain is captured, and secondly it delivers the crop to the top of the rotors for more efficient separation.

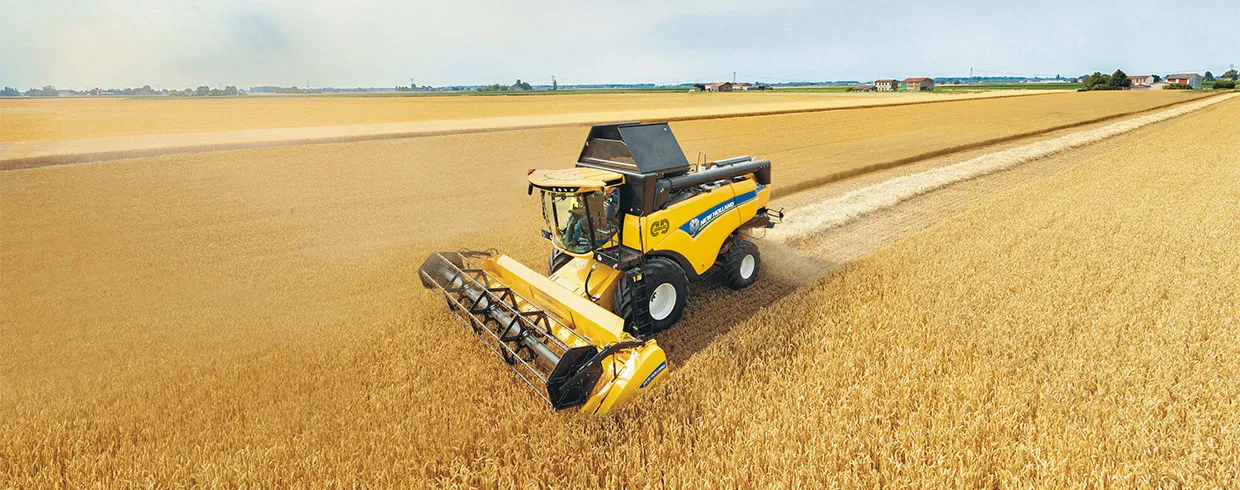

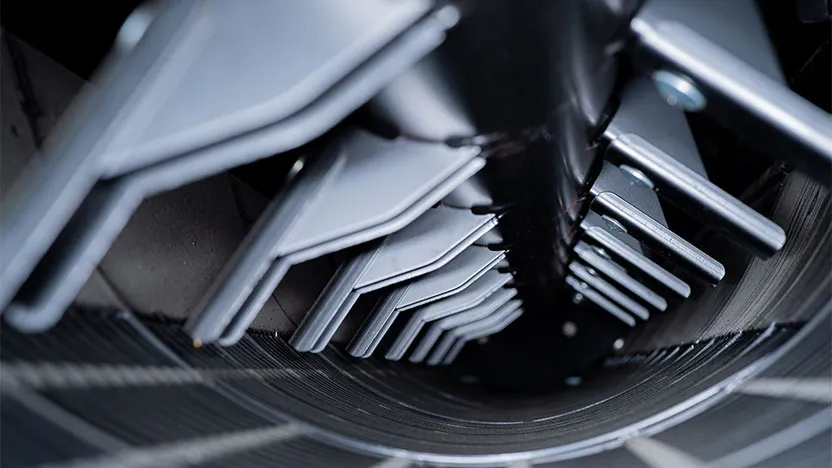

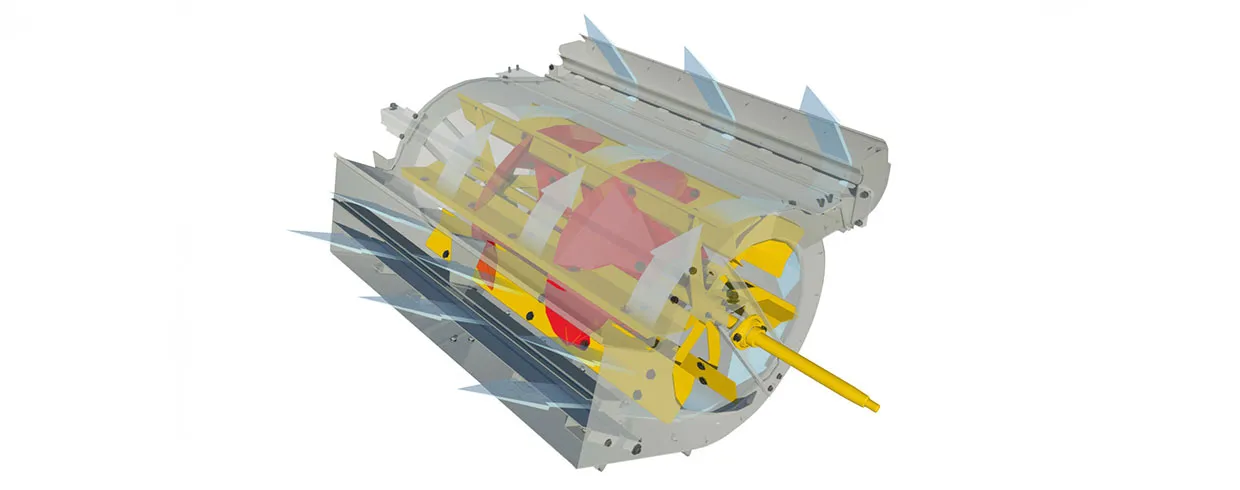

The 3.45 metre long, 533 mm diameter Twin Rotor™ separation fitted to the CH combine delivers the segment’s largest separation area, at some 2.9m². The crossover harvesting rotors efficiently and smoothly move crop along the full length of the rotors to enhance the separation process. The eight removable concaves make cleaning and routine maintenance even easier and quicker. Select from two rotor speeds to suit the crop and conditions.

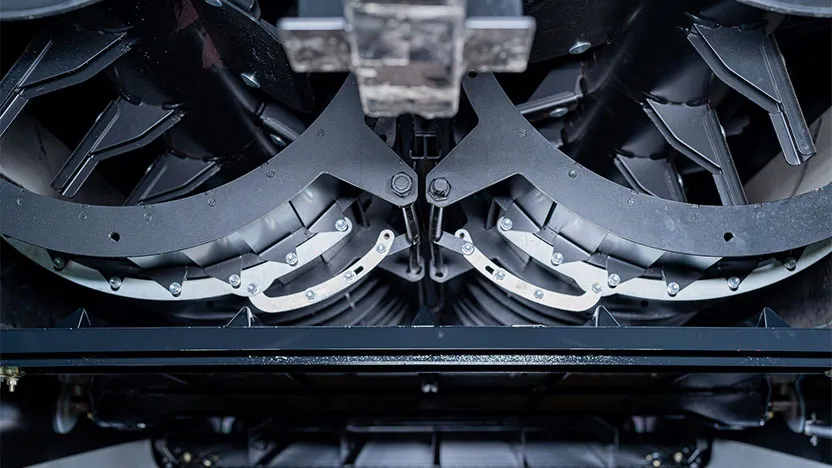

You can choose the right concave for the task in hand. Grain concaves are ideal for maize and small grains and an optional rice kit is also available. A special flap at the end of the rotors can be opened or closed depending on the crop. This should be closed when harvesting rapeseed to reduce material other than grain (MOG) overloading the cleaning shoe.

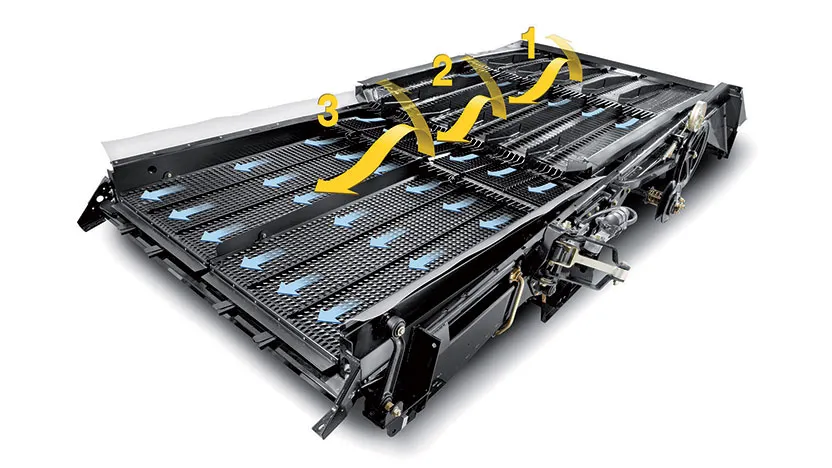

The standard Triple-Clean™ cascaded cleaning system boosts cleaning capacity by as much as 15%. This simple yet innovative feature enhances cleaning by means of an extra cascade in the centre of the grain pan, where an additional air blast removes large volumes of chaff and short straw ahead of the main sieves. This triple cascade approach ensures cleaning is not compromised when overall machine capacity is being optimized. Further capacity improvements include the double flight cross auger, which transfers grain to the elevator faster and can result in an increase in throughput.

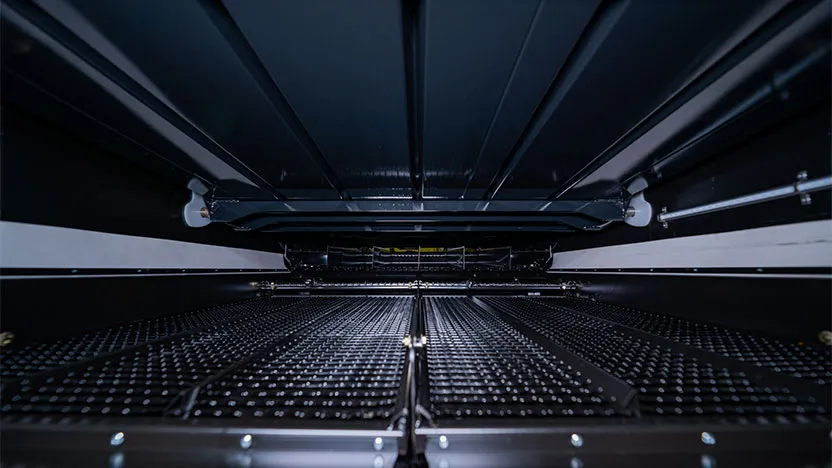

The optional Smart Sieve™ system automatically compensates for side slopes, thereby neutralizing their impact to deliver perfectly balanced sieves for uniform cleaning performance. The system also calibrates sieve action based on fan speed and kernel size to determine the optimal throwing angle.

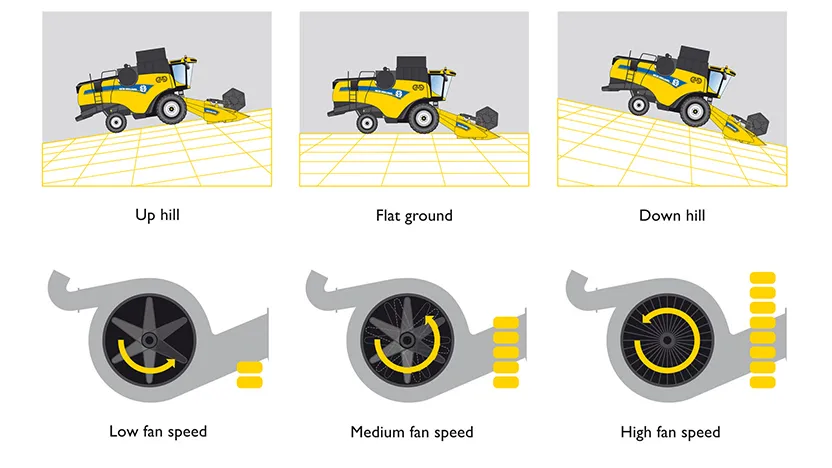

The award-winning Opti-Fan™ system automatically compensates for fluctuating grain speed across the cleaning shoe when working on slopes. The fan speed will automatically decrease when working uphill to prevent precious grain being lost out the back of the combine and will increase when travelling downhill to prevent clogging of the shoe.

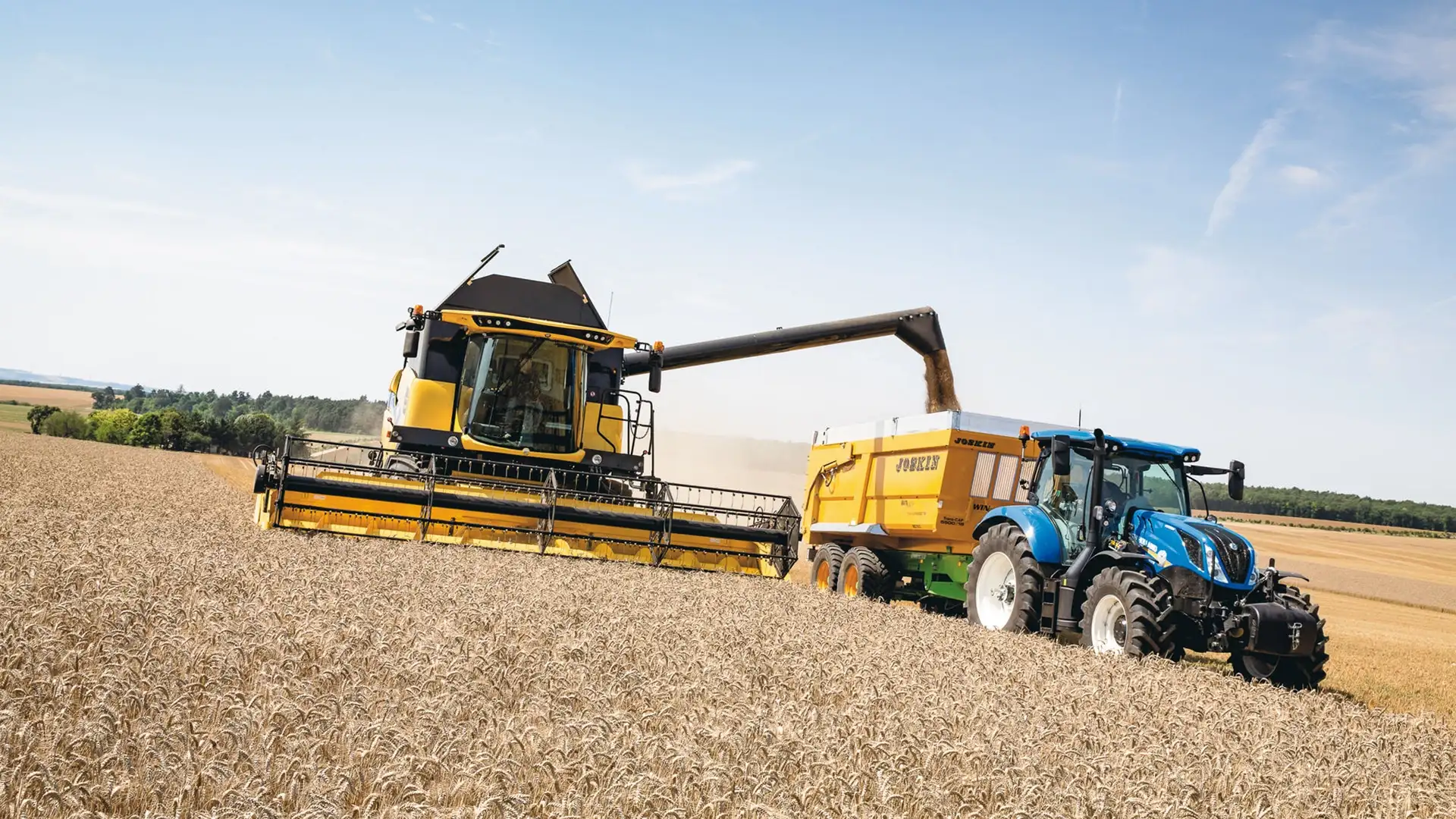

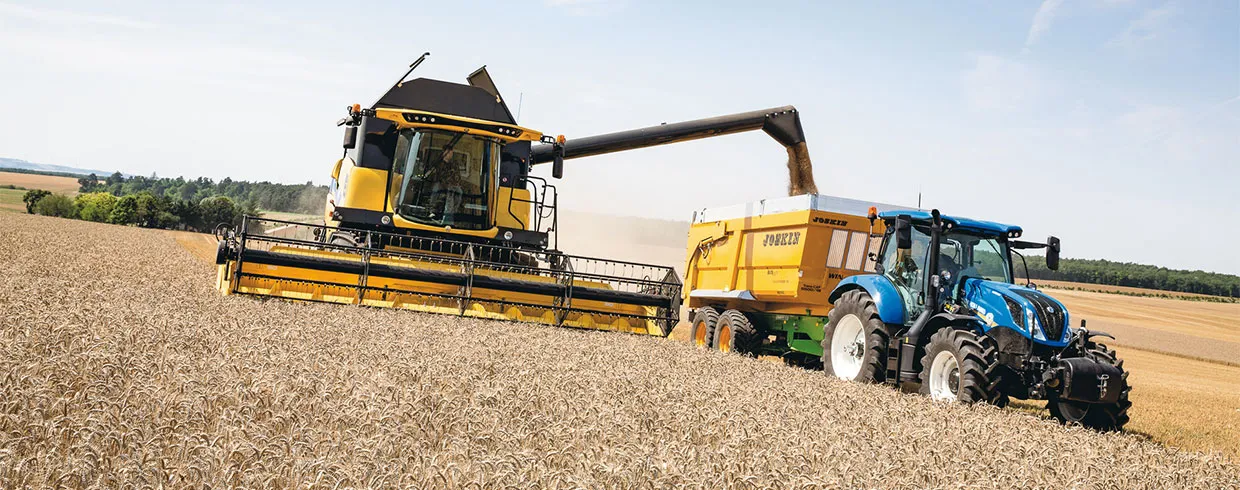

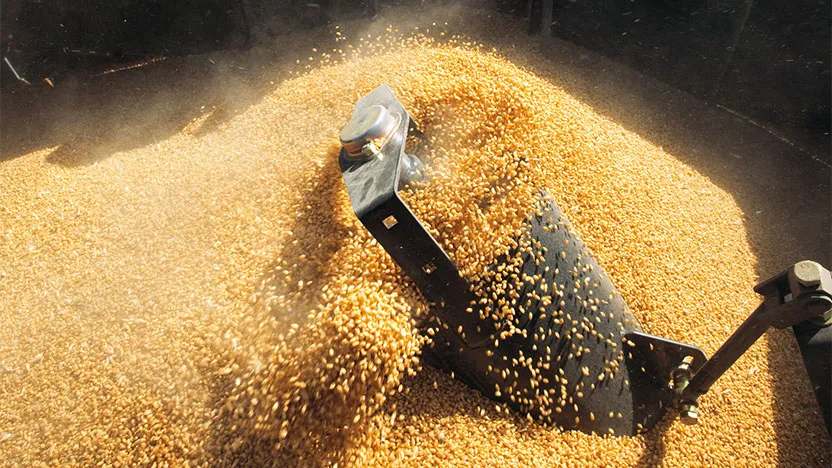

The 9,300 litre grain tank can be emptied in under 93 seconds thanks to an unloading speed of 100 litres/second. The 6.4 metre unloading auger is compatible with today’s high capacity trailers.

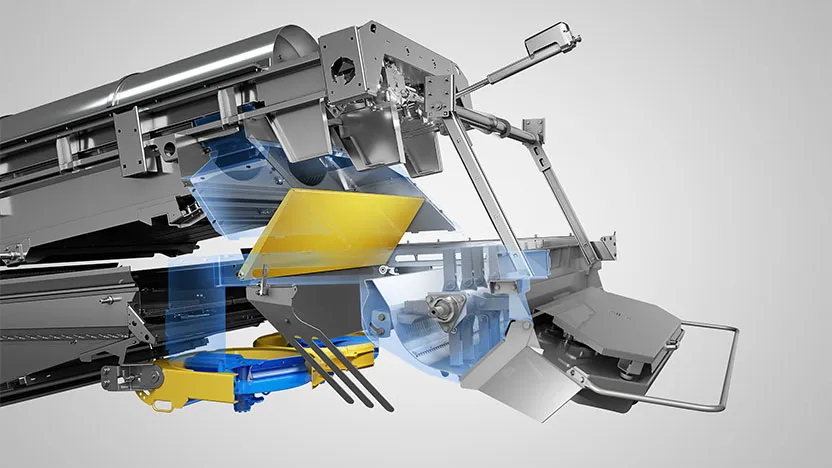

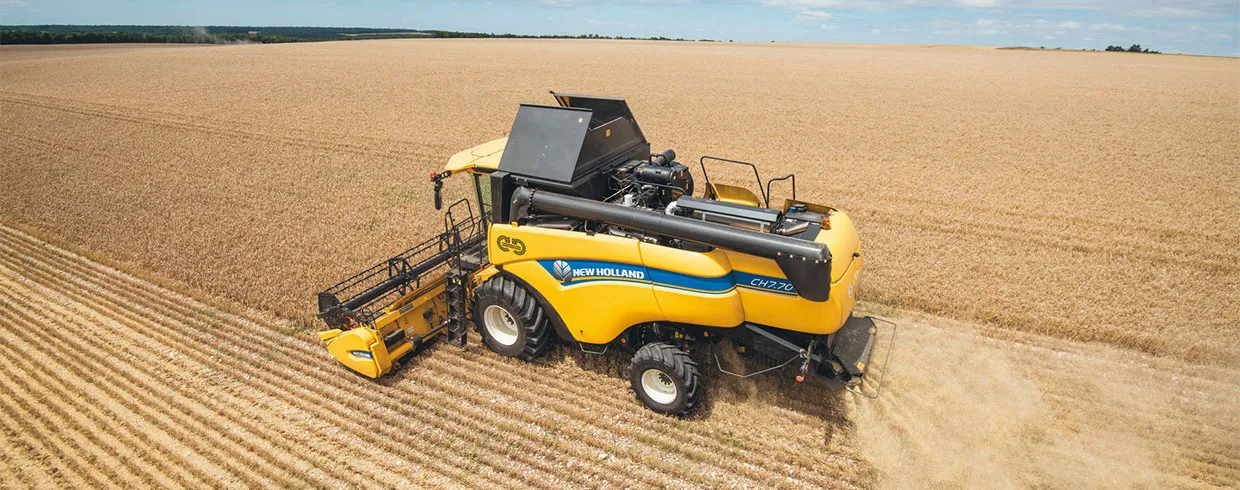

The hydraulically driven chaff spreader offers a variable speed range to match spread to header width and the crop being harvested: • The chaff is spread away from the row or buried beneath it leaving clean, lower dust straw, which is ideal for use as animal bedding, for example • The powerful hydraulic spinning discs ensure that the chaff is spread evenly to the full width of the widest headers • The high speed straw chopper is fitted with New Holland’s innovative Dual-Chop™ system, that ensures that longer pieces of straw are cut down to size

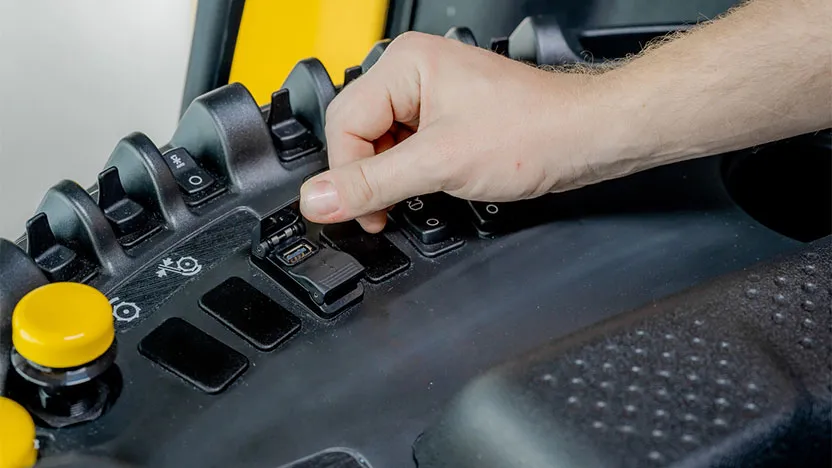

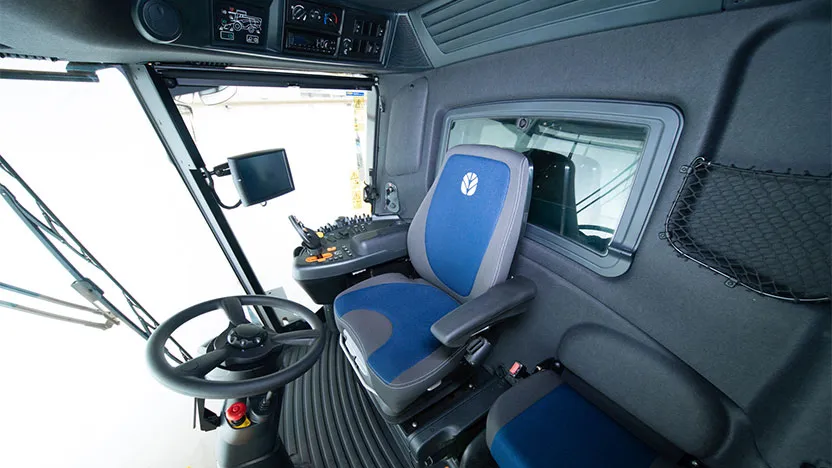

The dark headliner and console, and the use of premium finishings mean you will be perfectly at home in the CH crossover combine. An optional heated floor mat brings a touch of luxury when harvesting maize on chilly winter evenings.

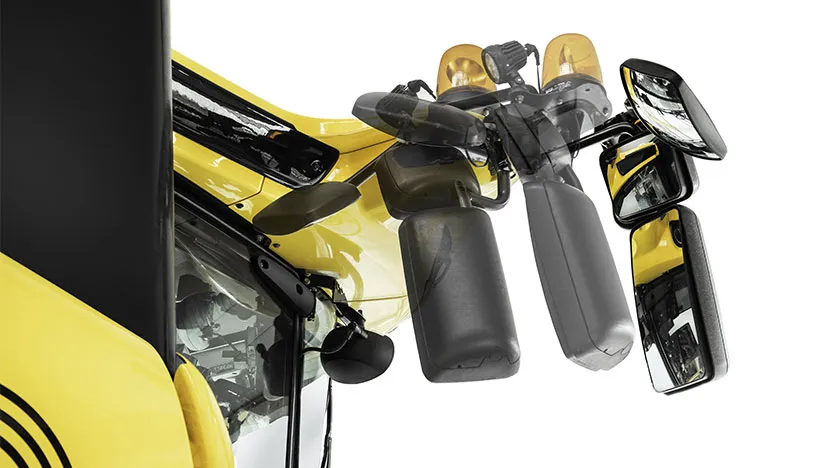

When navigating tight country lanes you can simply electronically fold in the side mirror from the comfort of the cab. It’s sometimes small things that make a big difference.

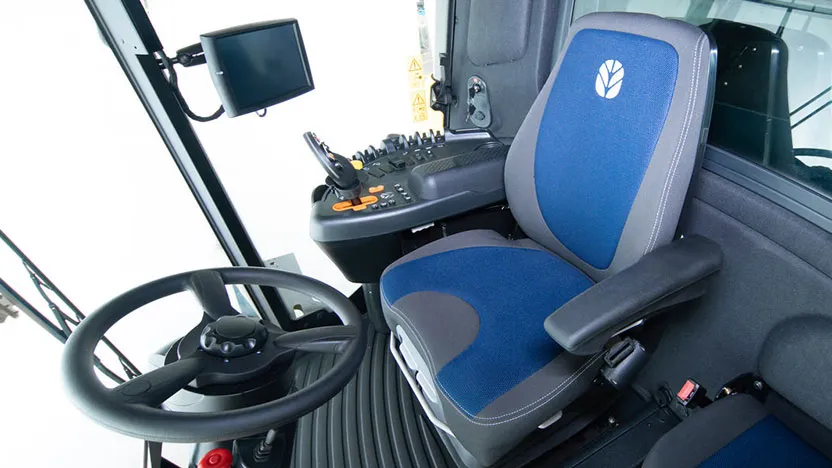

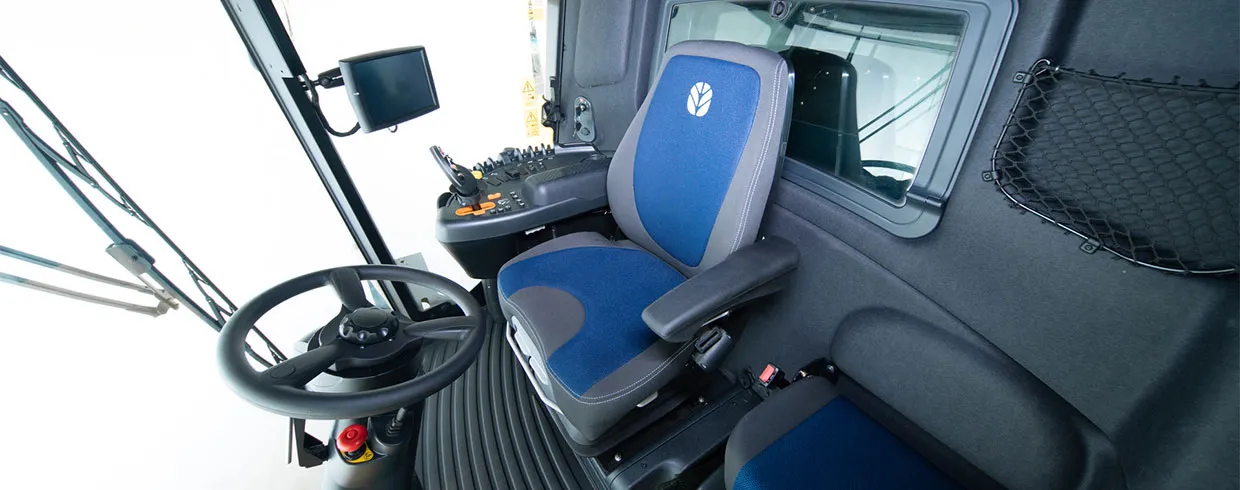

The CH range can be specified with the standard cloth trimmed seat equipped with high quality cushions. The range-topping deluxe air suspended seat features a two-tone cloth trim, air suspension, and up to 45° of adjustment when working on side slopes. Lumbar, damper, seat cushion angle and depth adjustment are accompanied by fore-aft movement for absolute harvesting comfort.

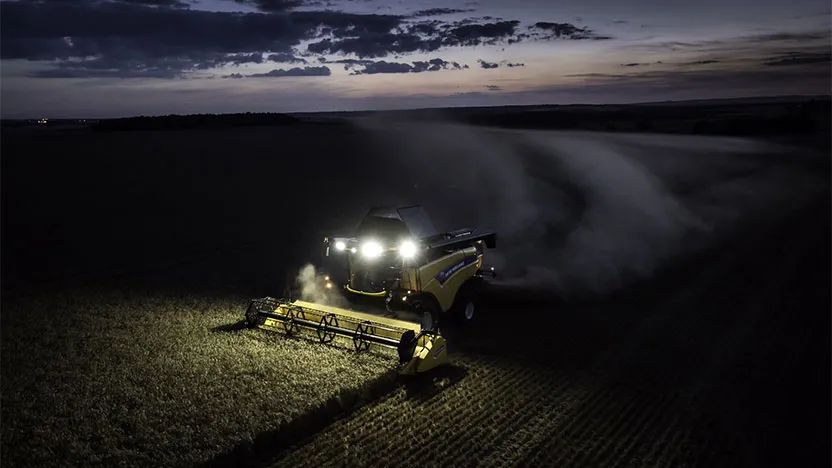

An optional LED lighting package ensures a broad spread of light when harvesting and manoeuvring. Two additional lights have been placed on the straw hood, which are perfect for checking residue spreading when working at night or when reversing into tight spots.

The dark headliner and console, and the use of premium finishings mean you will be perfectly at home in the CH crossover combine. An optional heated floor mat brings a touch of luxury when harvesting maize on chilly winter evenings.

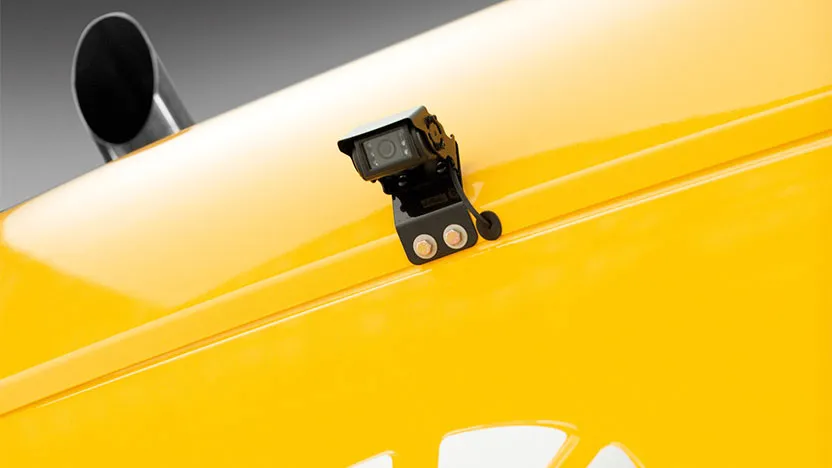

The CH crossover can be specified with three optional cameras. One is dedicated to reversing assistance and you can position the other two where you most need them. Maybe it is on the unloading auger to ensure accurate and uniform trailer filling, perhaps one is in the grain tank to check fill level, put simply, the choice is yours.

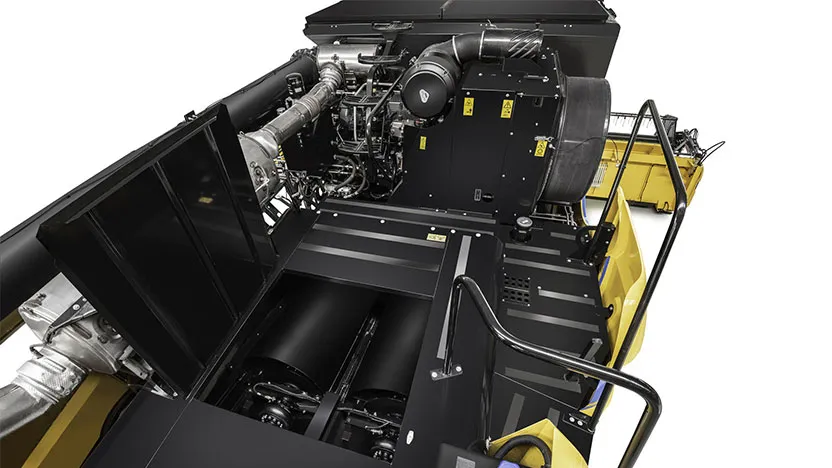

The CH combine has been designed to deliver easy maintenance. Controlled by the IntelliView™ IV monitor, the automated variator lube system and Cleanout functions are standard. The Cleanout function cleans the entire combine, including sieves, drums and concaves, ideal when switching between crops. Only four greasing points make daily maintenance even quicker and the large service door on top of the straw hood door provides easy access.

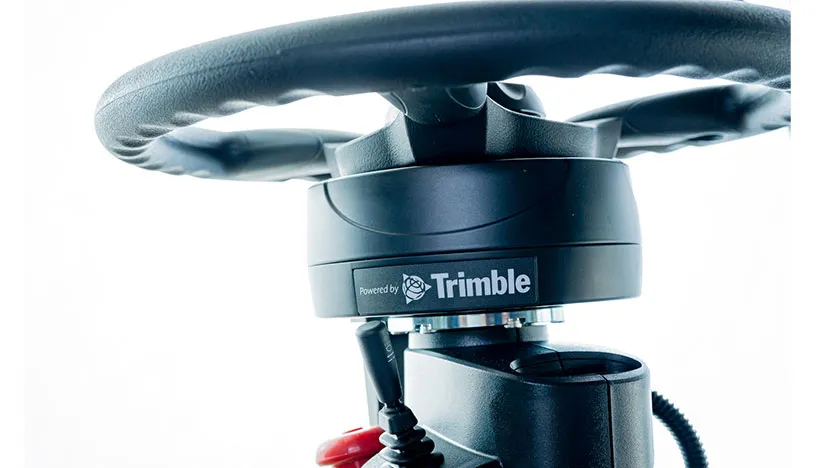

This factory fitted integrated guidance system uses the IntelliView™ IV colour touchscreen monitor to manage all guidance functionality. Accurate to 1-2 centimetres, this offers true repeatability and accuracy, ensuring every grain is gathered in.

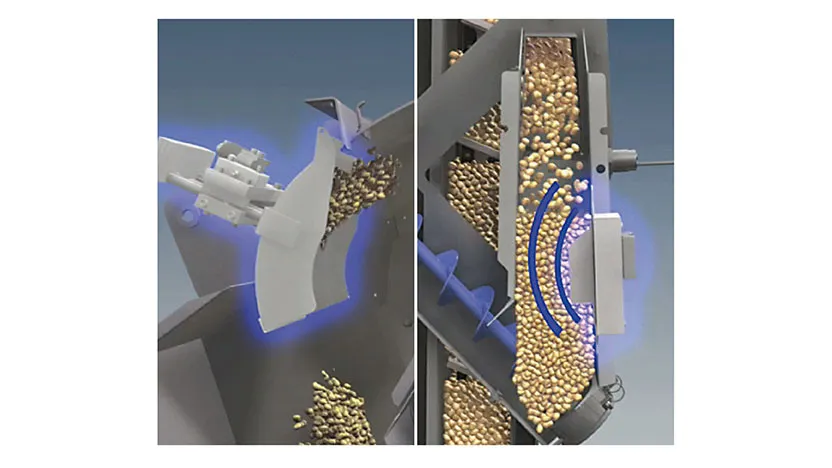

Patented and exclusive to New Holland, the optional yield and moisture sensors not only deliver exceptional accuracy, they do not need to be re-calibrated when switching between different crops. The moisture sensor is mounted on the grain elevator where it regularly samples harvested grain, and the yield sensor is mounted inside the Clean Grain Elevator.

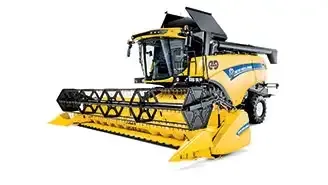

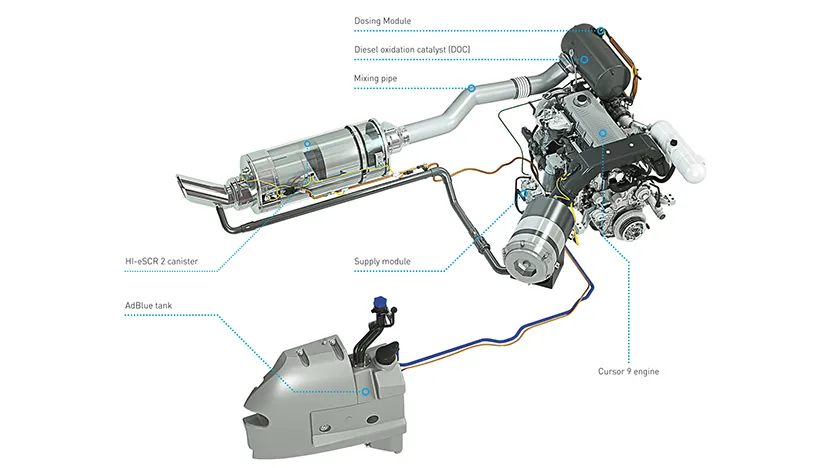

The CH7.70 combine benefits from the productivity enhancing features of the FPT Industrial Cursor 9 engine that develops up to 374hp, 34hp more than the CX6.90, which means no matter the conditions, your CH keeps going.

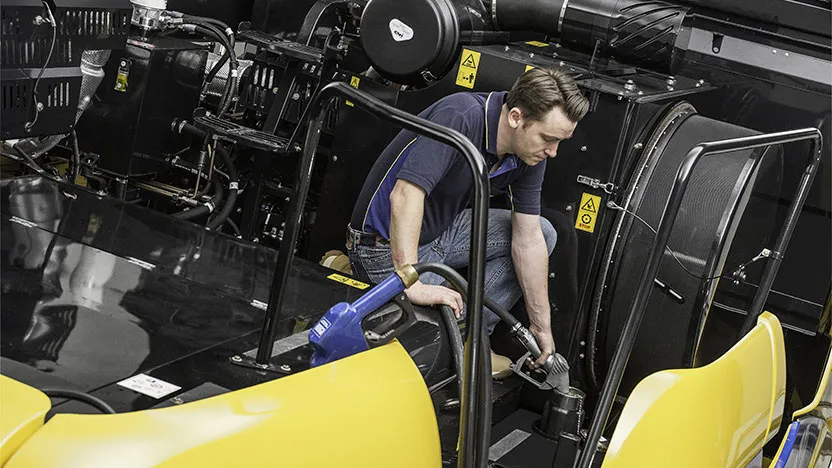

The 670 litre fuel tank means that you will easily sail through a whole harvesting day without needing to refill your combine. When refuelling does come around, you can do so with ease thanks to the flat deck ser vicing platform.

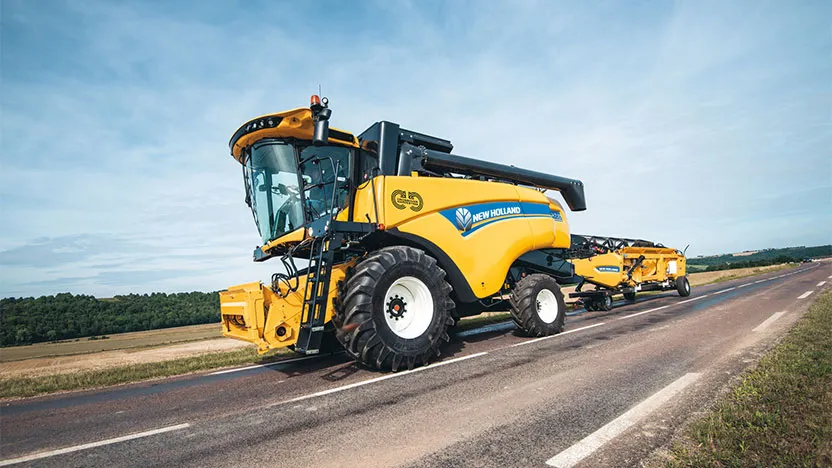

For optimal fuel consumption during road transport, the Road Cruise Mode is engaged from the cab, reducing engine speed automatically, to save fuel and reduce noise.

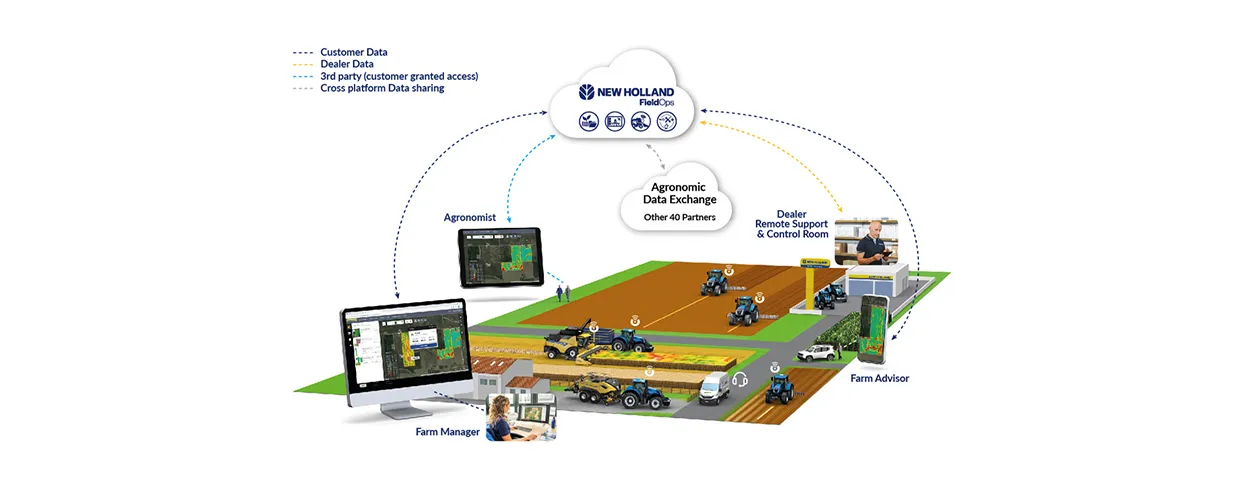

Using data from New Holland FieldOps™, skilled technicians analyze specific triggers in the cloud to implement solutions as required. If an issue is identified, the system proactively sends an alert to dealers with the corrective action. Then dealers can prepare in-field or remote assistance and in addition New Holland can support the process to find the quickest solution. That’s New Holland’s commitment to its customers.

The priority assistance service for New Holland machines. A dedicated team operates around the clock to manage the requests, which can be activated through the MyNew Holland™ app and the Top Service toll free number. New Holland and the Dealer network will do all possible to provide support, checking many options to get our customers back on the move as quickly as possible and the request will be followed up until the machine is fully repaired. The team relies on a Priority Parts process and dedicated service team, to reach a fast resolution. The service is able to solve more than 80% of breakdowns in less than 48 hours, this is our commitment to our customers!

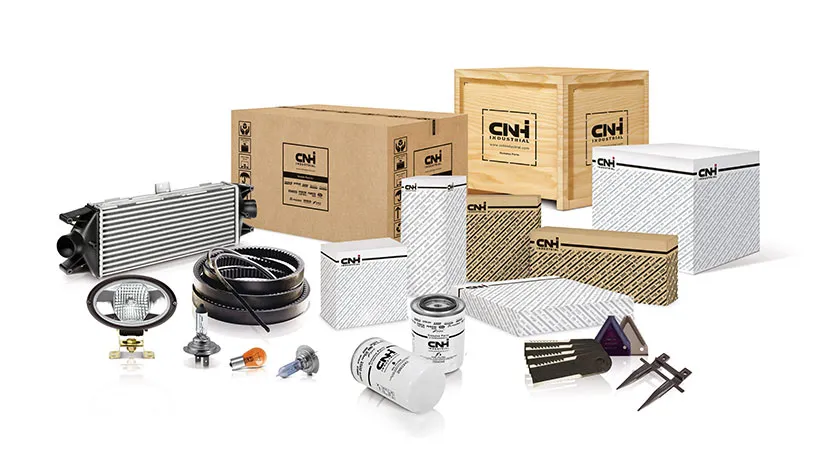

New Holland knows how important it is to minimize machine downtime and get back quickly to your farming. New Holland parts logistics is organized in order to ensure error-free and rapid par ts distribution. An efficient integrated stock management system allow to our six strategically positioned European Depots excellent performance 24/7.

Minimum downtime, maximum resale value. Your machine is always in top condition, with professional support and high quality genuine parts you maintain the value of your equipment over time. The Extended Warranty is standard on CH7.70, CR and CX7 & CX8 combine ranges. The 3 year or 1,200 engine hours warranty covers engine, driveline and after treatment systems.

Uptime Warranty is the New Holland Extended Warranty program under the same conditions as the Base Warranty. Maximum control over operating costs, maximum improvement of the uptime, repairs completed by authorized New Holland Dealers using New Holland genuine parts, higher re-sale value of your machine are some of the key benefits. Please ask your Dealer for more details and for a tailored Uptime Warranty offer*. * Refer to Uptime Warranty detailed terms and conditions at your Dealer
