PROROTOR™ C RAKES
Green Line
PROROTOR™ C RAKES

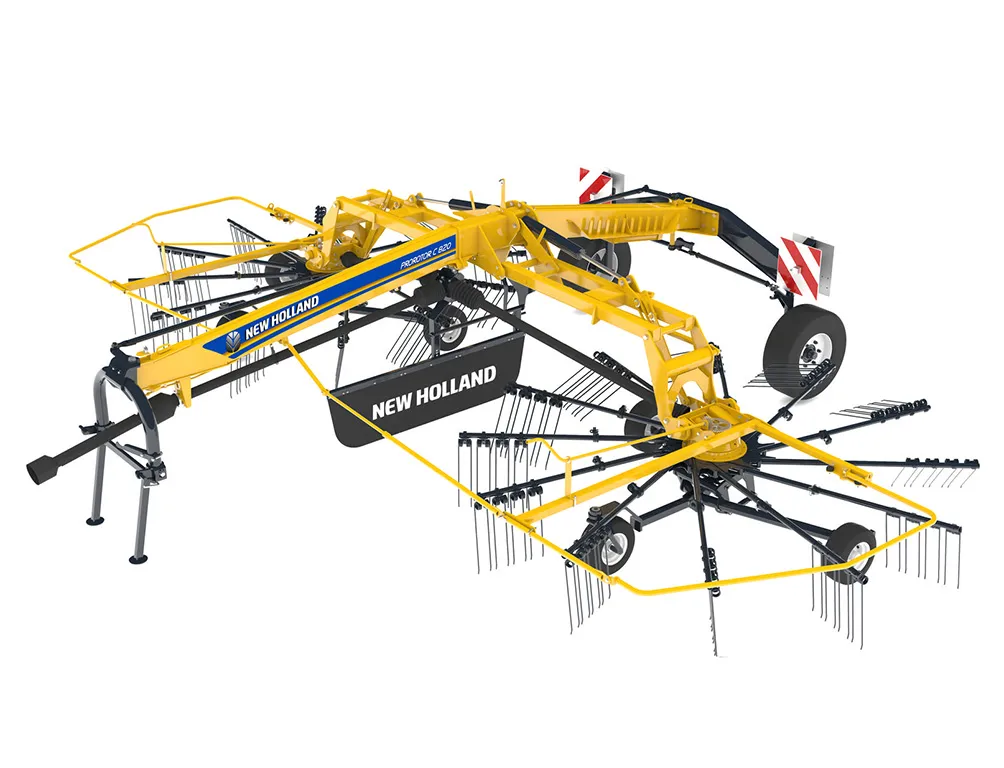

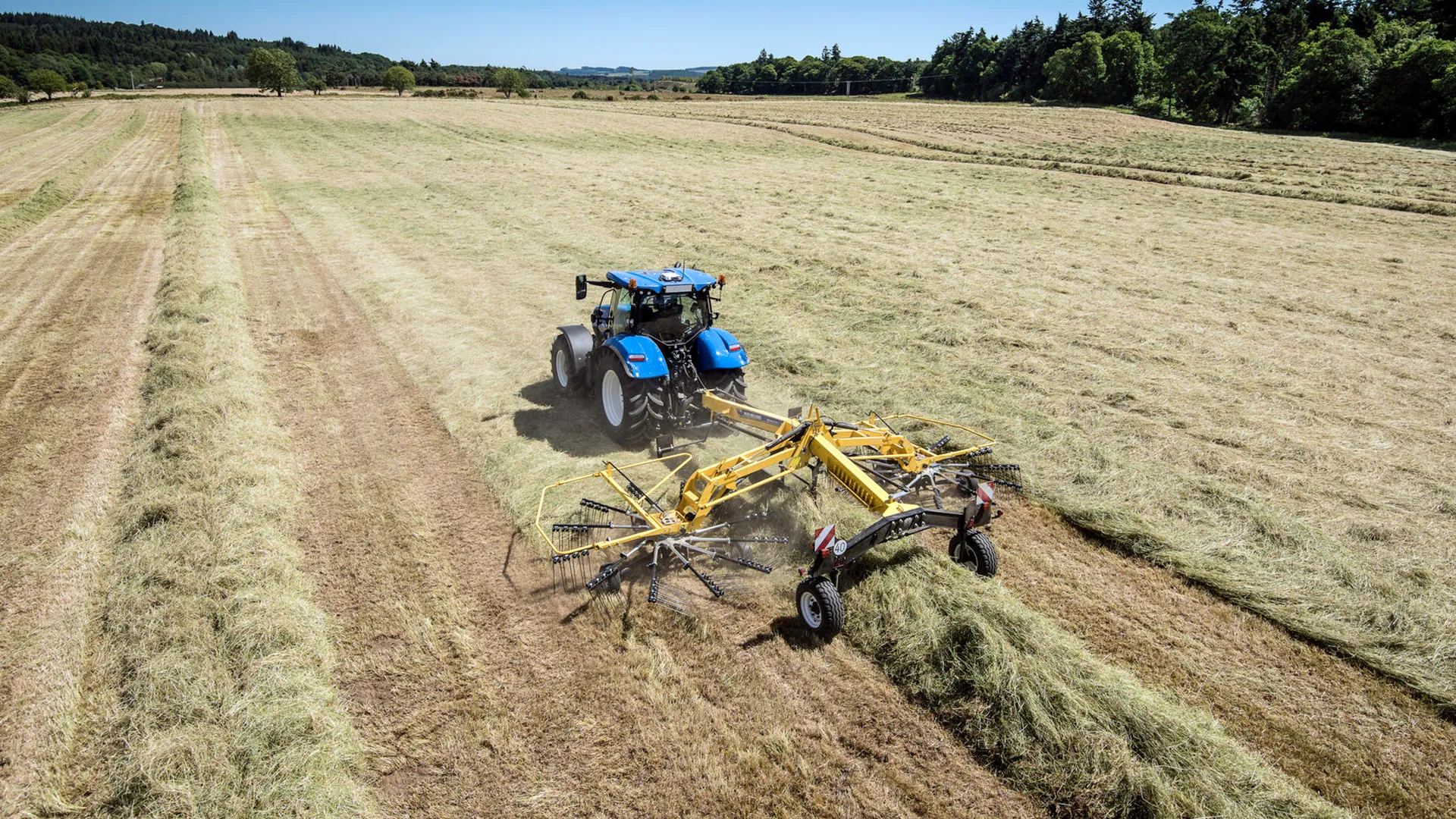

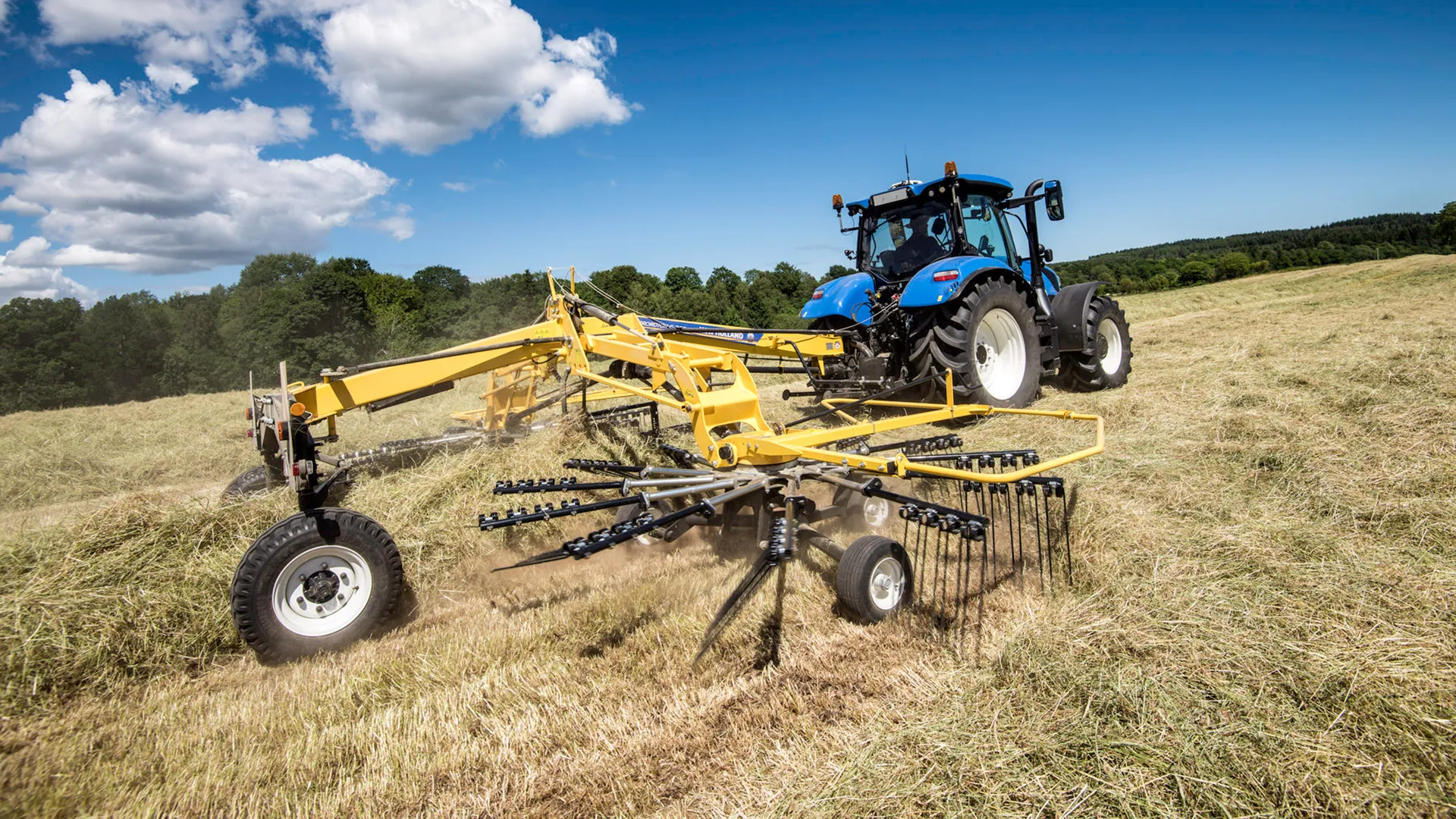

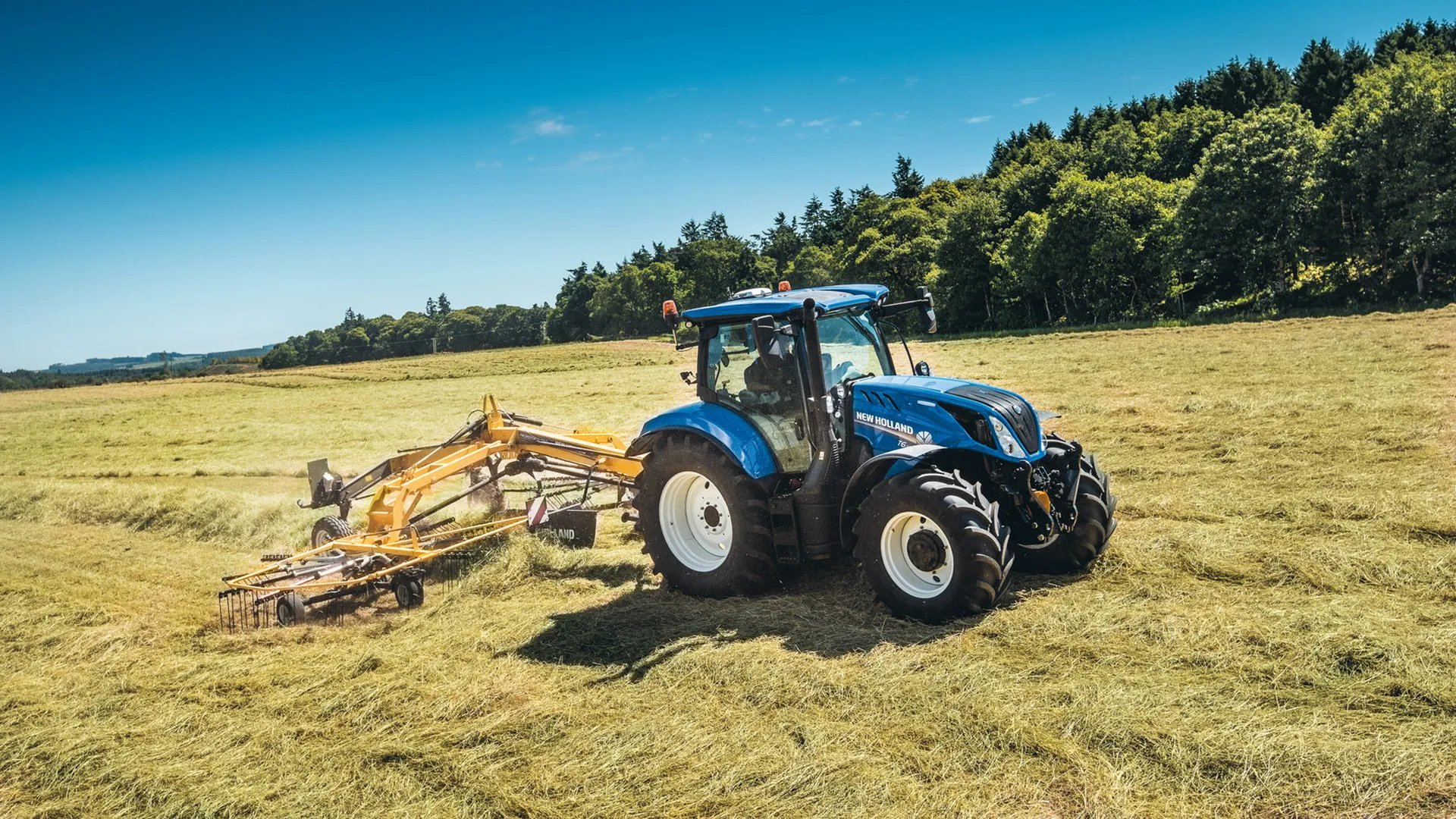

ProRotor™ C double rotor rakes ensure central crop delivery. Attached to the linkage arms, it can be hydraulically folded for transport, and when in transport configuration, it is less than four metres in height, ideal when transporting in areas with overhanging foliage. Benefitting from high ground clearance, this range is ideal when working with large swaths of dense crop. Available on the 760 and 820 the Cardanic rotor suspension technology means that the rotors can move both laterally and fore-aft freely for efficient operation.
Discover More
Features

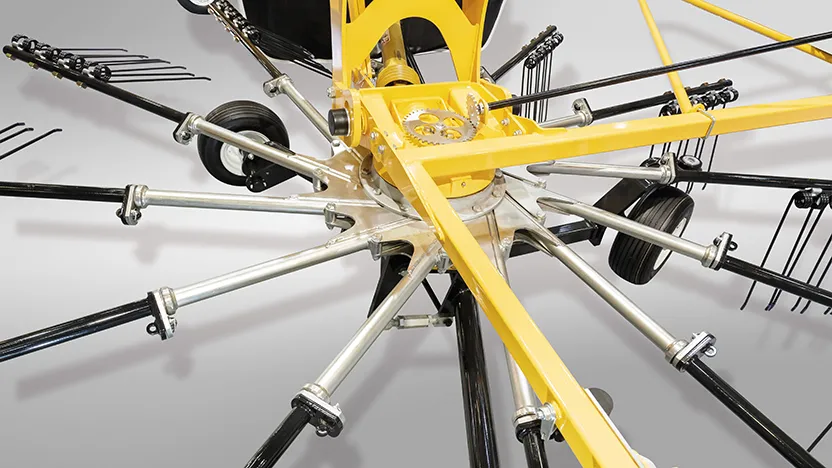

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.
Features

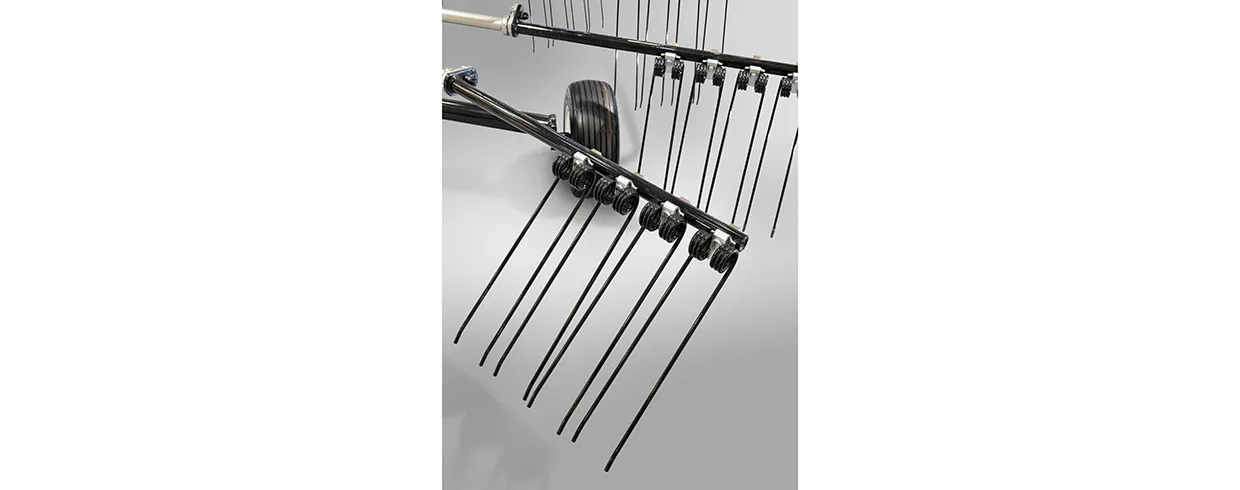

TANGENTIAL TINE ARM TECHNOLOGY
The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.
Available Models
Explore the trims available within the PROROTOR™ C RAKES line.

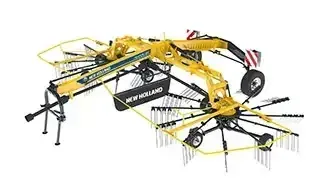

ProRotor™ C 660
Type of rake: Central delivery
Mounting type: 2- point linkage
Working width (m): 6,15-6,55
ProRotor™ C 660M
Type of rake: Central delivery
Mounting type: 3- point linkage
Working width (m): 6,15-6,55
ProRotor™ C 760
Type of rake: Central delivery
Mounting type: 2- point linkage
Working width (m): 6.5-7.6
ProRotor™ C 820
Type of rake: Central delivery
Mounting type: 2- point linkage
Working width (m): 7.0-8.2
Specifications
Export to ExcelCompare trims within the PROROTOR™ C RAKES line side by side.
Specification
ProRotor™ C 660
ProRotor™ C 660M
ProRotor™ C 760
ProRotor™ C 820
Mounting type
2- point linkage
3- point linkage
2- point linkage
2- point linkage
Type of rake
Central delivery
Central delivery
Central delivery
Central delivery
Working width (m)
6,15-6,55
6,15-6,55
6.5-7.6
7.0-8.2
Number of swaths
1
1
1
1
Rotor diameter (m)
2.95
2.95
3.2
3.5
Tine arms per rotor / double tines per tine arm
10/4
10/4
12/4
12/4

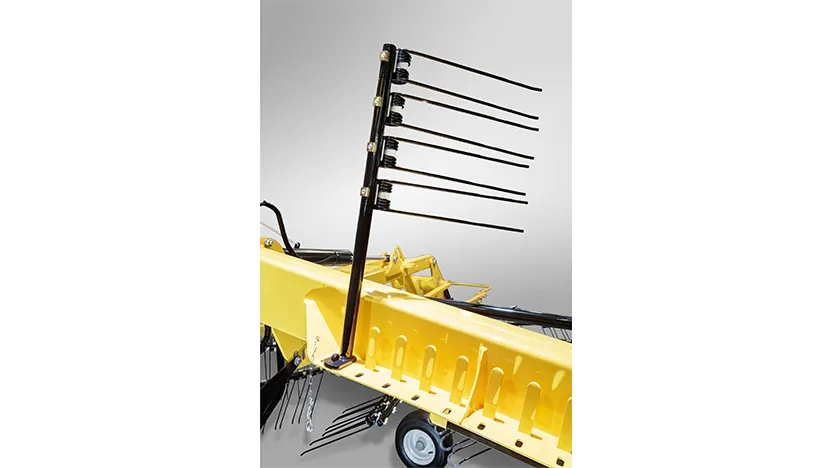

MIN-trans detachable tine arms
Standard
Standard
Standard
Standard
Tangential tine arm control
Standard
Standard
Standard
Standard
Covered cam track
–
–
Standard
Standard
Minimum PTO Power [kW/hp(CV)]
30/40
44/60
30/40
40/55
3 wheel multi-touch chassis
–
–
Standard
Standard
Hydraulic remote required
1SA
1SA
1SA
1SA
Advanced wide-track axle
Standard
Standard
–
–
Drive chassis
Standard
–
Standard
Standard
PTO speed (rpm)
540
540
540
540
Tandem caster wheels
–
–
Optional
Optional
Central height adjustment
Standard
Standard
Standard
Standard
Transport width (m)
2.95
2.95
2.92
2.92
Transport height without/with rake arms (m)
2.75 / 3.5
2.45 / 3.2
3.50 / 4.00
3.59 / 4.00
Weight (kg)
857
1140
1930
2010
Shock absorber
–
Standard
–
–
Active steering of the frame
Standard
–
Standard
Standard
Central cardanic suspension
–
–
Standard
Standard
Rotors tyres
16x6.5-8
16x6.5-8
16x6.5-8 10PR
16x6.5-8 10PR
Main frame tyres standard
10/80x12
–
10.0/75-15.3 8PR
10.0/75-15.3 8PR
Main frame tyres optional
–
–
13.0/55-16
13.0/55-16
