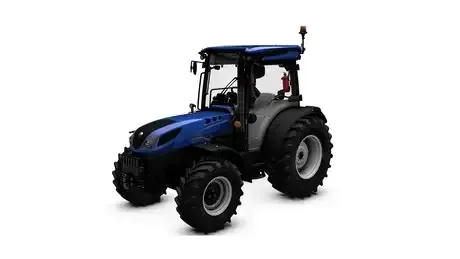

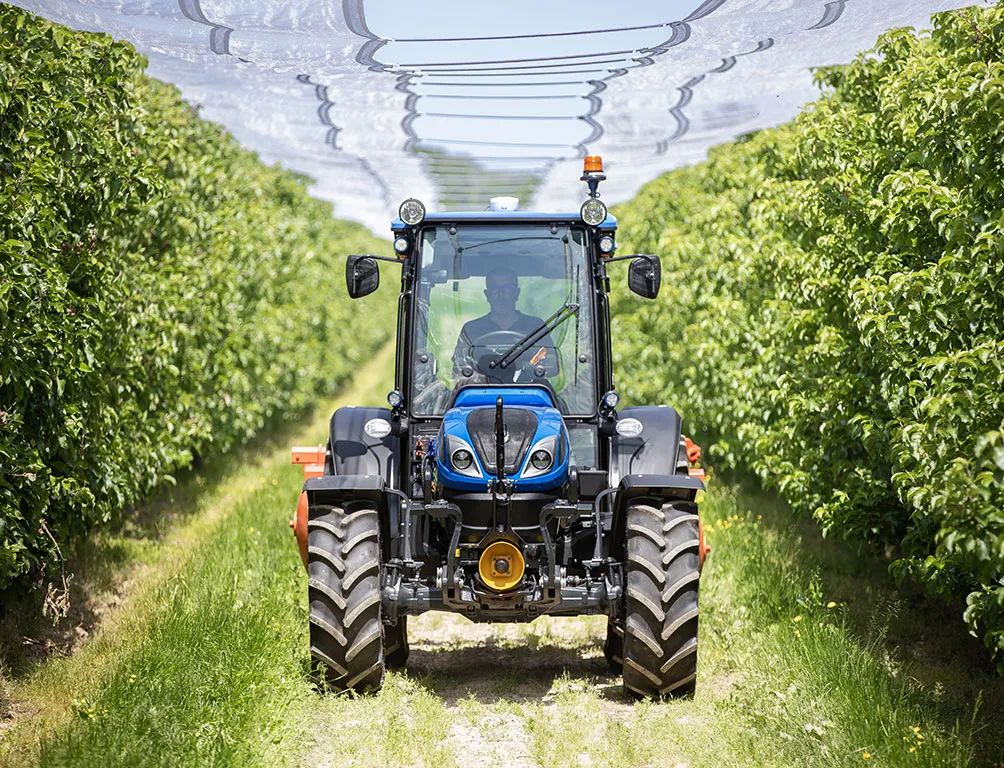

T4 LP

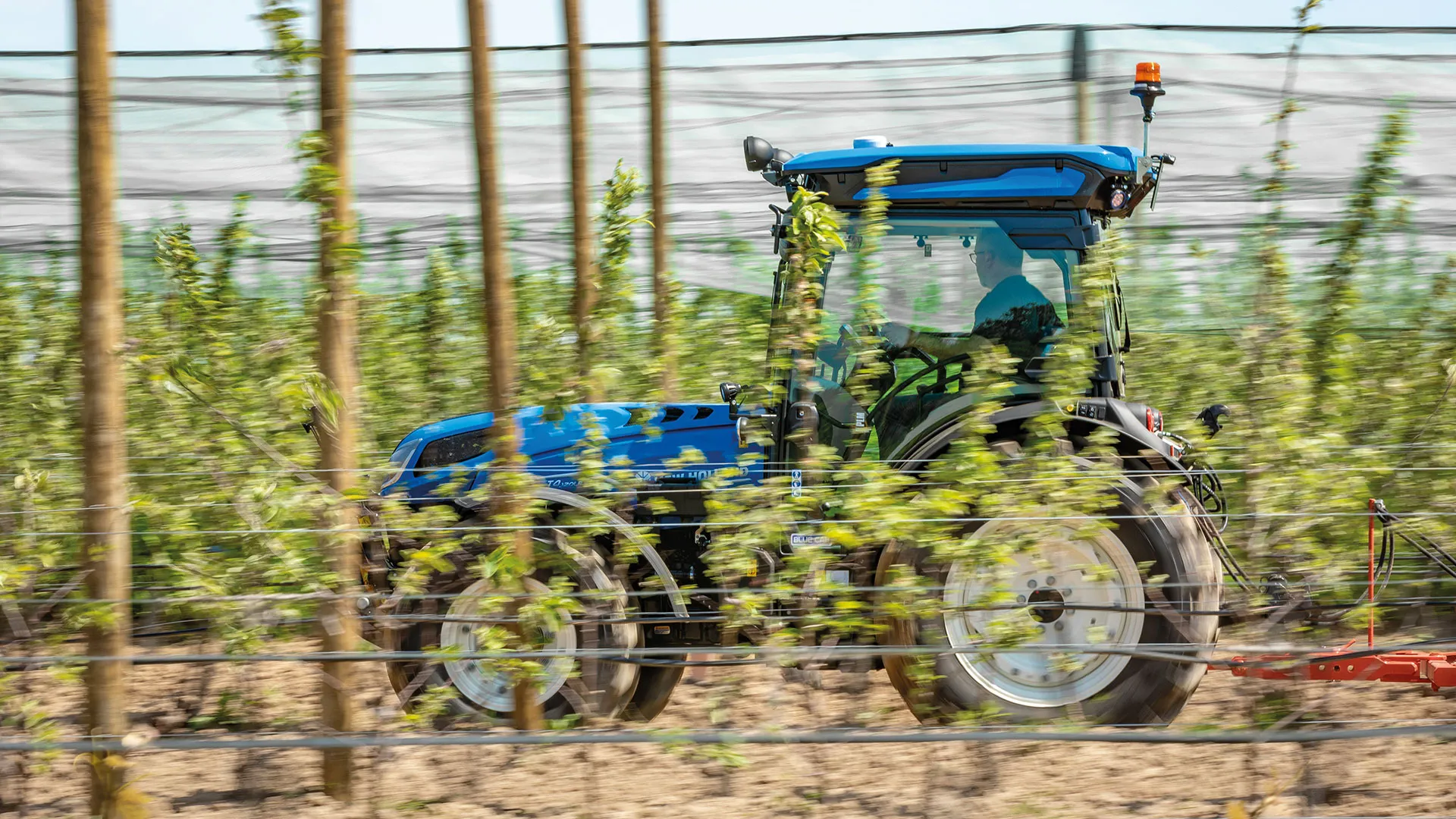

Blue Cab™ 4 is the best solution for operator safety. This significantly improved cabin offers the safest solution to our customers during phytosanitary applications. The entire cabin system was validated in the field with 20 different pesticides. The operator can activate it with a simple button in the cabin so that the category 4 filter is only used when necessary. Without this activation, the air passes through the Category 2 filter on the left side of the cabin roof. With the new digital dashboard onboard, the operator can also control pressurization level and carbon filter’ status.

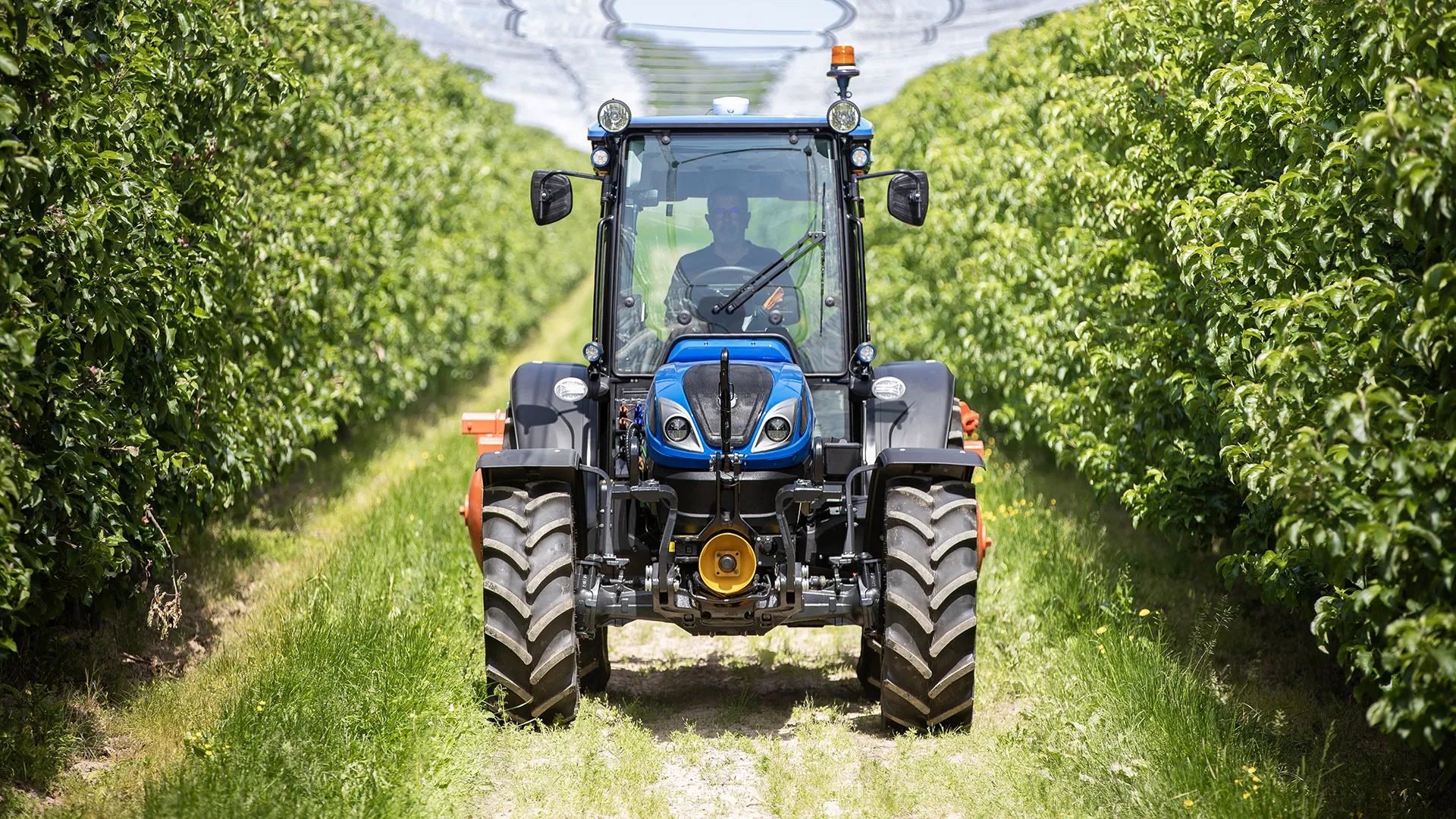

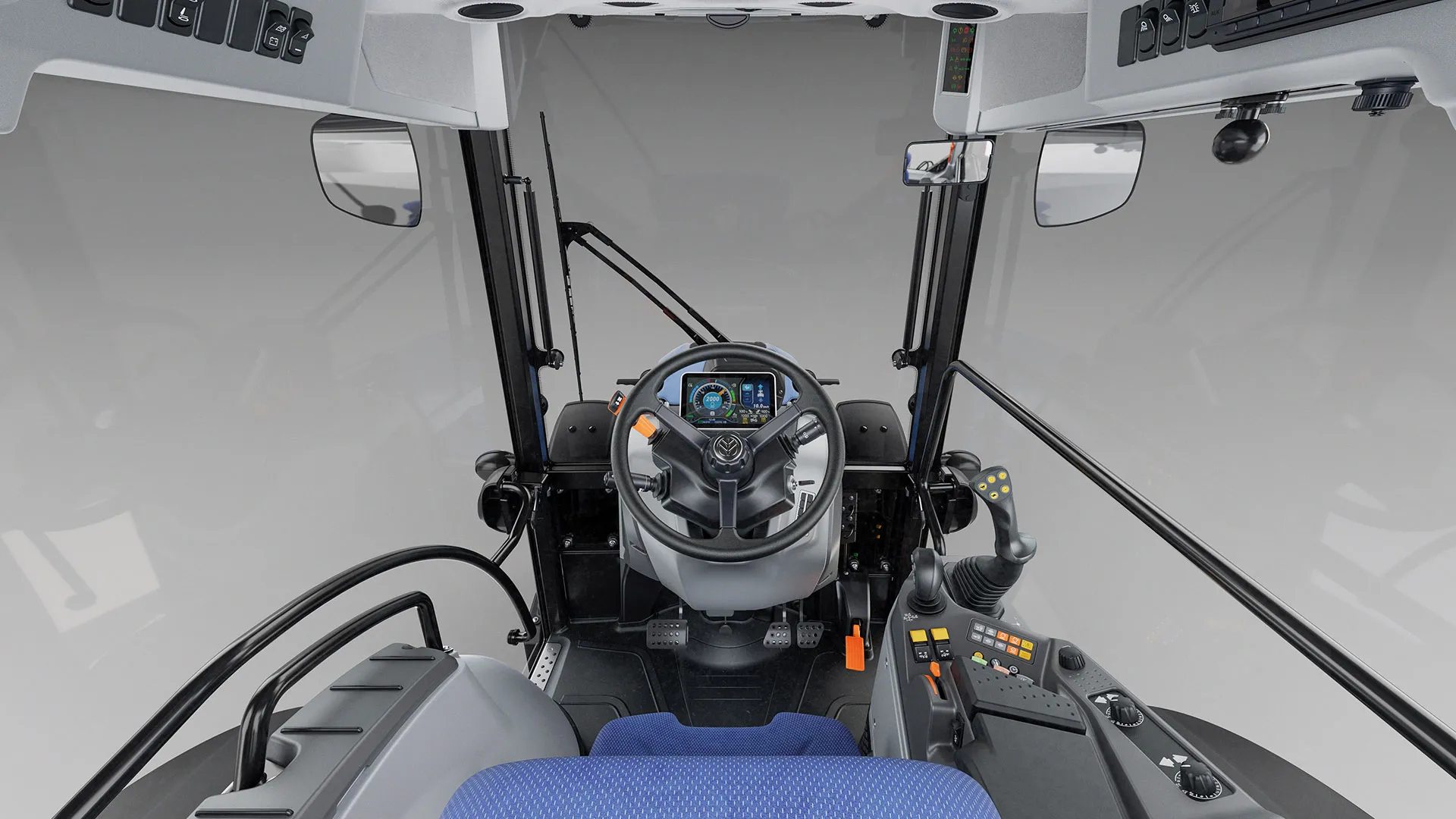

The VisionView™ cabin provides greater operator comfort with larger visibility. Equipped with 4 pillars, the new cabin provides 360 degree visibility. The front windscreen offers 20cm extra glass surface and allows better control over front implements. Lateral visibility is excellent thanks to the integration of the exhaust gas aftertreatment system under the hood. Fuel tank located in the front of the tractor completes to improve rear visibility.

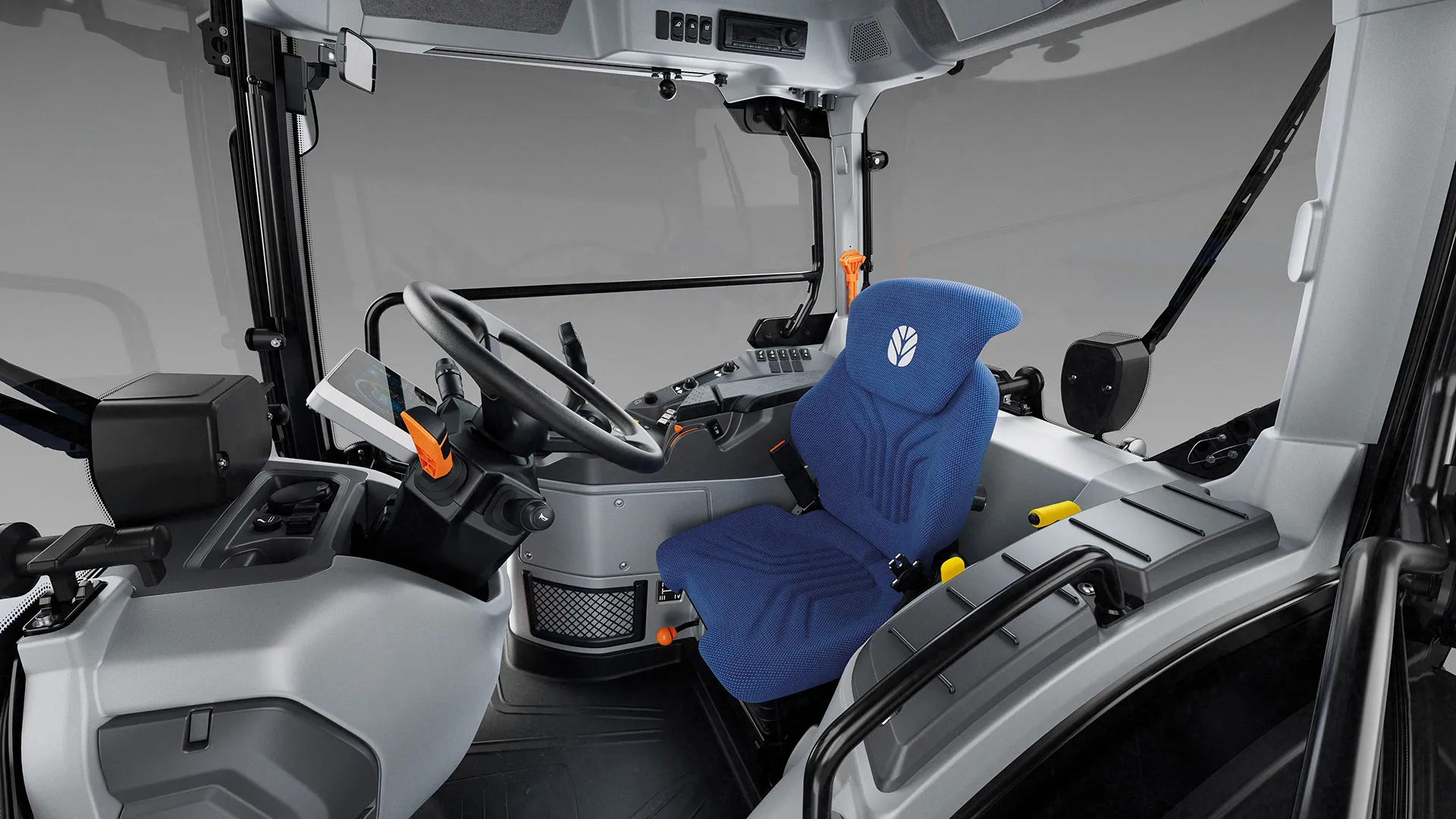

The new T4LP features a real flat floor. Access to the driving area is wide and easy, which allows to keep the ground clear and to leave more space at the feet of the operator. The entry and exit of the cabin are easier, without interference with the central tunnel. The brake and clutch pedals are suspended to keep the floor completely clear.

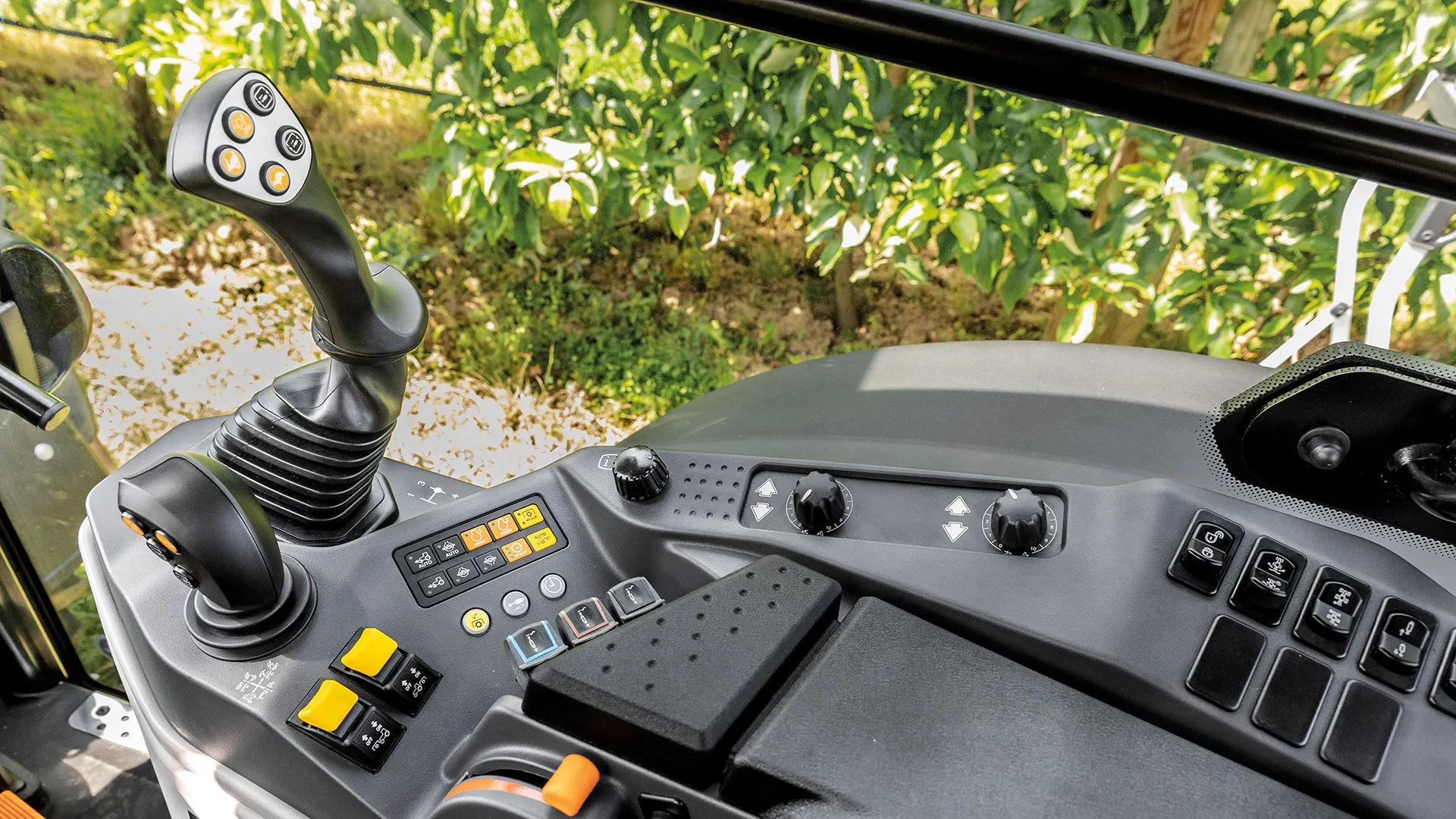

All controls are ergonomically positioned to the right of the operator. The clutch assistant on the gearshift allows seamless productivity, faster and easier passage of different gears. The driver space has been enriched with new materials and buttons, USB connectors, electrical outlets, storage compartment. All hydraulic controls and transmission have been re-installed around the driver for greater comfort. A new screen with up to 8 settings help keep everything under control.

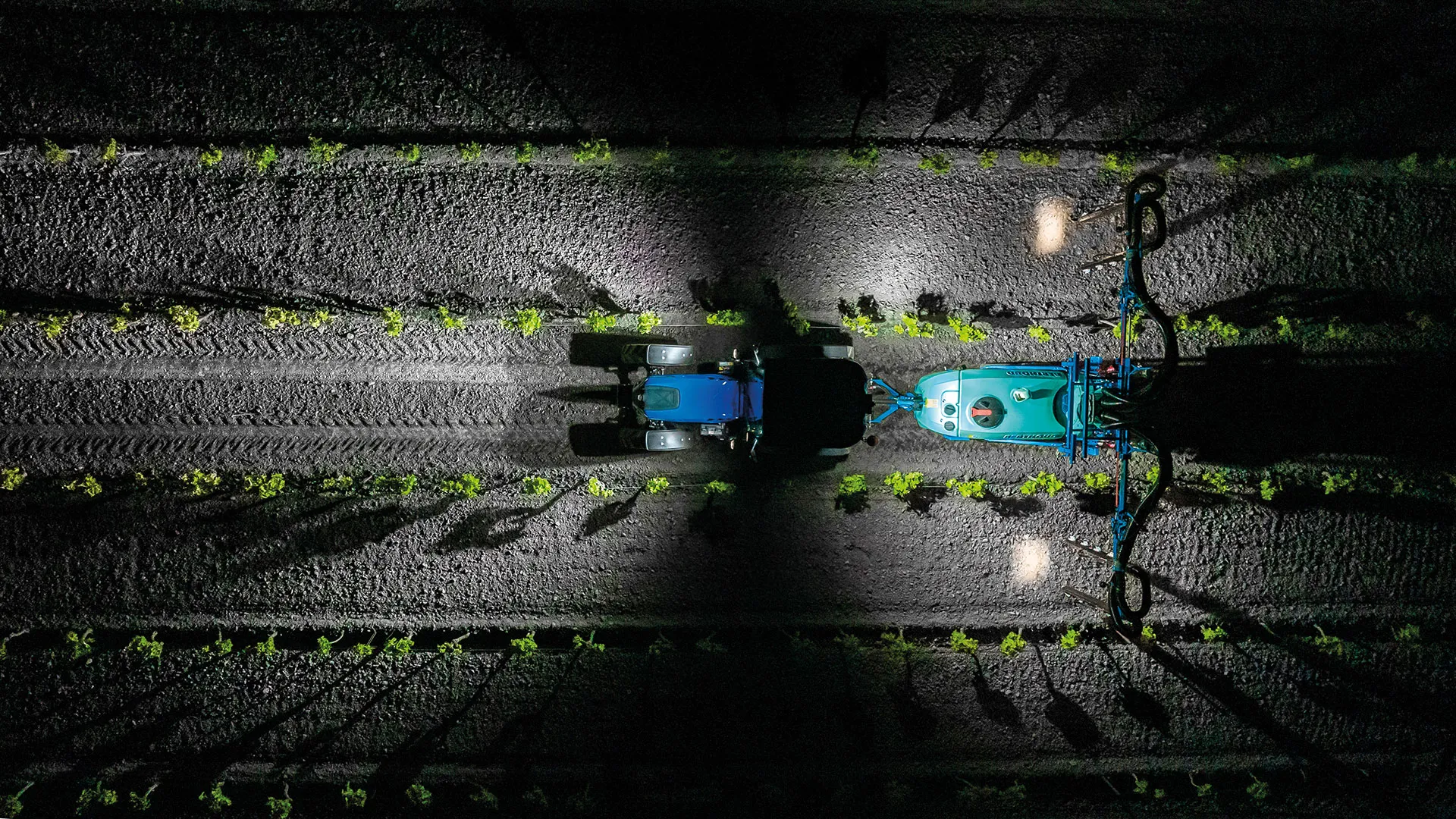

The lighting package provides a high level of brightness. The Optional LED light diffusion has been designed for maximum visibility of the entire machine and work area. A total of 8 working lights provide optimum visibility for all types of work in all types of orchards.

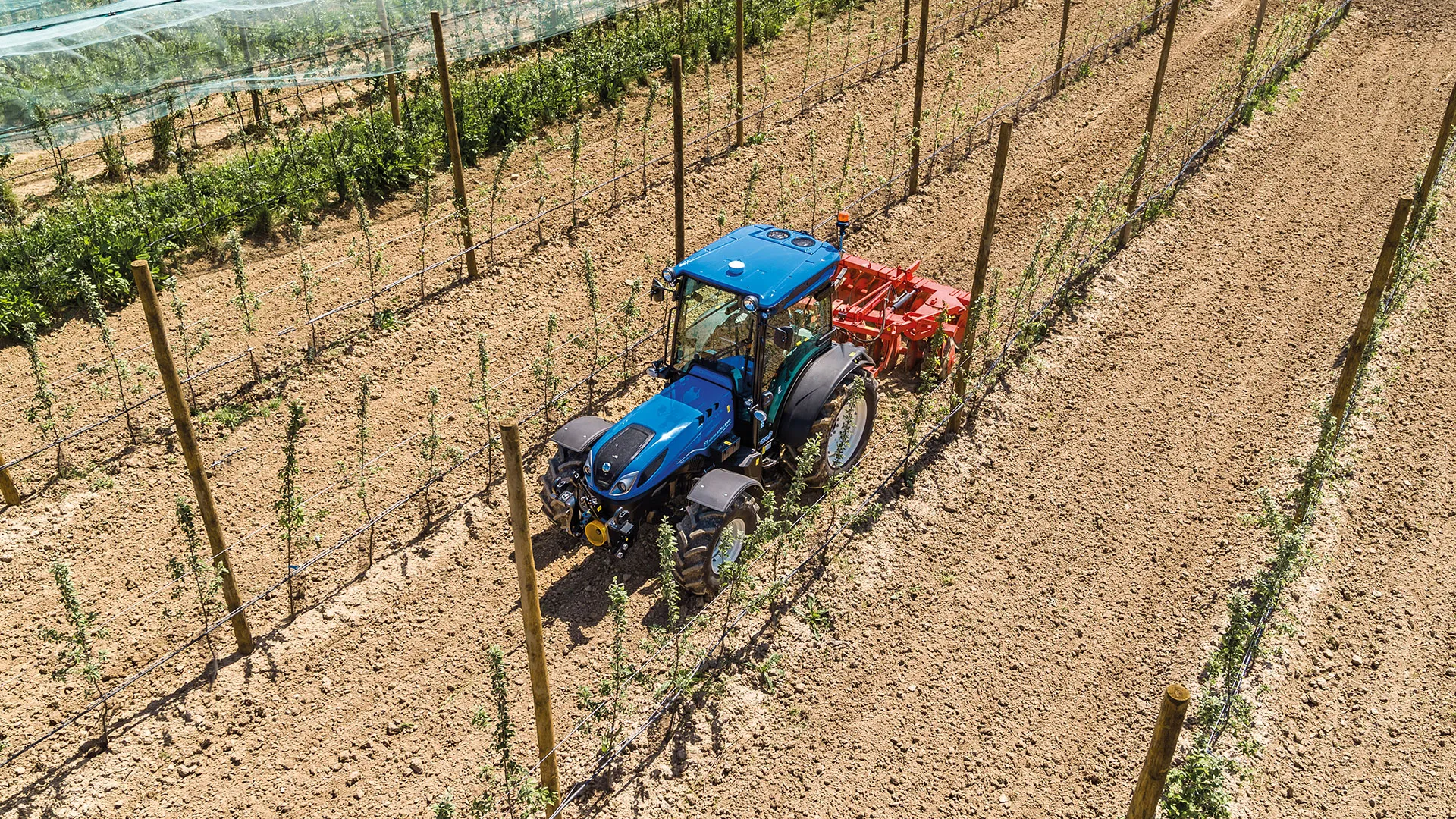

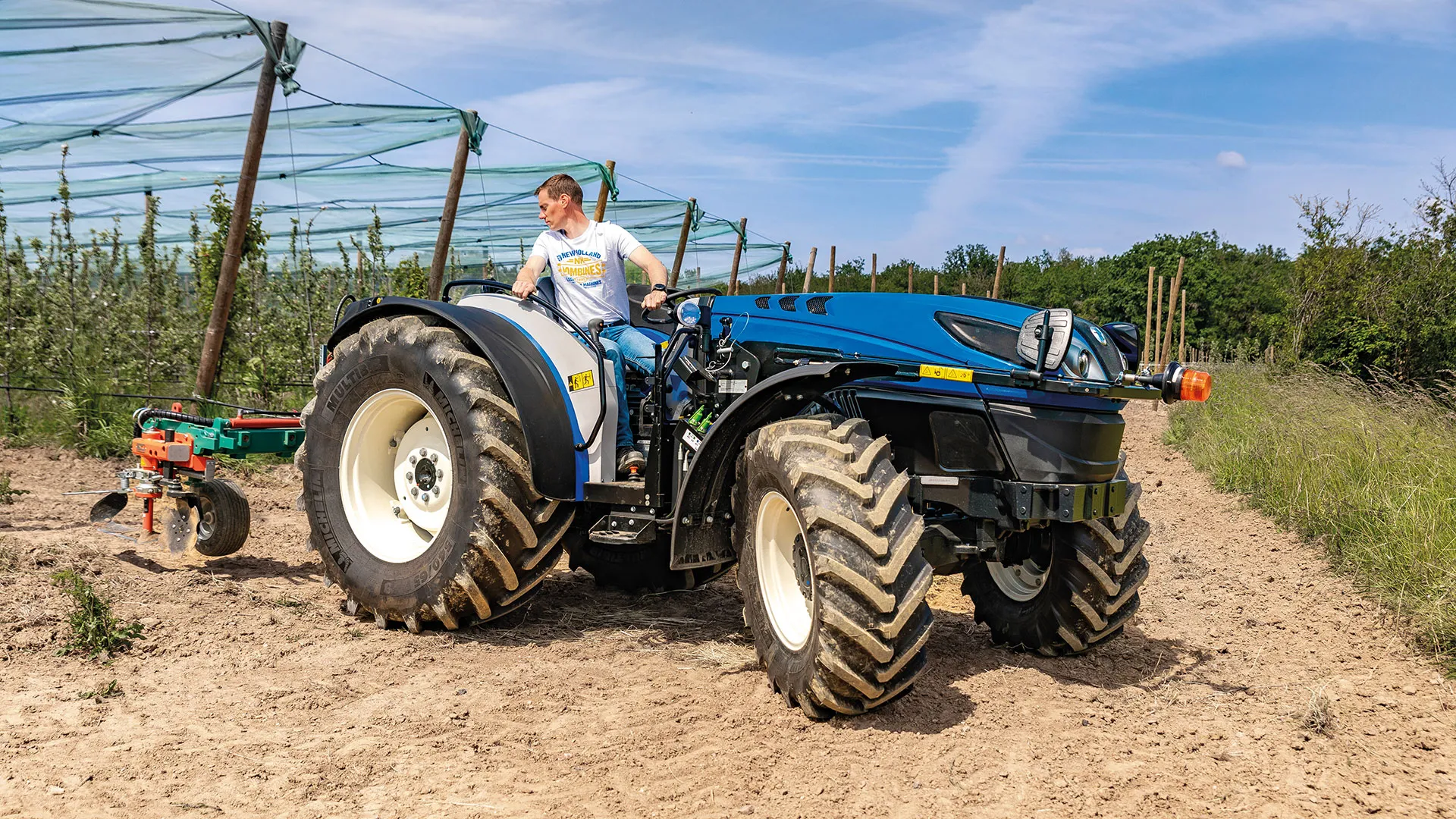

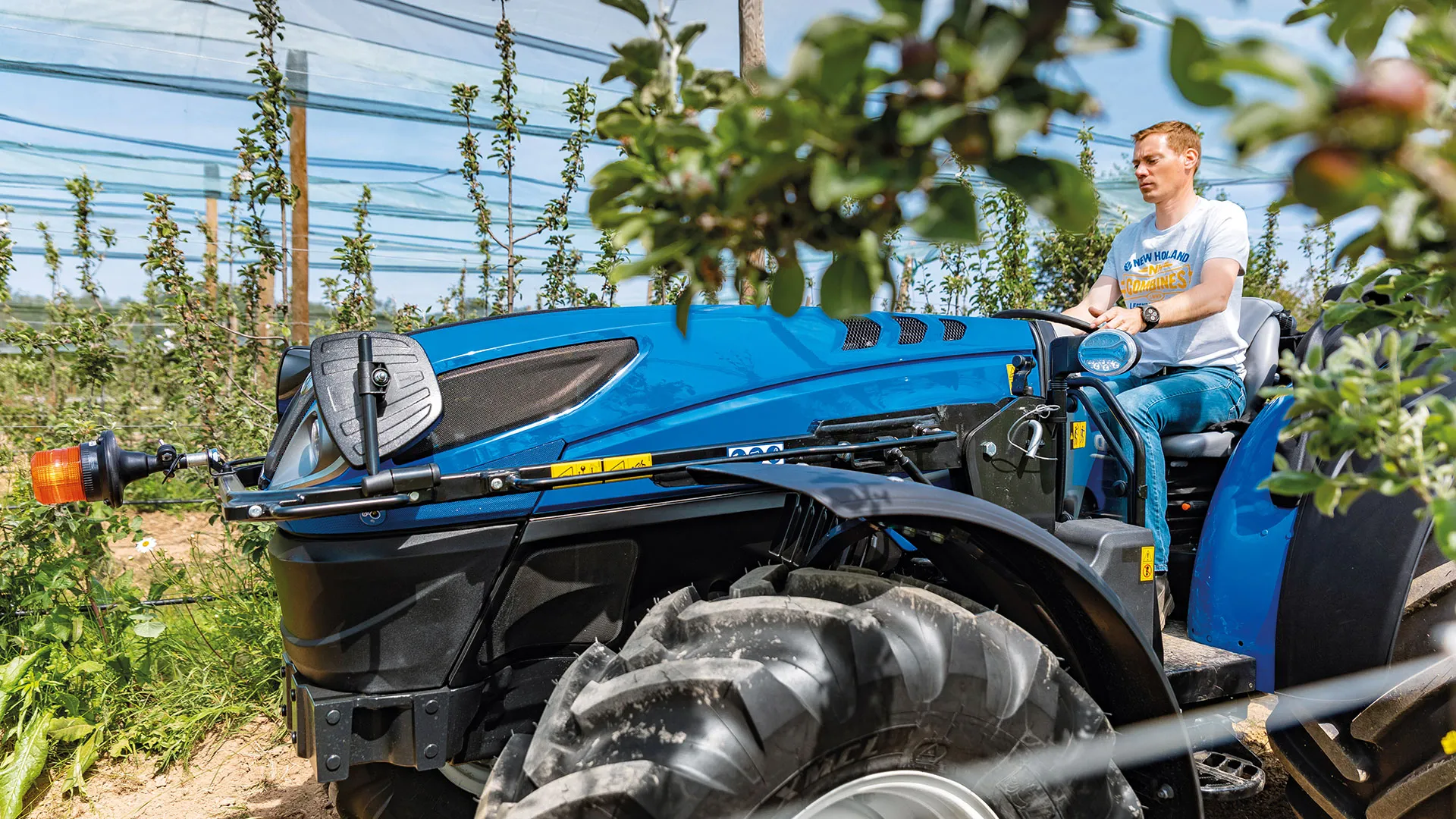

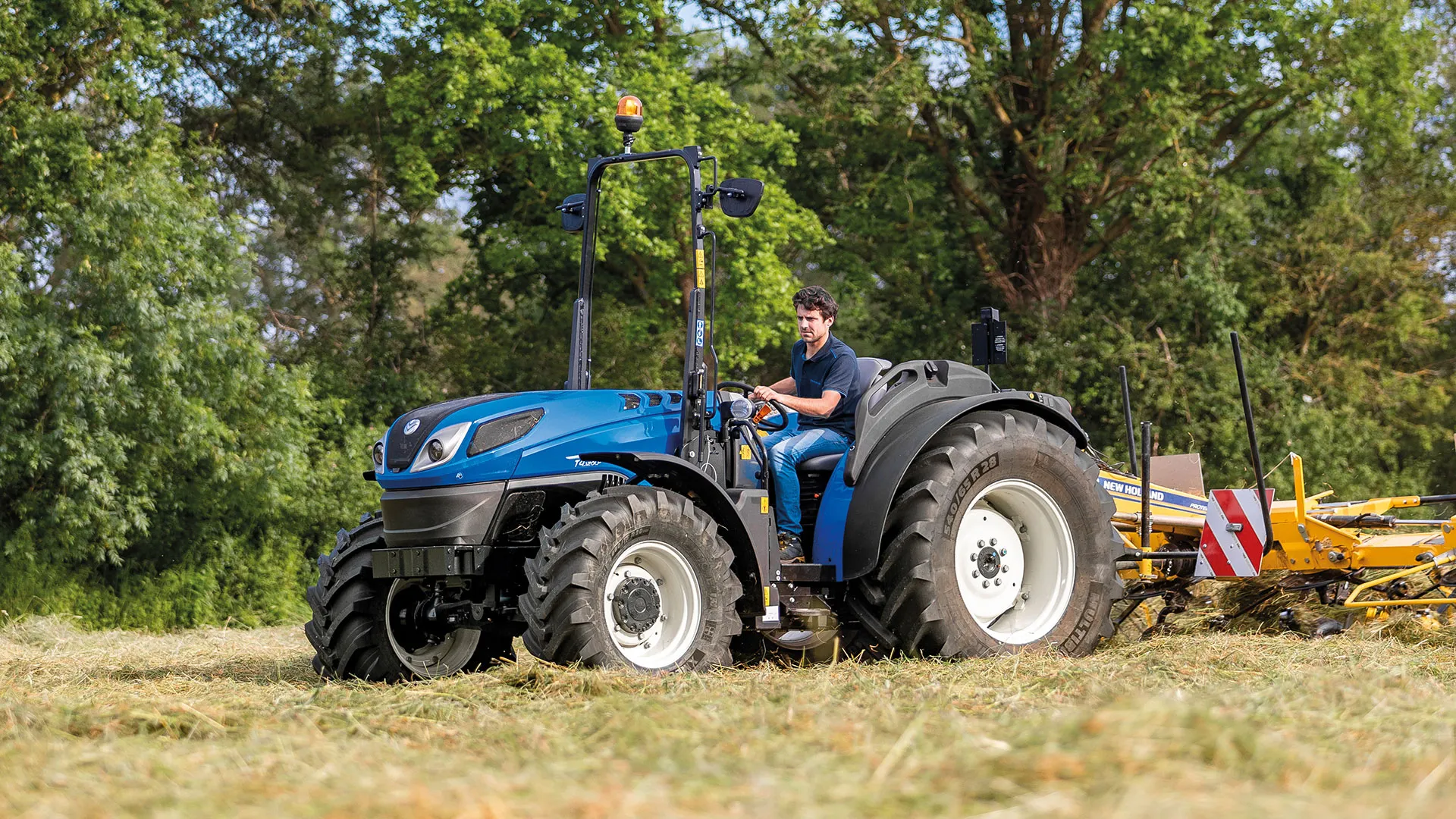

This specialised tractor is designed for orchards, olive groves and broad-row vineyards. The ROPS version is conceived to suit all kind of orchards. Its lower platform enables driving under tree branches. Height of the access platform is also decreased in order to fit easily the tractor while guaranteeing operator’ safety.

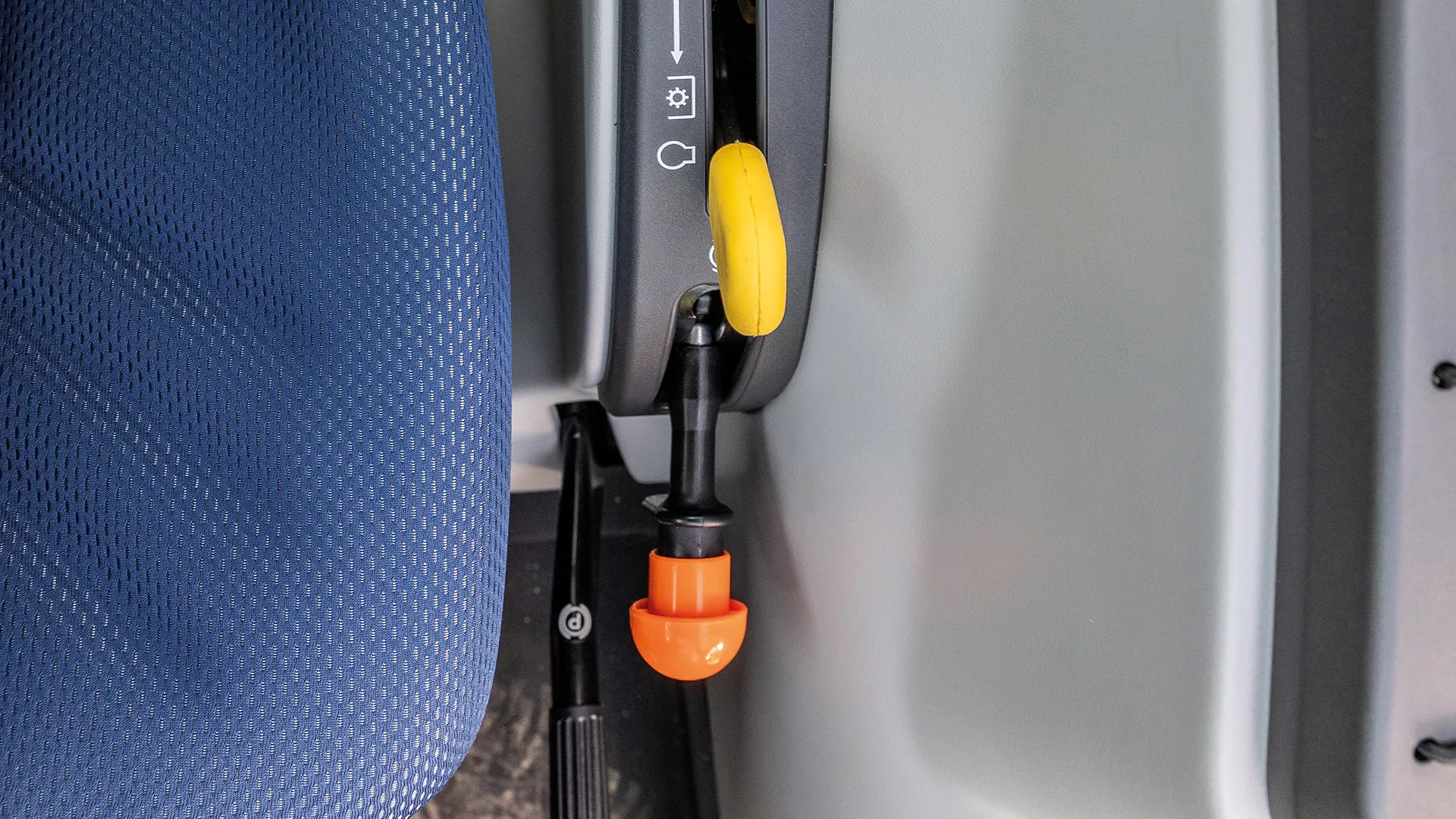

A parking brake is available on the Dual Command™ versions and provides additional security on the slopes. The transmission is mechanically locked from a lever in the cab.

The T4LP can be equipped with the new Comfort Ride™ cab suspension. This new system awarded at the SITEVI show 2023 reduces cab vibrations by up to 60% on the road and 15% in the field without generating lateral movements. This new feature provides a lot of comfort using simple and proven design. The system uses front silent block and a combination of hydromechanical shock absorber and Panhard bar at the rear. All these elements allows the Comfort Ride™ system to absorb vibrations, shock and oscillations. The cab suspension is easily adjustable in 5 different positions to maximise the performances in all conditions and to facilitate the operation, a visual indicator on the rear left hand side of the cab.

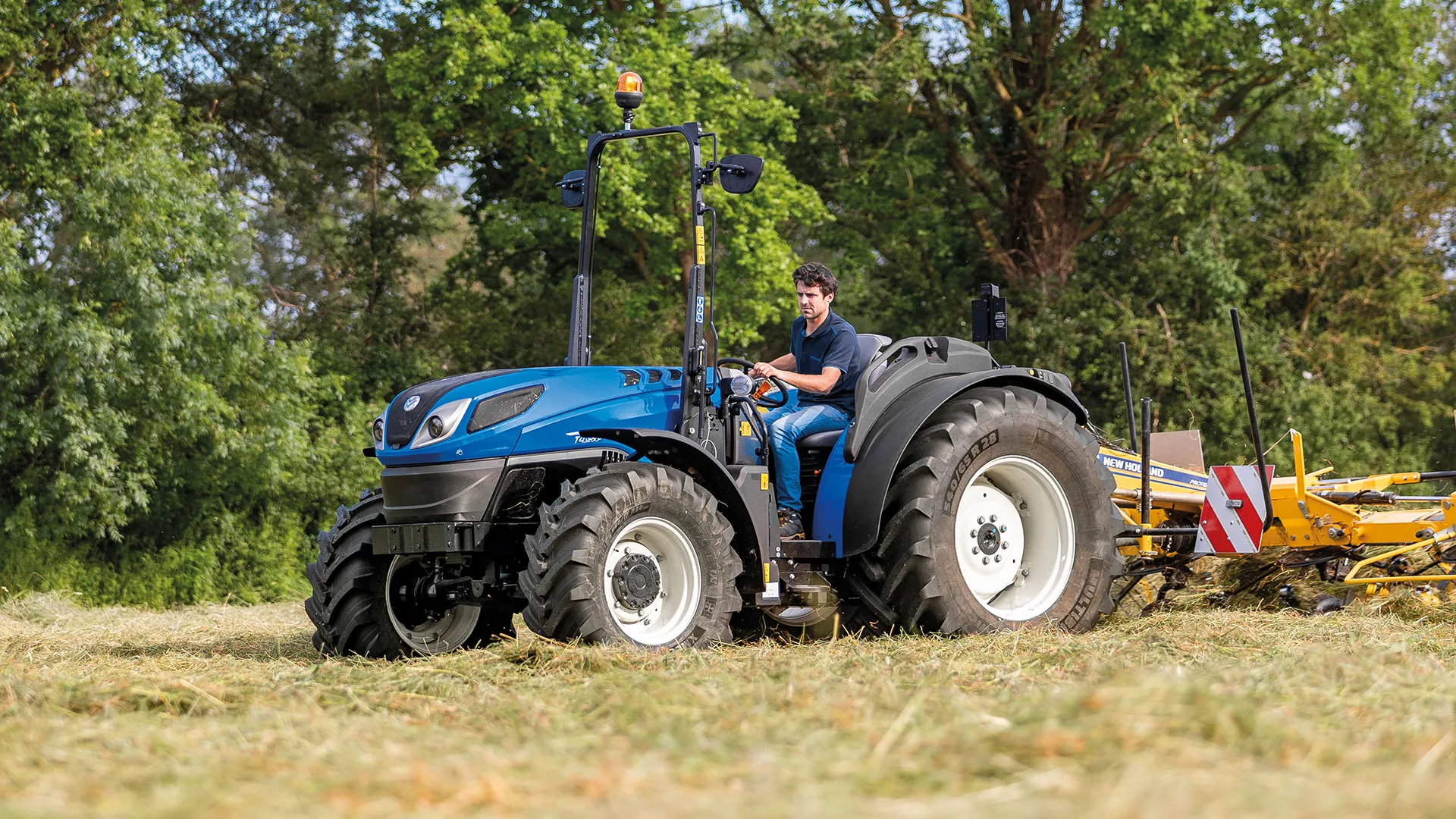

New Holland offers a wider range of tyres on its T4LP to adapt to the highest load capacity and to work with larger tools, heavy worn tools and to meet the need to work on the steepest terrain due to the low gravity center of the tractor.

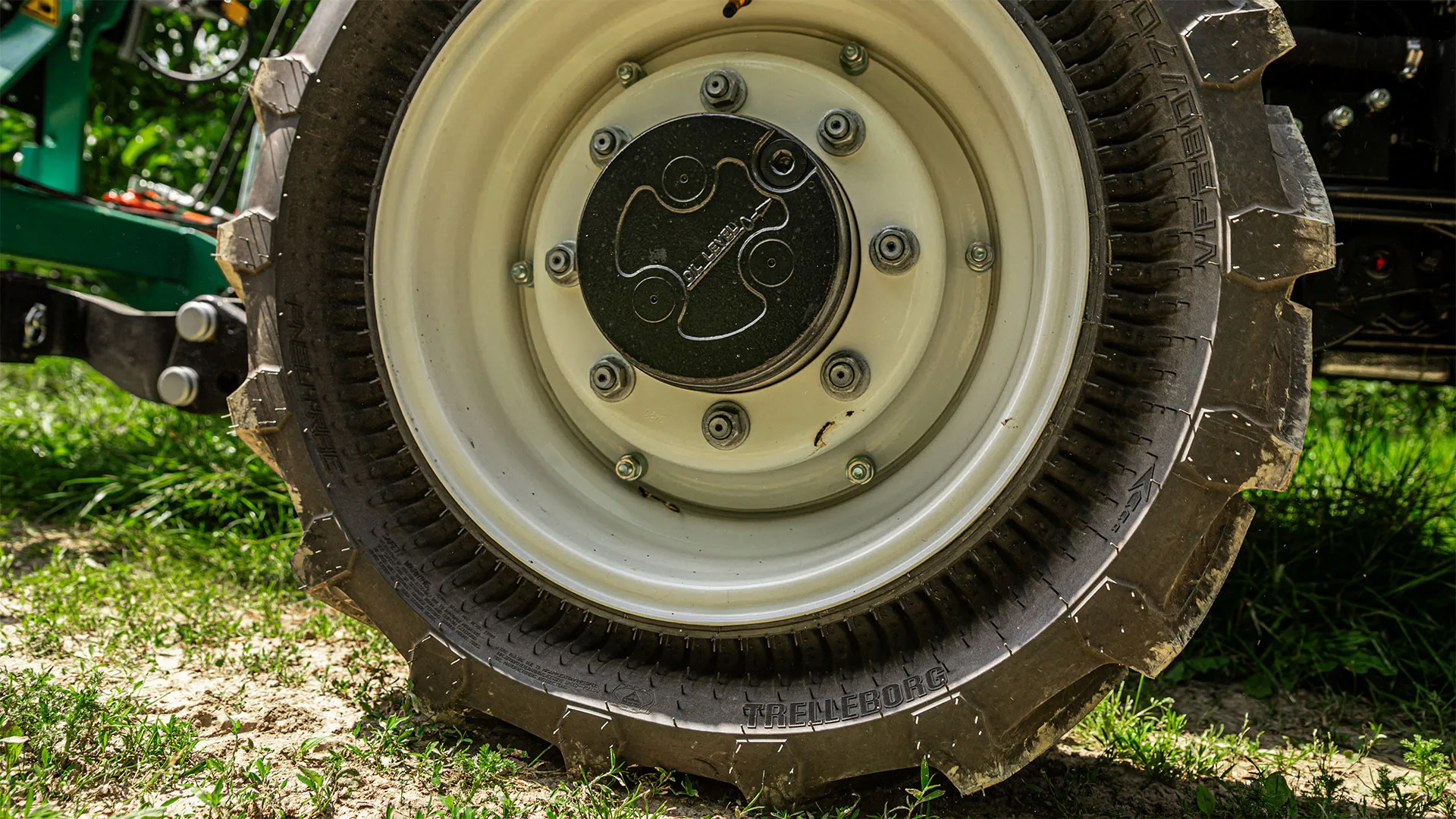

The Trelleborg PneuTrac™ hybrid tyres available on the T4LP Cab combine the benefits of a radial agricultural tyre in terms of efficiency, comfort and maneuverability with the wide footprint and traction benefits of a track.

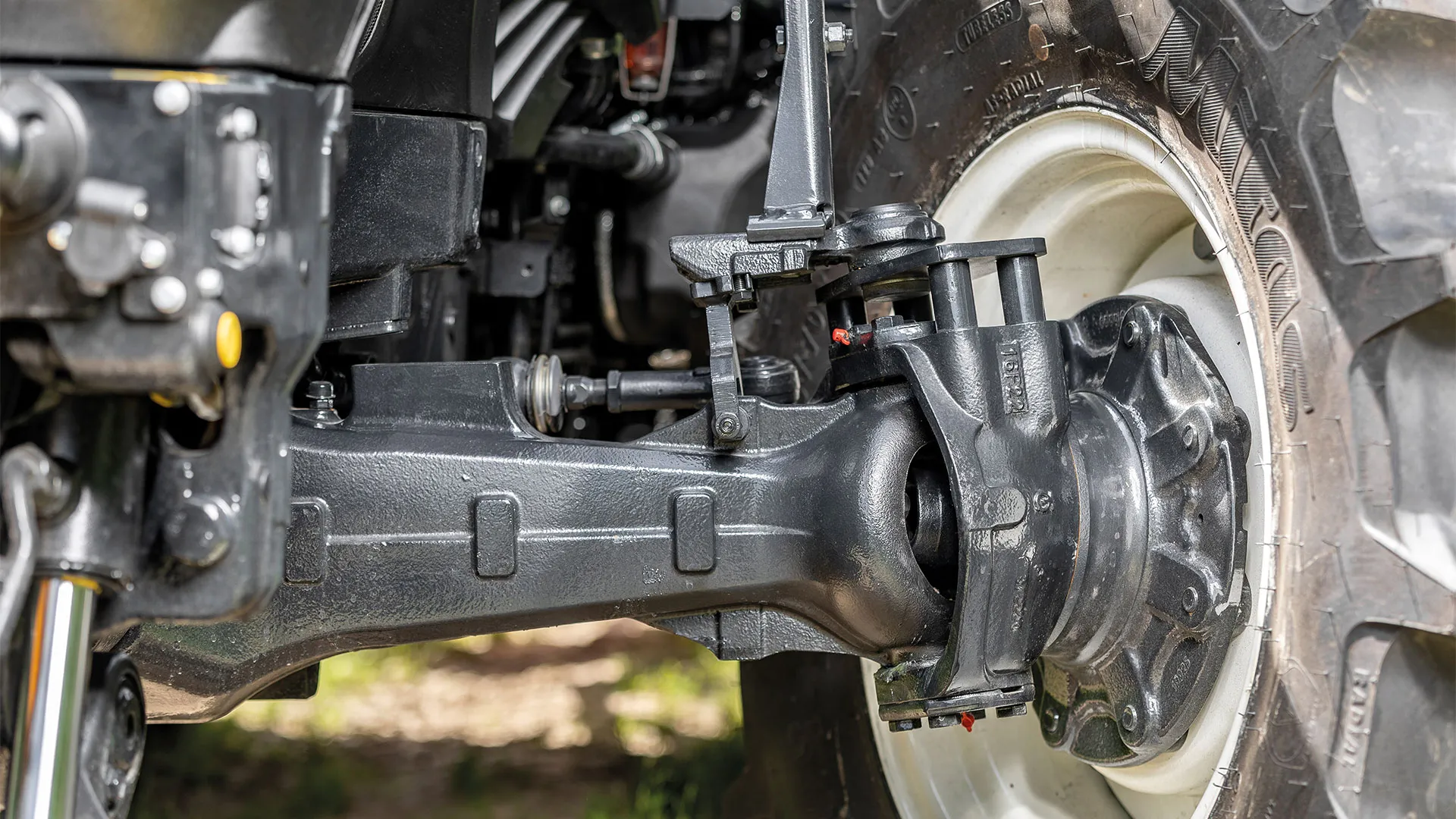

The new T4LP proposes a wide range of front axles to meet the requirements of each user. This large offer allows the T4LP to mount larger tyres, in order to have a wide tractor for orchards and mixed farms. The T4LP presents 1460mm or 1584mm front axles, which enables to drive above 1,50m cultures width as salads. Rear axle is very well adapted to vegetables growers thanks to his height lift capacity up to 2520kg.

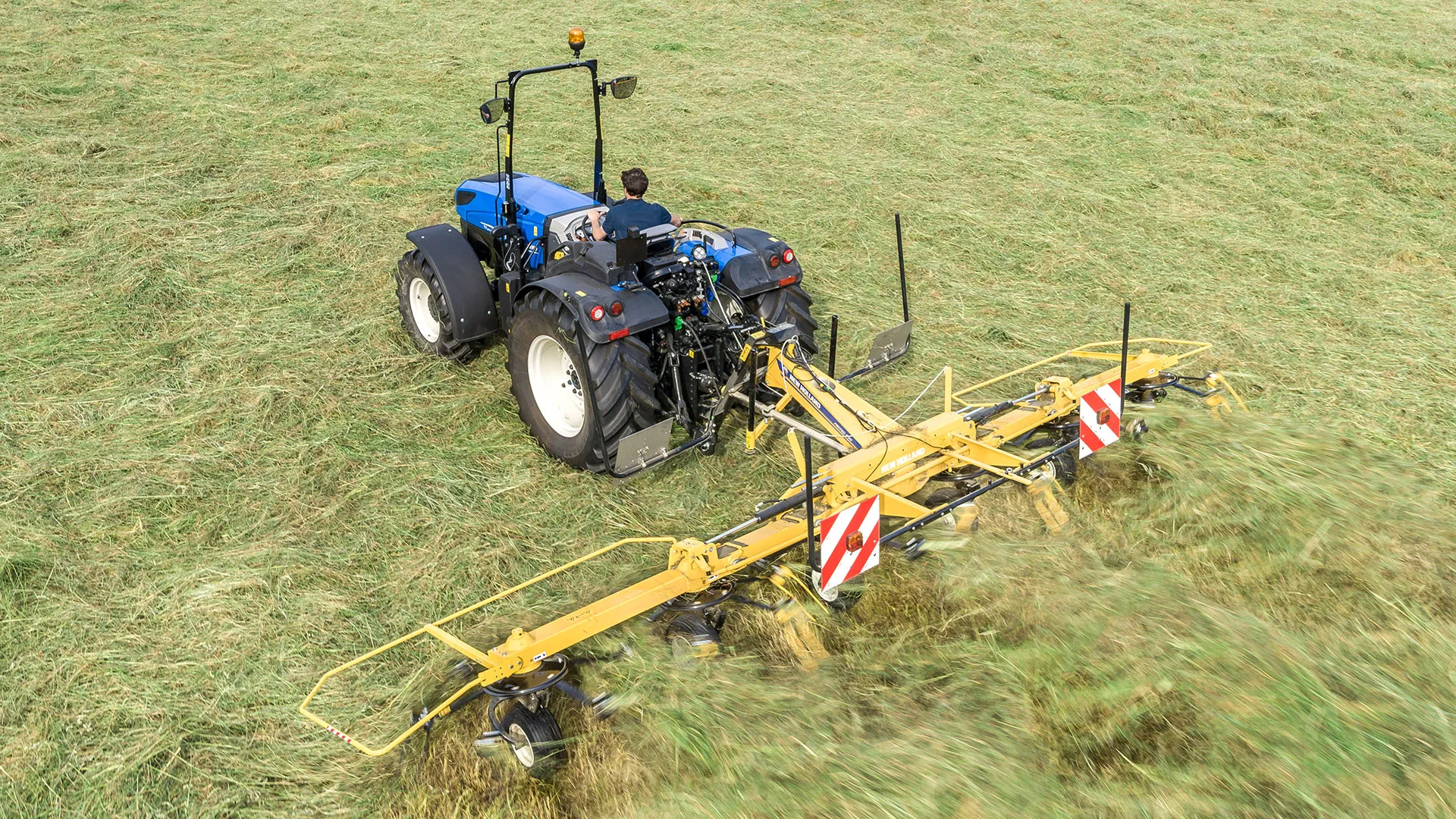

The wider axle of 1584mm can offer a front brakes system to ensure extra safety requirements on hilly conditions. Operate heavy implements is possible everywhere!

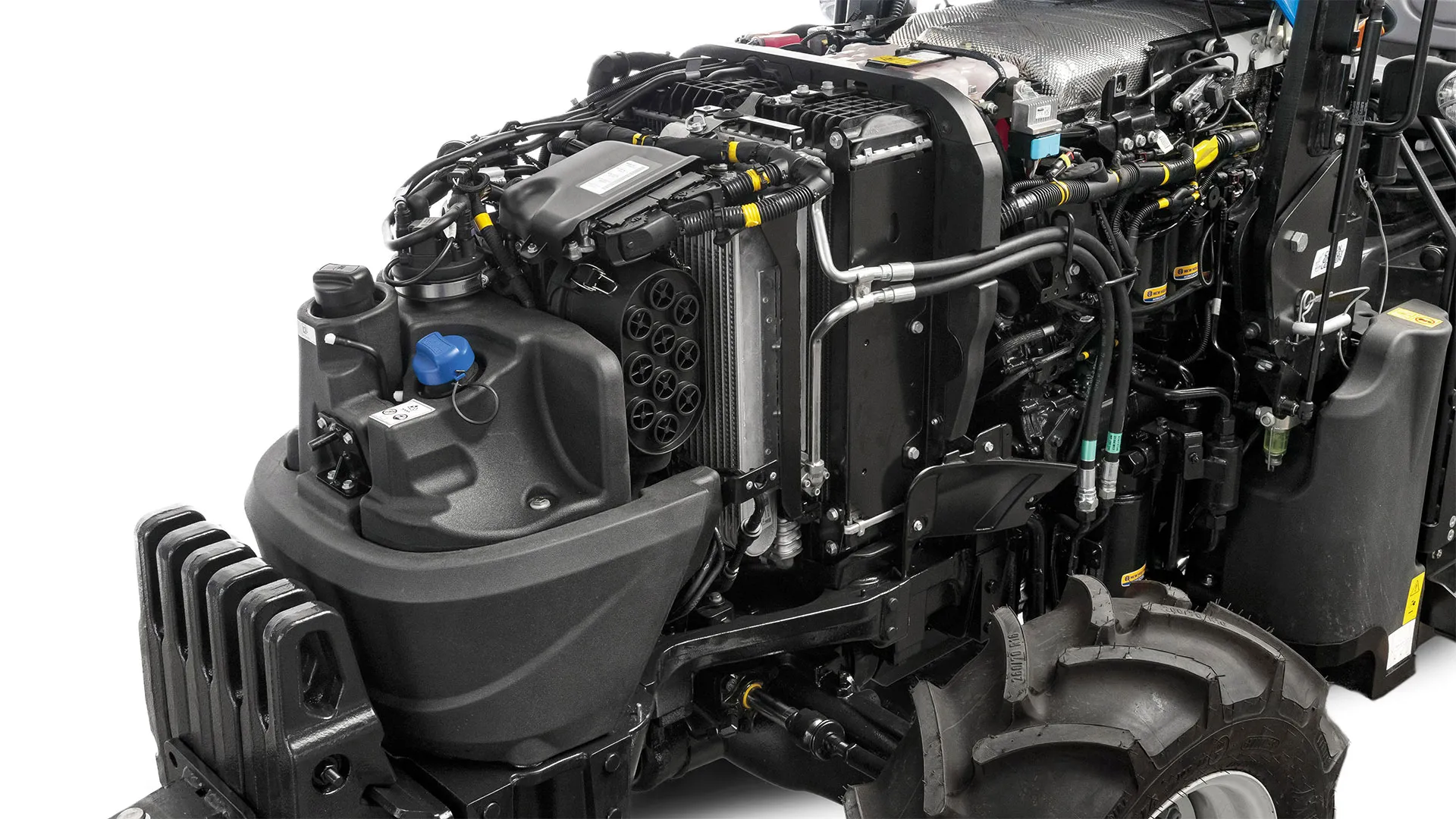

The T4LP series complies with Phase V emission standards. The T4.90 models and beyond are equipped with the HI-eSCR Compact technology developed by FPT Industrial to meet these standards in a 3.6L engine. In the T4.80 models we use a F34 engine with no urea. In 16 years, the emissions of FPT Industrial engines have been reduced by 40 times to cut down the carbon footprint.

The PTO design for Powershuttle includes a selector to ensure the smoothness when starting the PTO. It allows an engagement depending on the implements: 3 modes are available to ensure a progressive start of the PTO, soft whatever the implement used. The speed selector is inside the operator station. The comfort for the driver reaches high levels and the reliability is a fact basis on the new wet PTO clutch.

The award-winning hydraulic lift mechanical control system allows the rear lift to be raised or lowered during headland turns while maintaining position and effort settings. As soon as the lever is released, the tool immediately stops at its height. The height can be adjusted by slight pushing or pulling movements on the same lever. A slight push or pull of this lever grants minor adjustments. For cab version, the electronic controls are available.

The new T4LP benefits from a superior hydraulic system incorporating a powerful 80-litre-per-minute pump. As all New Holland tractors, the power steering system operates with a separate pump, ensuring that the required flow rate is obtained with the controlled pump capacity. The PTO is electro-hydraulic activated and provides wet clutches, for more reliability. The three different settings to start the PTO system enable the operator to activate big and heavy implements.

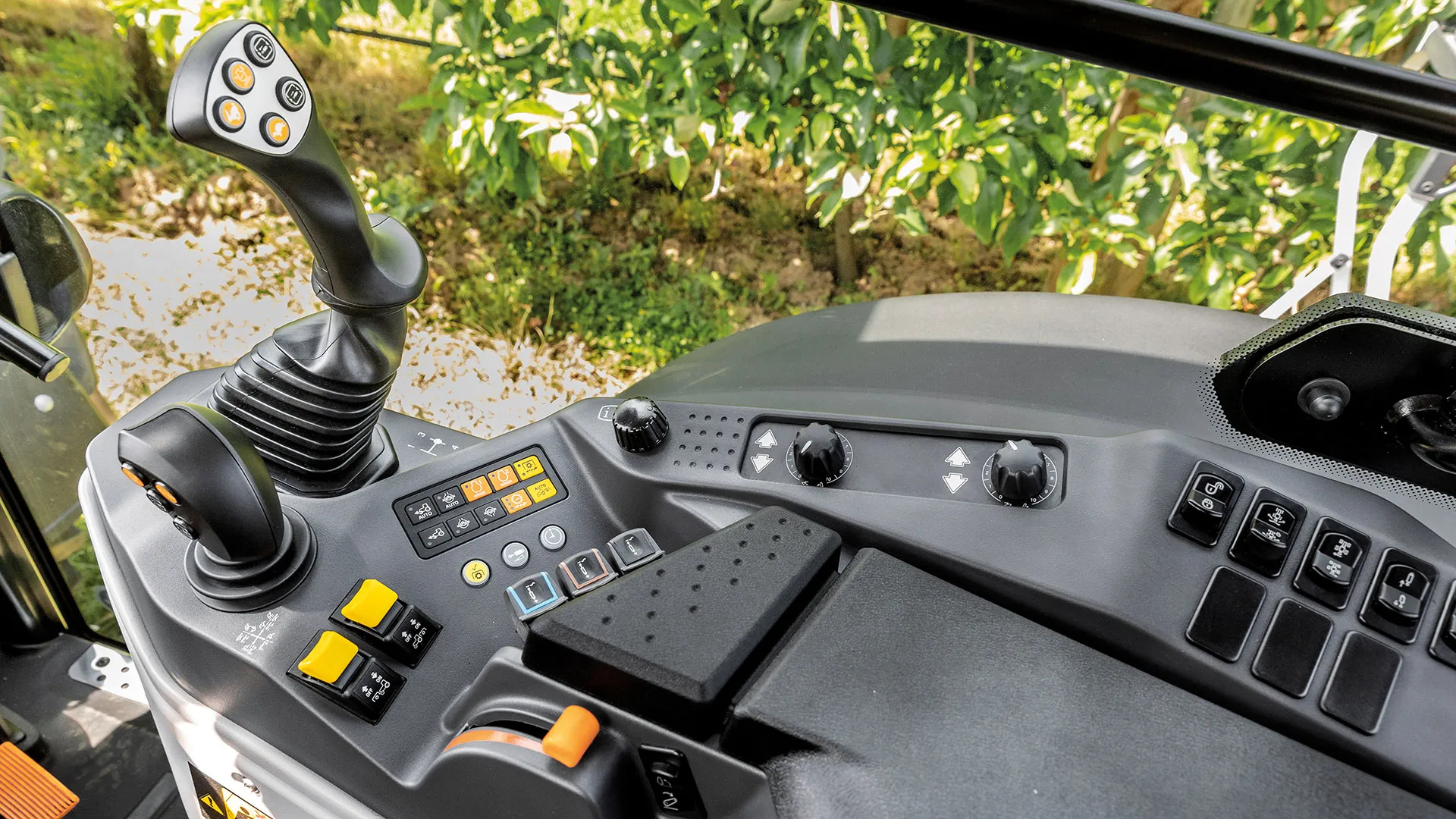

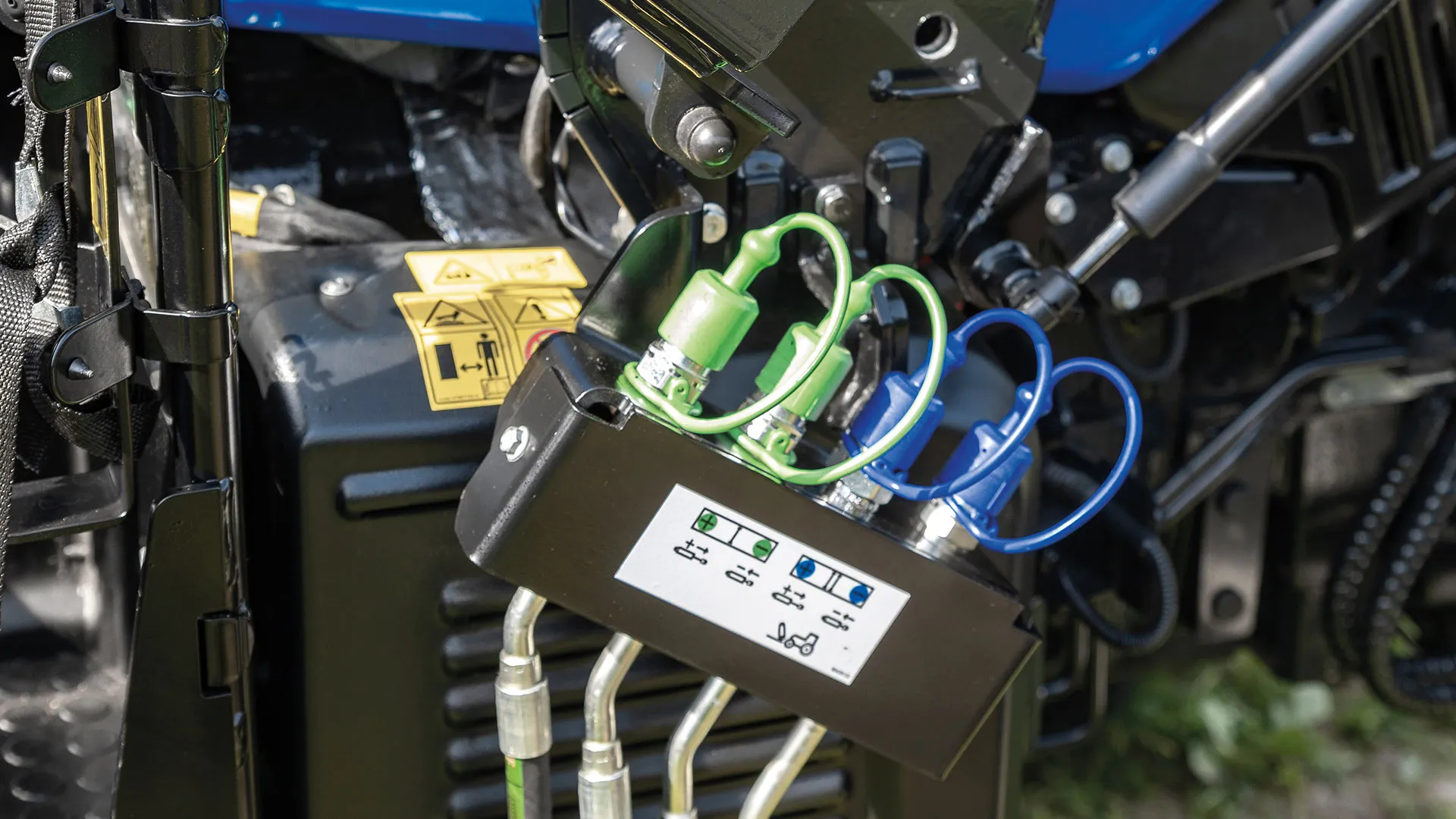

T4LP Cab version offers the EDC controls for rear lift: more comfort and easy operations with external controls for rear lift adjustments. The 4 electronic rear remotes can be regulated in time & flow 0-80 l/min; and the electronic multifunction joystick increases the versatility and productivity working with ventral & front implements. Free oil returns are available for heavy hydraulic applications.
