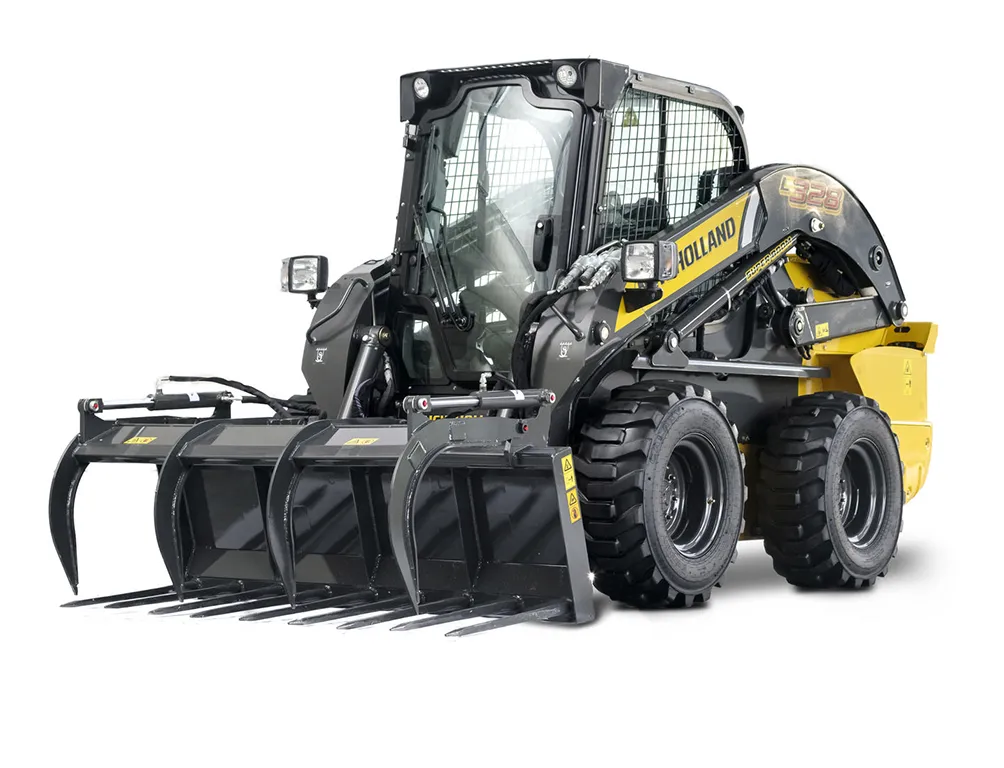

300 SERIES SKID STEER LOADERS ＆ COMPACT TRACK LOADERS

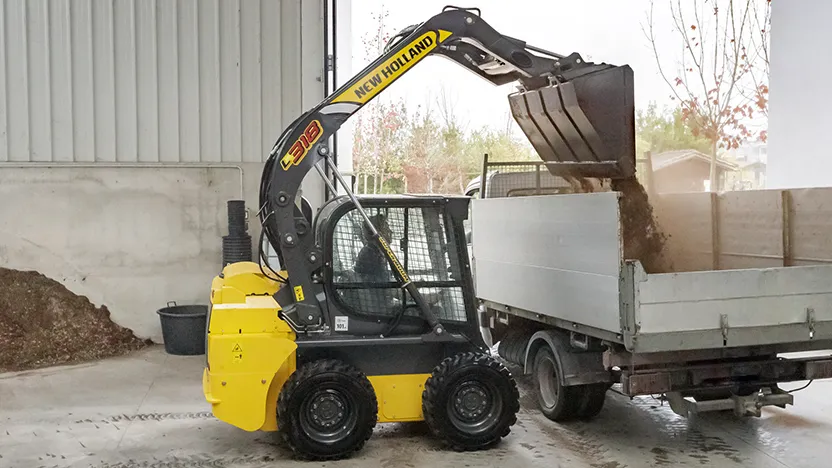

The reliable hydraulic system delivers responsive controls and fast cycle times. In-line hydraulic pumps produce less noise and provide extra smooth operation. Add the optional high-flow hydraulics on all models to run attachments hour after hour.

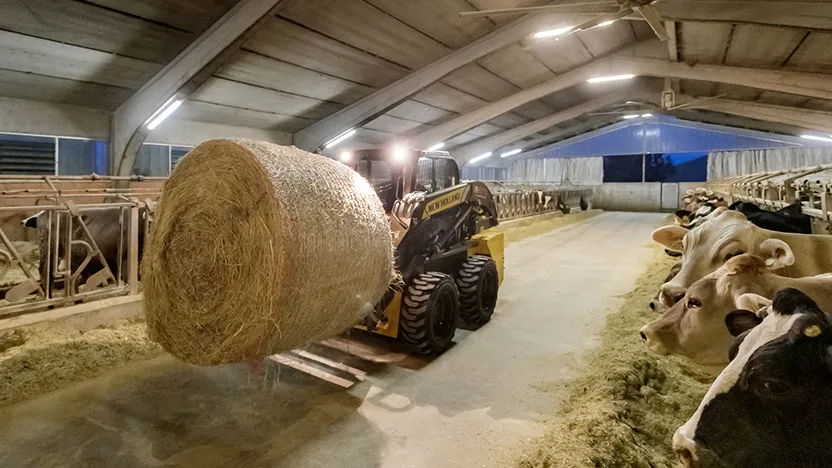

The 300 Series dual-range transmission provides travel speeds in excess of 17kph (13kph on compact track loaders) to save time on and between job sites. The dual-range transmission is standard on the L320, L321, L328, L334 and all compact track loaders.

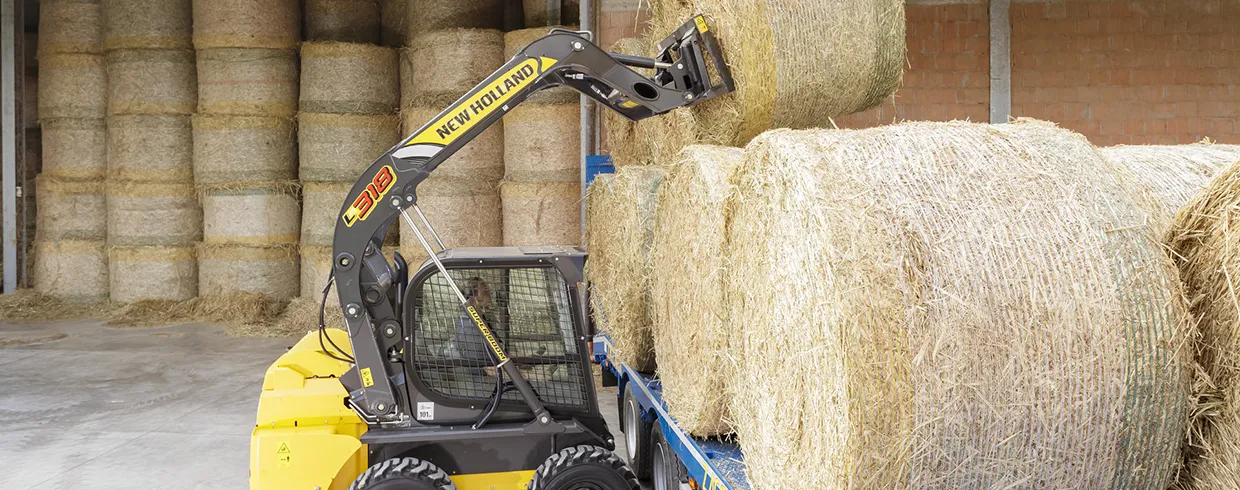

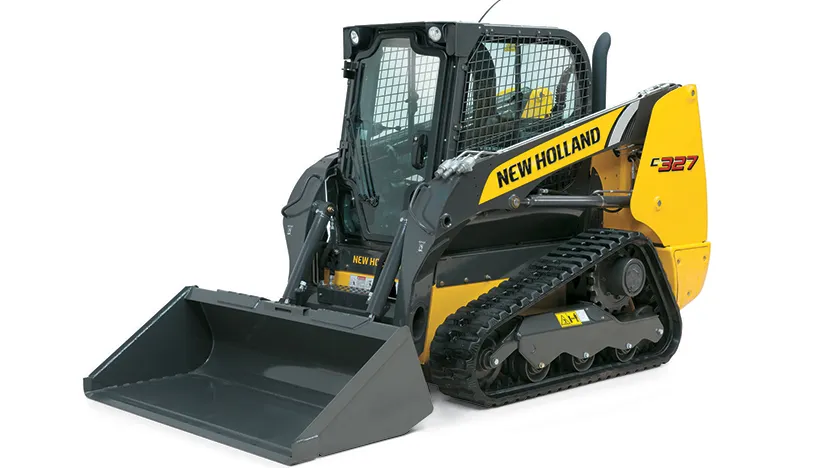

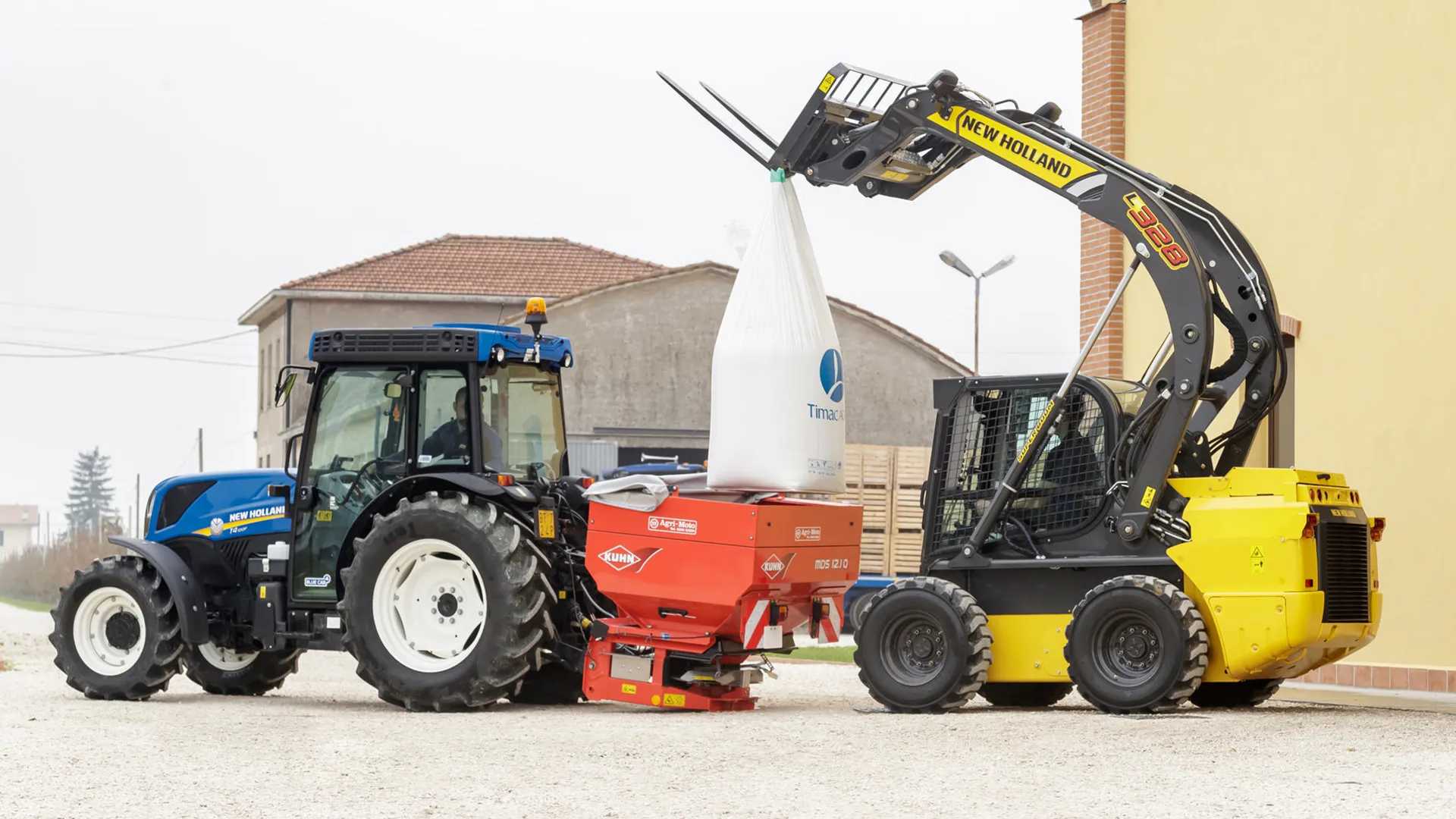

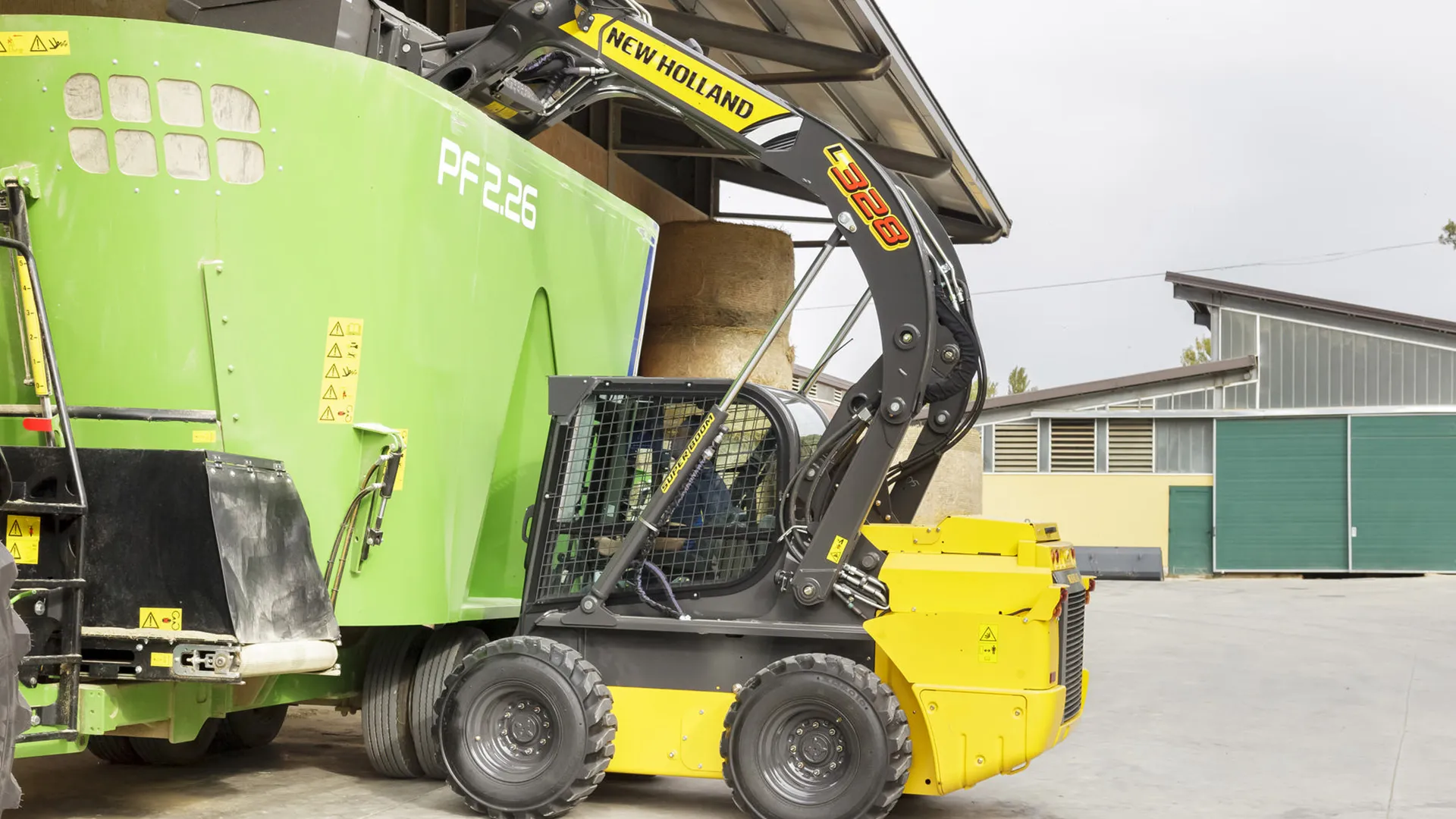

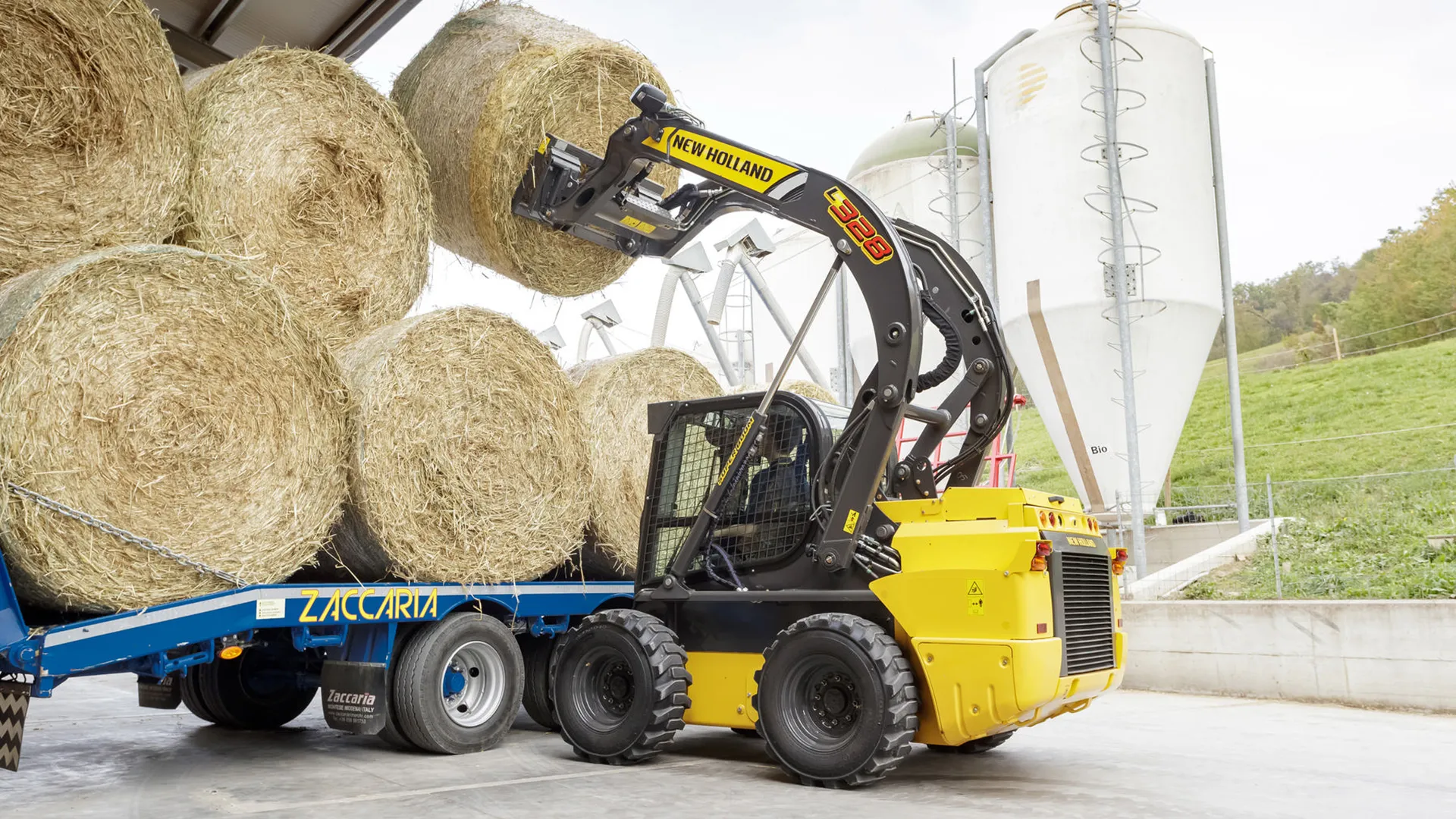

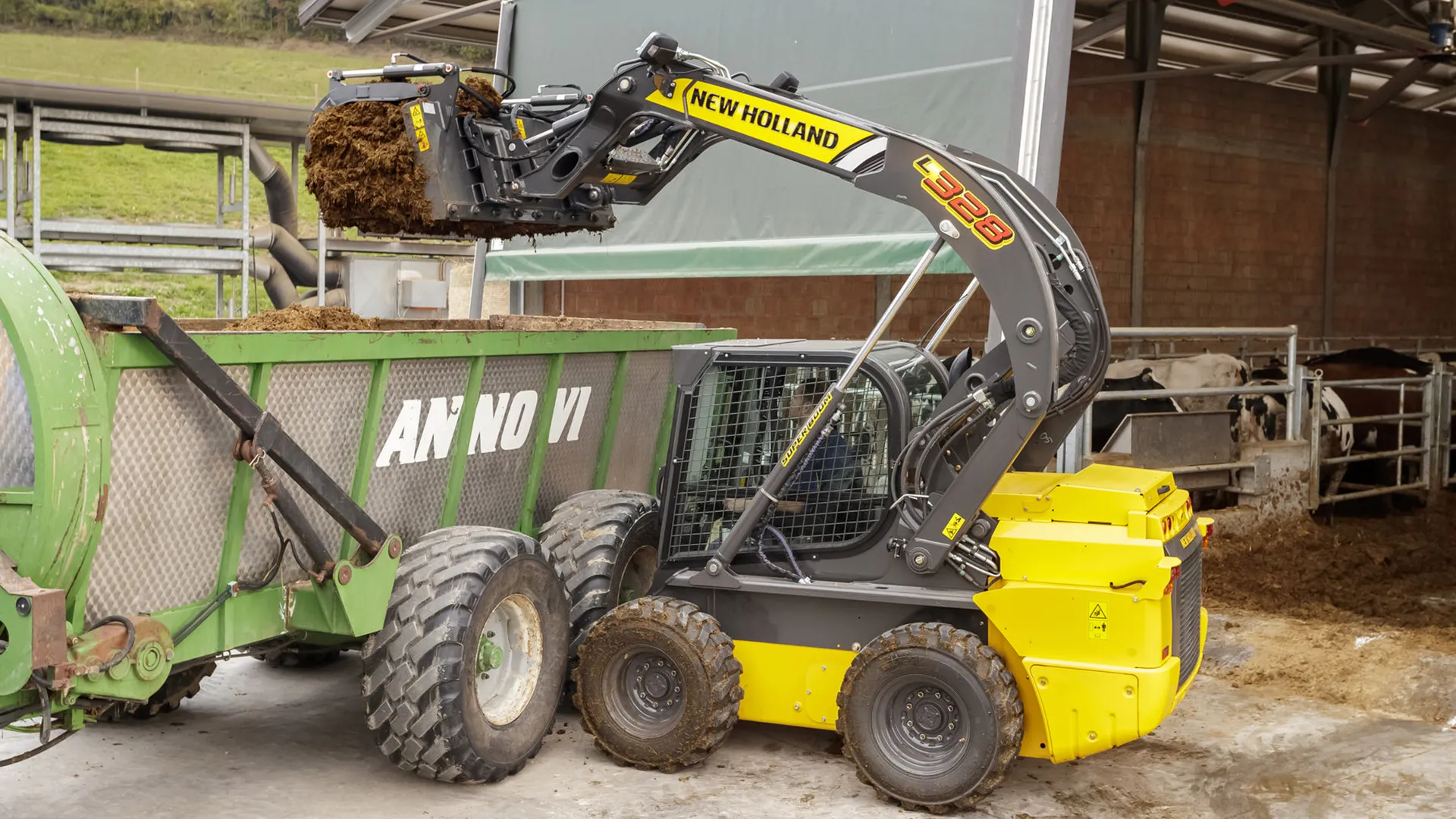

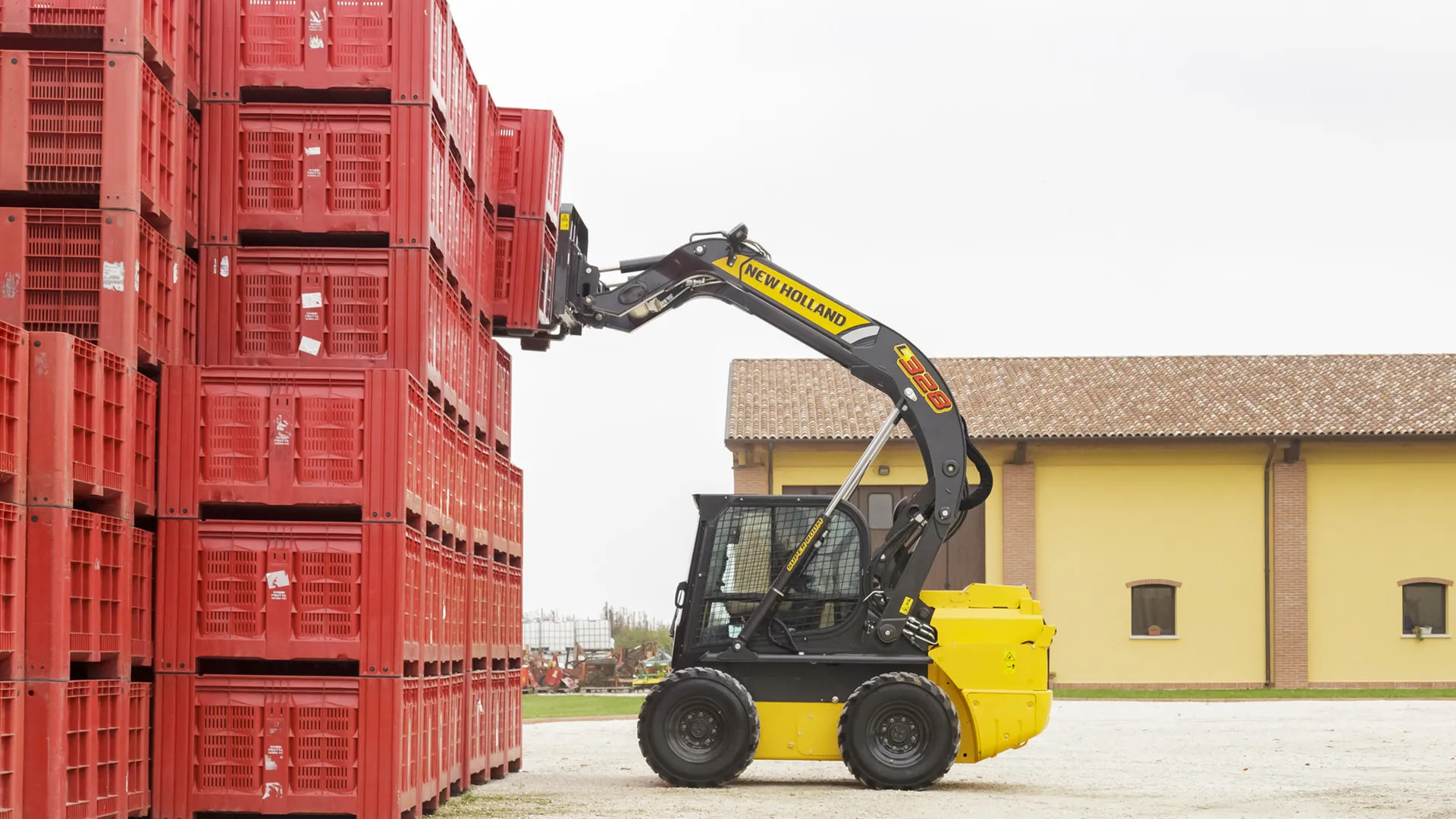

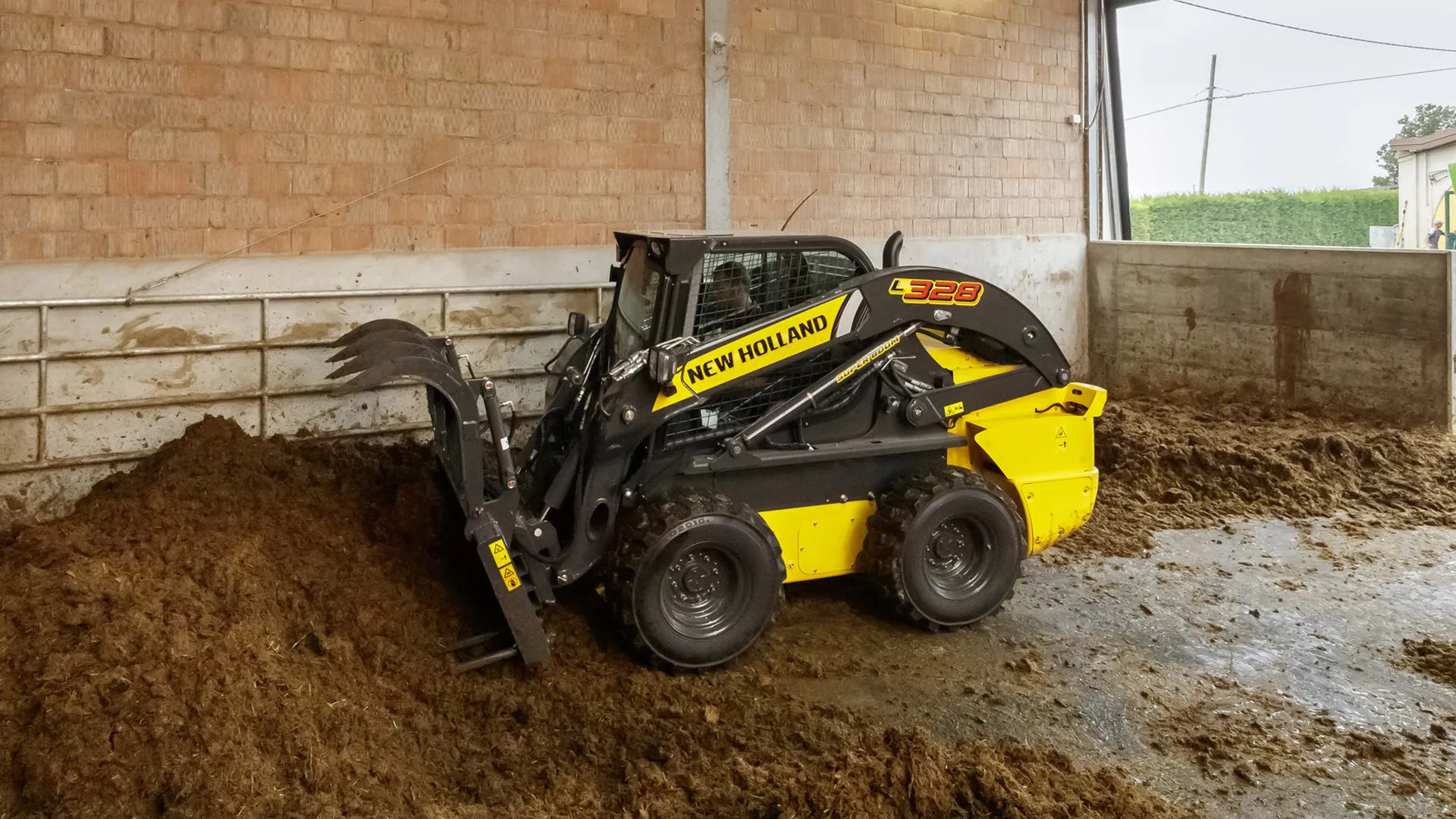

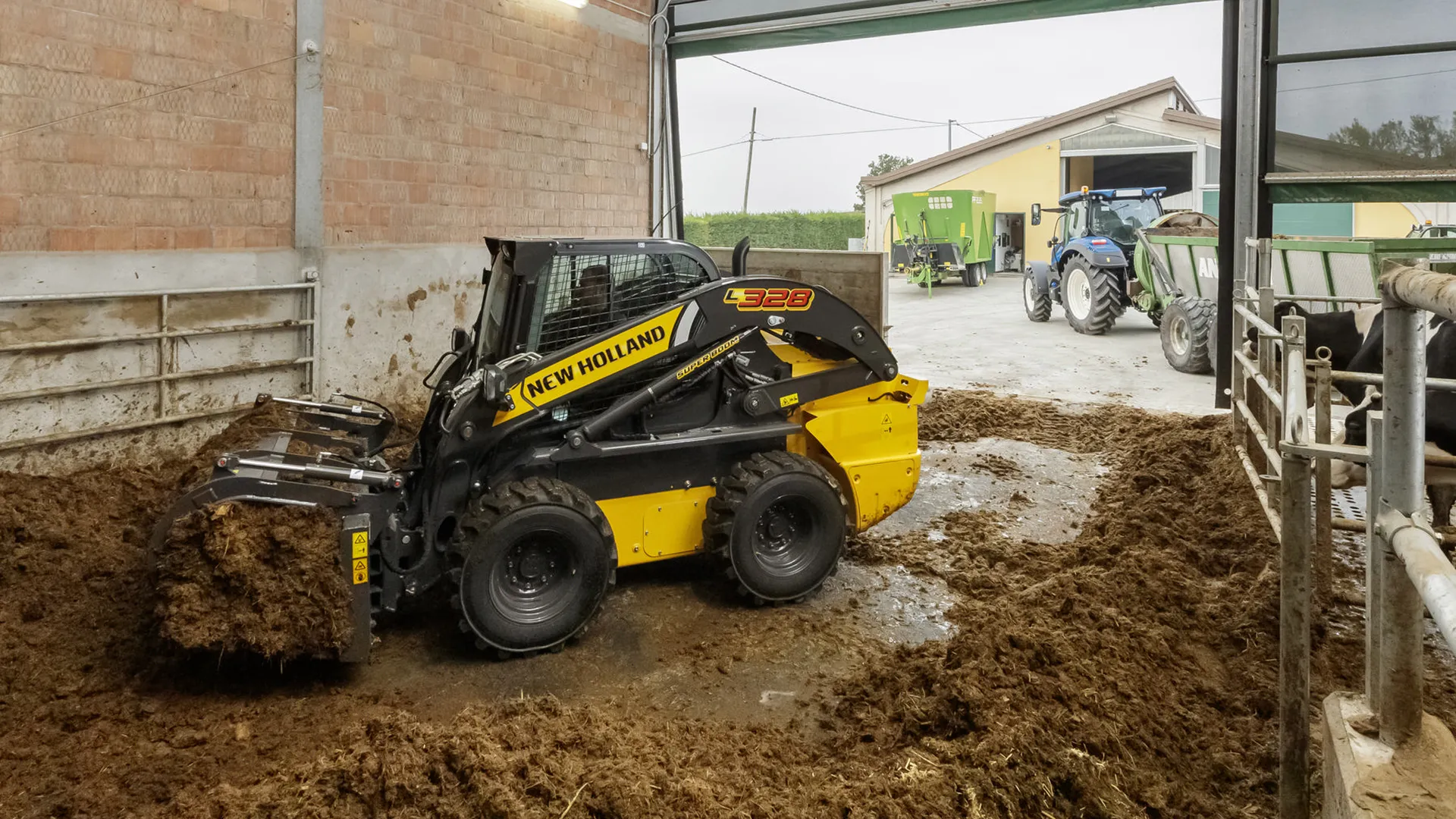

The New Holland 300 Series feature Radial Lift or Super Boom models, to cater for the specific needs of your business. • For loading & lifting the patented vertical lift geometry of the Super Boom system enables operators to load material far beyond the reach and height of most other skid steer loader designs. The exceptional forward reach afforded by this design makes loading bales and reaching over feed barriers an effortless task • For pushing & digging the Radial Lift geometry gives outstanding power through the direct connection of the boom with the frame. Productivity in applications such as manure handling, soil moving and yard scraping is boosted by their outstanding breakout force

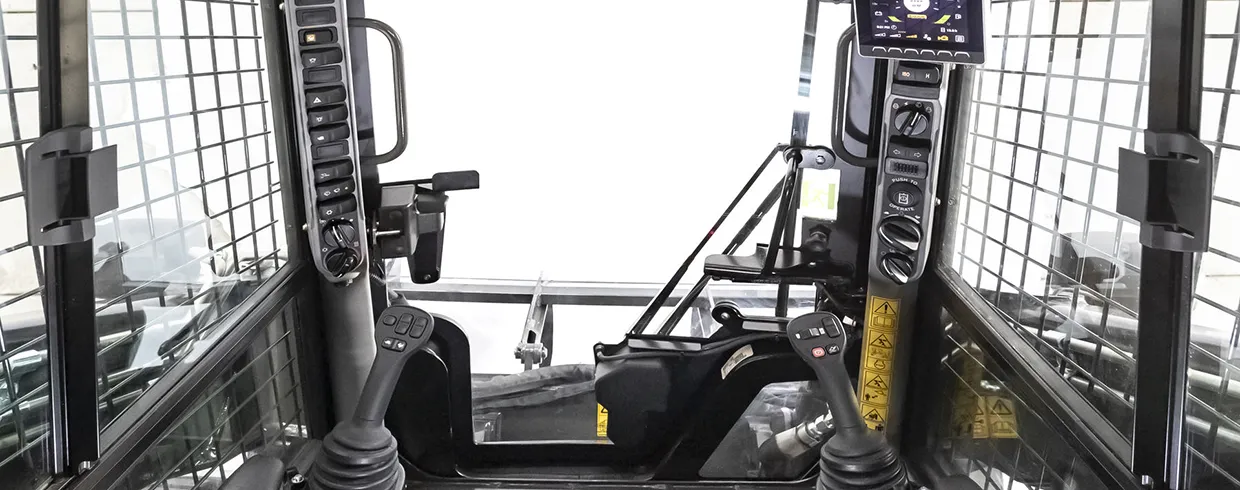

The 300 Series cab is one of the widest in the industry. It’s easy to enter and exit. Full-covering trim absorbs noise. The visibility panel on the cab roof gives you a clear view in all directions, even to the raised bucket or attachments. The fully sealed and pressurized cab minimizes dust and exhaust infiltration. Seat choices include the optional suspension seat or the heated, composite air-ride seat for maximum support and ultimate comfort. An optional, factory-installed lap bar is offered on all models.

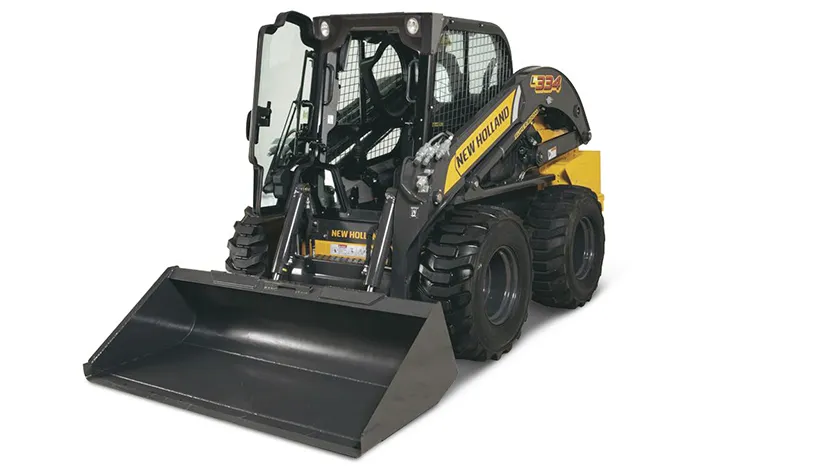

A comprehensive view of the job site makes it easier for you to work productively and safely. The new 300 Series deliver: • Clear and unobstructed view of the attachment and bucket edge • Large visibility panel in the cab roof for a clear view of the attachment at full height • High visibility mesh side screens • Narrow cab pillars to maximize visibility • The fully sealed and pressurized cab minimizes dust and exhaust infiltration • Seat choices include the optional suspension seat or the heated,composite air-ride seat for maximum support • An optional, factory-installed lap bar is offered on all models

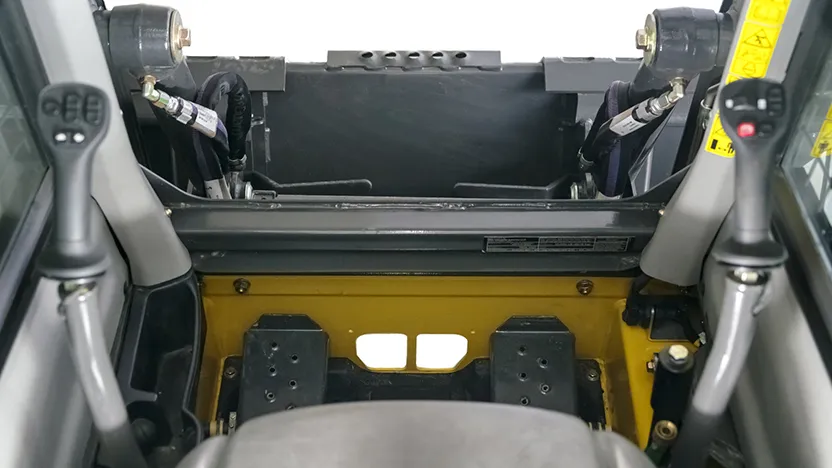

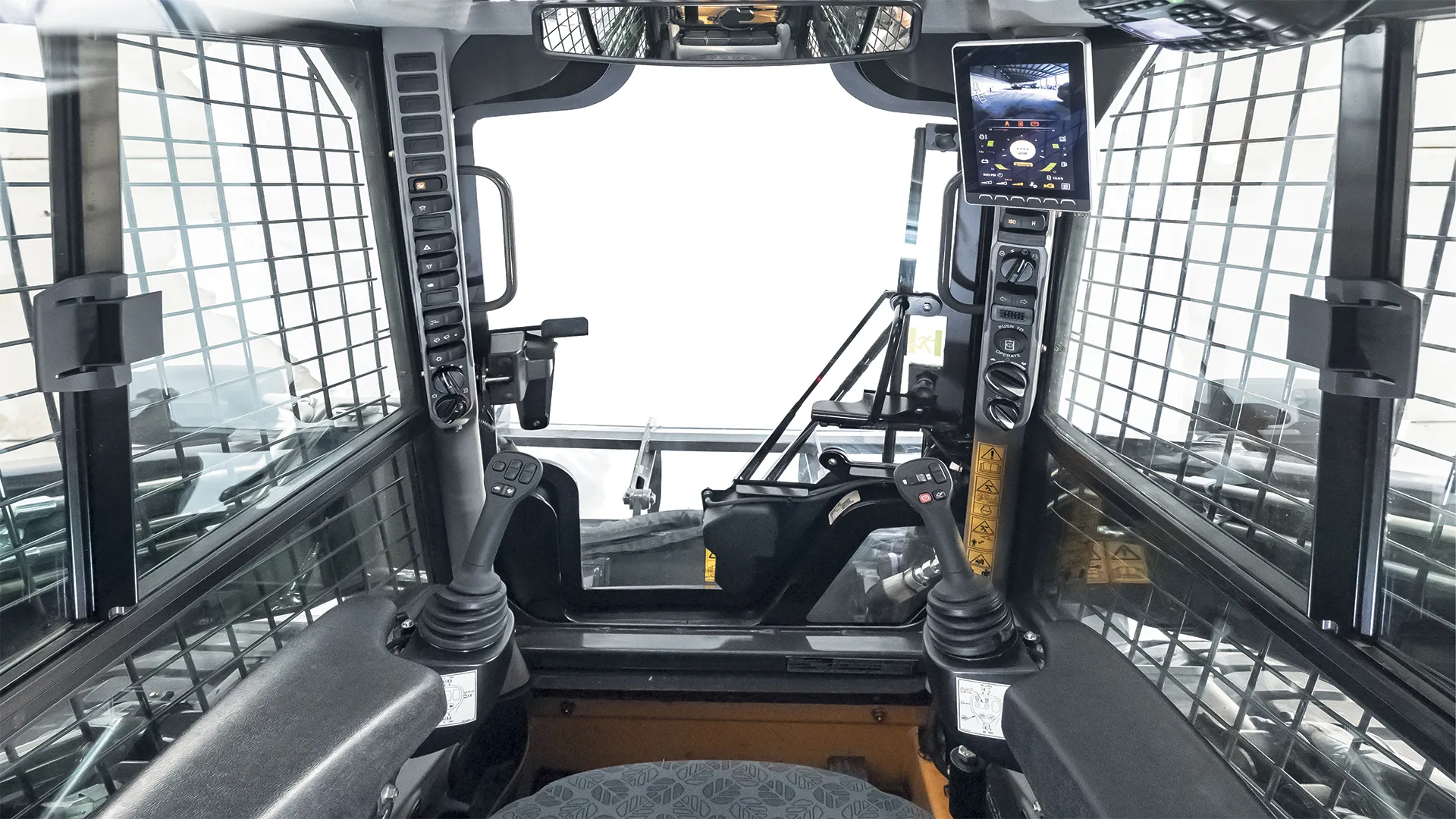

A choice of control style is available: mechanical or electro-hydraulic (EH) controls can be selected. • New, ergonomically designed joysticks allow for a lower-profile control grip and feature soft buttons to reduce thumb fatigue • New pods positioned below the joysticks provide more room between the operator’s knees • Electro-hydraulic controls are switchable between ISO to H pattern • Models built with electro-hydraulic controls feature multiple speed and sensitivity settings, allowing operators to personalize the controls • Electro-hydraulic control mounts feature horizontal and vertical adjustment to suit every operator • Mechanical control models employ hand levers for direction control and foot pedals for boom function

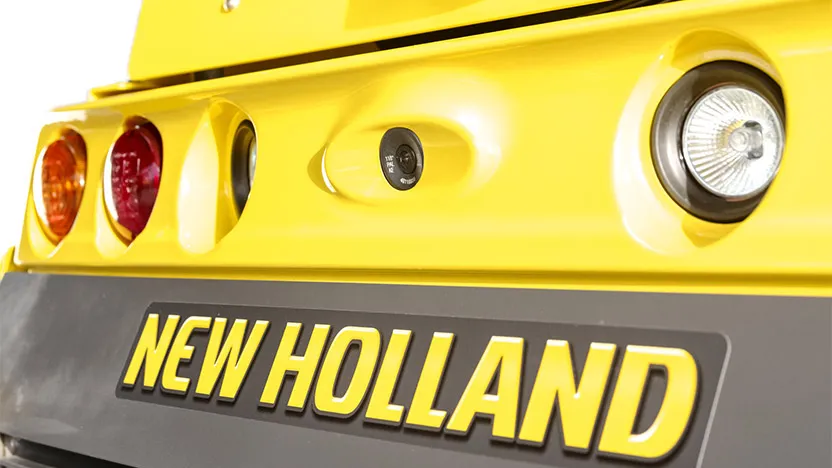

The new 8 inch colour display is available on electro-hydraulic control models, and is mounted to the right hand cab post to display all of your machines working parameters. It is easy to navigate and includes an automatically activated reversing camera for added safety. • Key machine information is displayed such as engine performance information, RPM, fuel level, battery voltage, hydraulic oil temperature, engine temperature, and trip screen • Engine settings menu includes economy mode, engine protection and ignition timeout settings • Electro-hydraulic control settings are easily modified in the relevant menu • The reversing camera can be set to engage automatically in reverse or can be always on • Camera guidance lines can be activated depending on operator preference

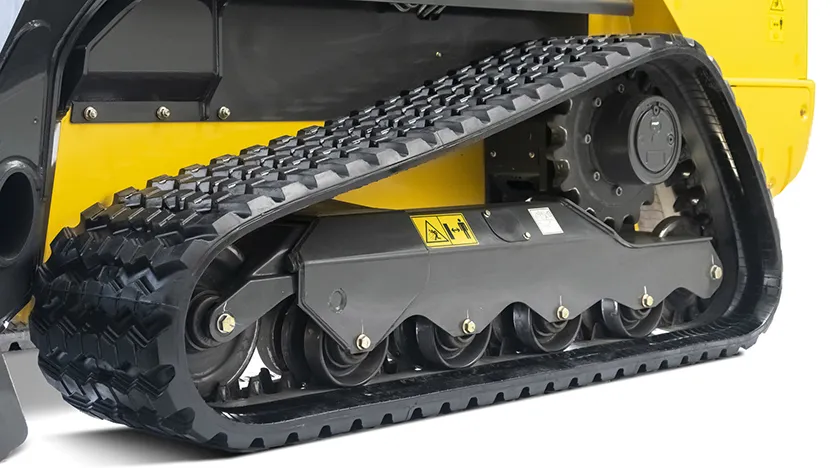

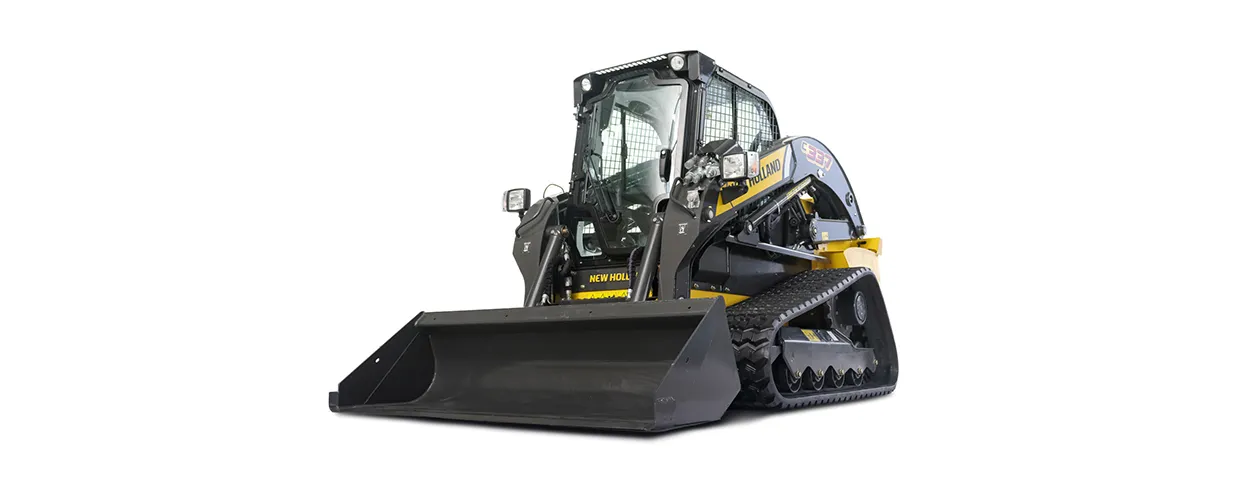

The low-profile track undercarriage on 300 Series compact track loaders eases cleanout, reduces noise and increases durability. It also provides a smoother ride, thanks to steel-embedded tracks rolling on the rubber instead of steel. In addition, fewer moving parts than competitive designs mean less complexity and complications, which adds up to longer track life.

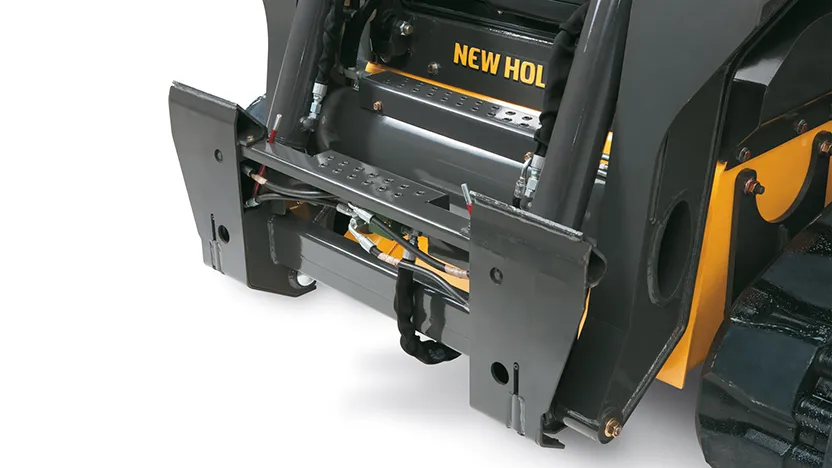

An optional hydraulic attachment coupler increases uptime and productivity on the farm by allowing operators to exchange attachments quickly and safely.

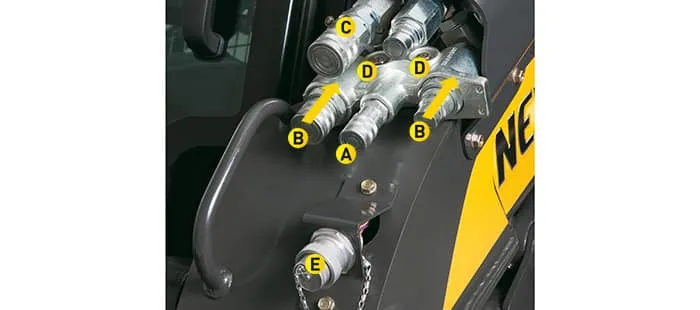

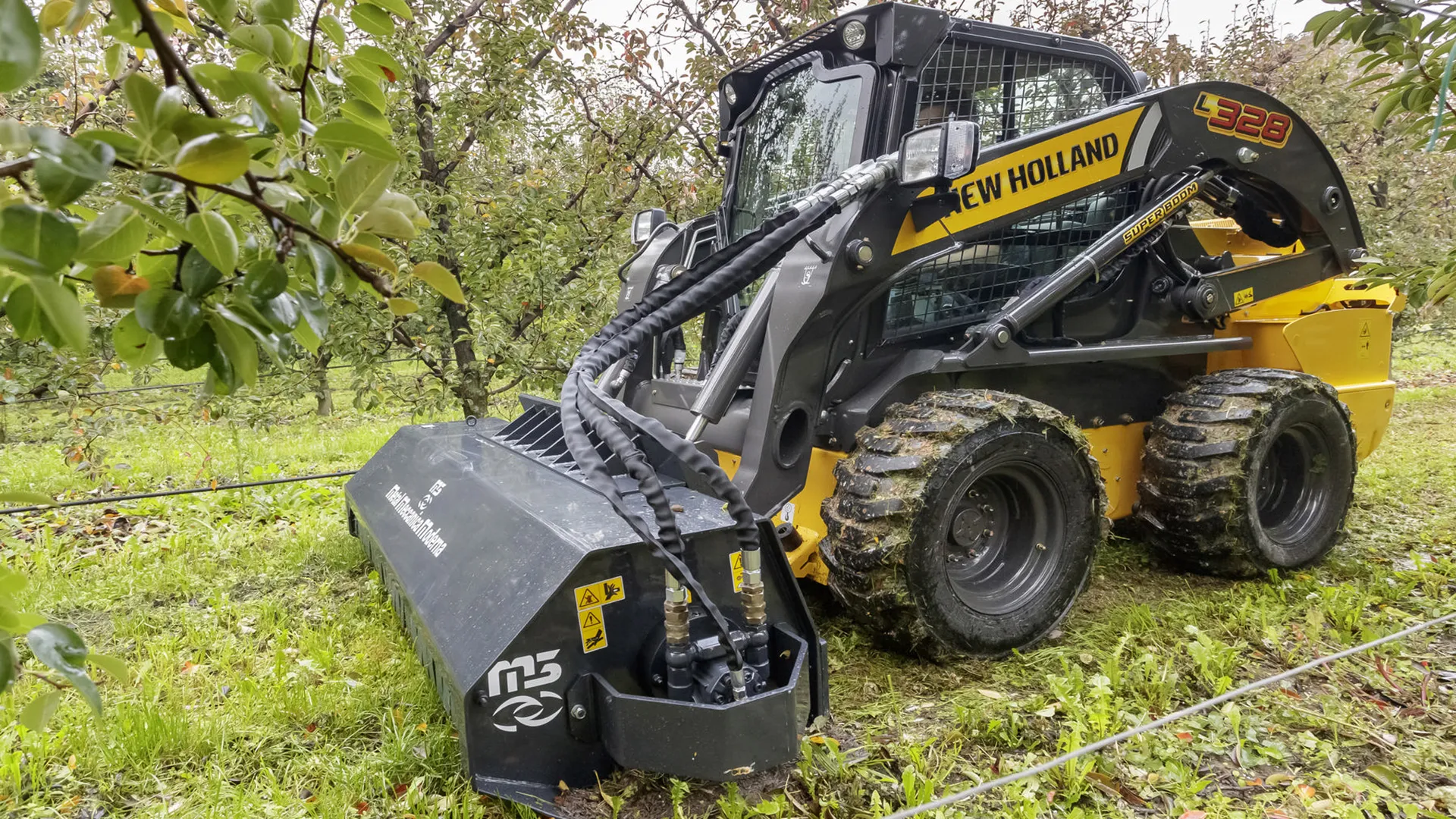

A connect under pressure CUP hydraulic manifold is standard equipment on all models for easy hook-up of all hydraulic attachments. By pushing on the fitting, you release pressure in both hydraulic lines. A Hydraulic oil return (case drain) B Hydraulic oil supply. These fittings slide into manifold and when pressed in, any pressure within the manifold is directed to the hydraulic oil reservoir C Drain line that flows to the tank D Pressure vents E 14-pin front electrical connection to control the most versatile attachments

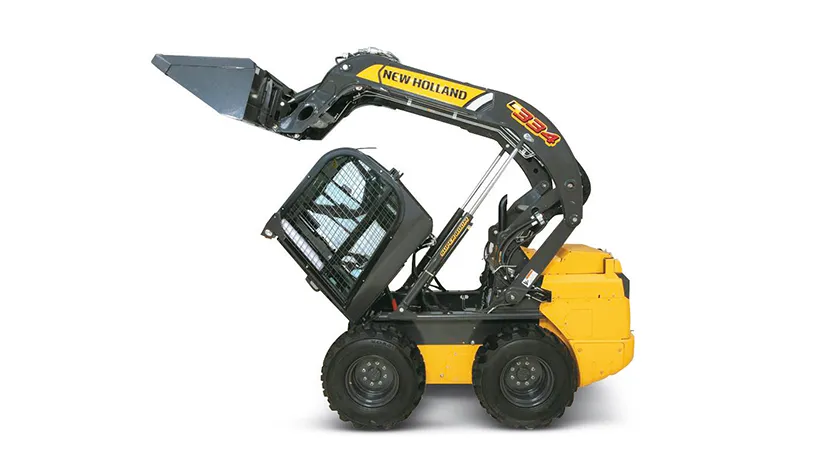

If ever needed, the entire cab can be tilted forward for unrivaled access to components and easy cab cleanout.

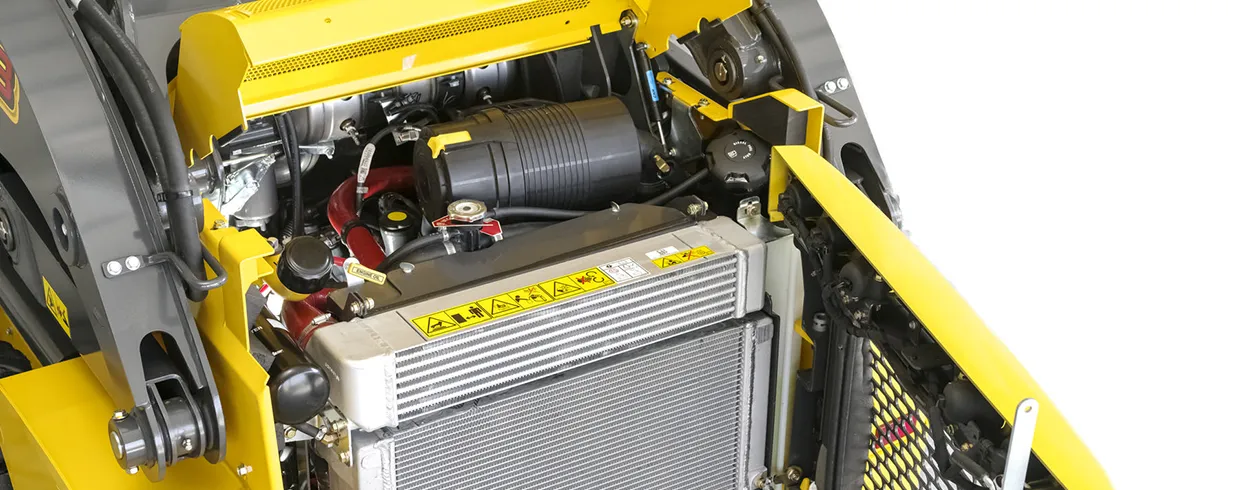

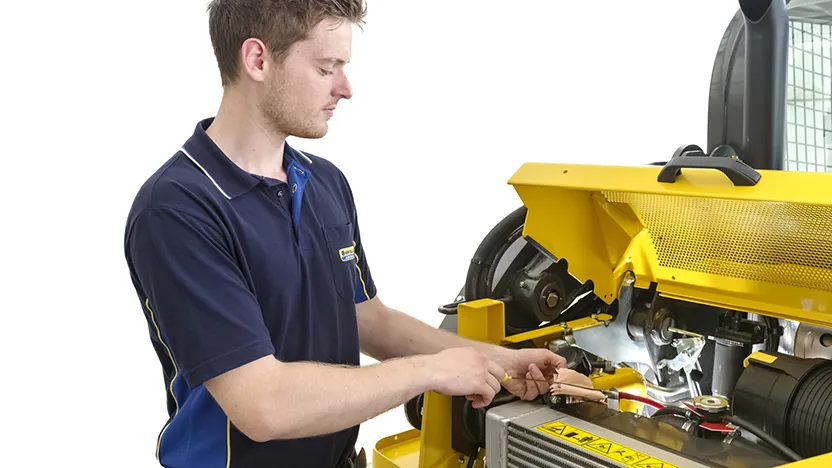

Access engine oil, fuel fill, hydraulic oil, coolant and radiator points without tools, and clean the radiator from either side. Engine oil and filter changes are required every 500 hours, as are changes to the primary fuel filters and hydraulic oil filters.
